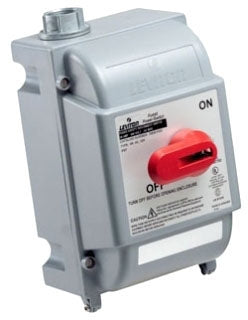

Leviton LDS60-AX 60 Amp Non-Fused PowerSwitch Disconnect Switch 600 Volt NEMA 3R/4/4X/6

Product Description

The Leviton LDS60-AX is a 60 Amp non-fused disconnect switch designed for use in various industrial applications. This product operates at a voltage rating of 600 volts and features a non-metallic enclosure. The switch is suitable for both 1-phase and 3-phase circuits.

• Amperage rating: 60 A
• Voltage rating: 600 VAC
• Non-metallic enclosure type NEMA 3R/4/4X/6/6P/12/13

Product Highlights

This disconnect switch is designed for easy installation with foot mounting and includes a rotary handle for operation. It is CE certified and UL listed, ensuring it meets rigorous safety and performance standards.

Product Information

Standard Information

• Manufacturer: Leviton
• Catalog Number: LDS60-AX

Technical Specifications

• Amperage Rating: 60 A
• Voltage Rating: 600 VAC
• Horsepower Rating: 10 HP at 240 Volt AC
• Type: Non-Fused Non-Metallic
• Operating Temperature: -40 to 75 degrees Celsius
• Short Circuit Current Rating: 100 kA
• Enclosure Material: Non-Metallic
• Country of Origin: Mexico
