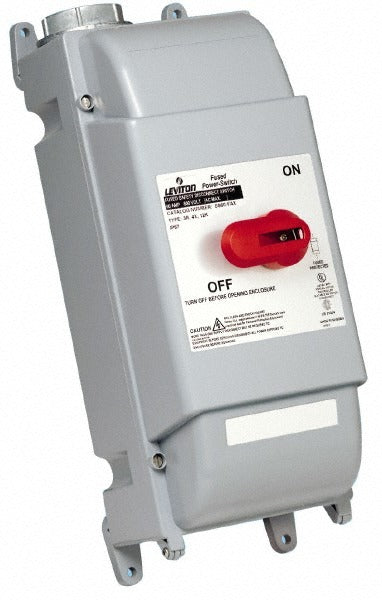

Leviton LDS30-FAX Cam Disconnect Switch 30A 600V 3ph

Product Description

The LEVITON LDS30-FAX is a fused, enclosed cam disconnect switch rated for 30 amps at 600 volts across 3 phases. It is designed to provide a safe, lockable means of disconnecting power to industrial and commercial electrical equipment. The switch carries a NEMA 4X and IP67 enclosure rating, making it resistant to corrosion, dust, and water ingress. With a 3-pole configuration and a 20 horsepower rating at 600 volts on 3-phase service, this disconnect is suited for motor and equipment branch circuits where fused protection and weathertight housing are required. Licensed electricians and industrial maintenance technicians are the primary installers of this device.

This disconnect switch is built for heavy-duty applications in industrial plants, commercial facilities, and outdoor installations where exposure to moisture, washdown conditions, or corrosive environments is a concern. The NEMA 4X rating makes it appropriate for food processing, chemical handling, wastewater treatment, and similar demanding environments. It provides both disconnecting and overcurrent protection in a single enclosed assembly, simplifying panel layouts and meeting branch-circuit disconnect requirements in commercial and industrial settings.

Key Features

• 30-amp, 600-volt rating supports a wide range of 3-phase motor and equipment loads
• Fused design provides integrated overcurrent protection at the disconnect point
• NEMA 4X and IP67 enclosure rating resists corrosion, dust, and water ingress
• 3-pole, 3-phase configuration rated up to 20 horsepower at 600 volts
• CSA Certified, cULus Listed, and UL Listed for compliance with major North American standards

Compatibility

Designed as an OEM-style fused cam disconnect switch for 3-phase branch circuits requiring a NEMA 4X enclosed disconnect rated at 30 amps and 600 volts.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the upstream supply circuit before beginning any wiring connections. Verify that fuse ratings match the load requirements before energizing the switch. The enclosure must be properly sealed after installation to maintain the NEMA 4X and IP67 ingress protection ratings.
