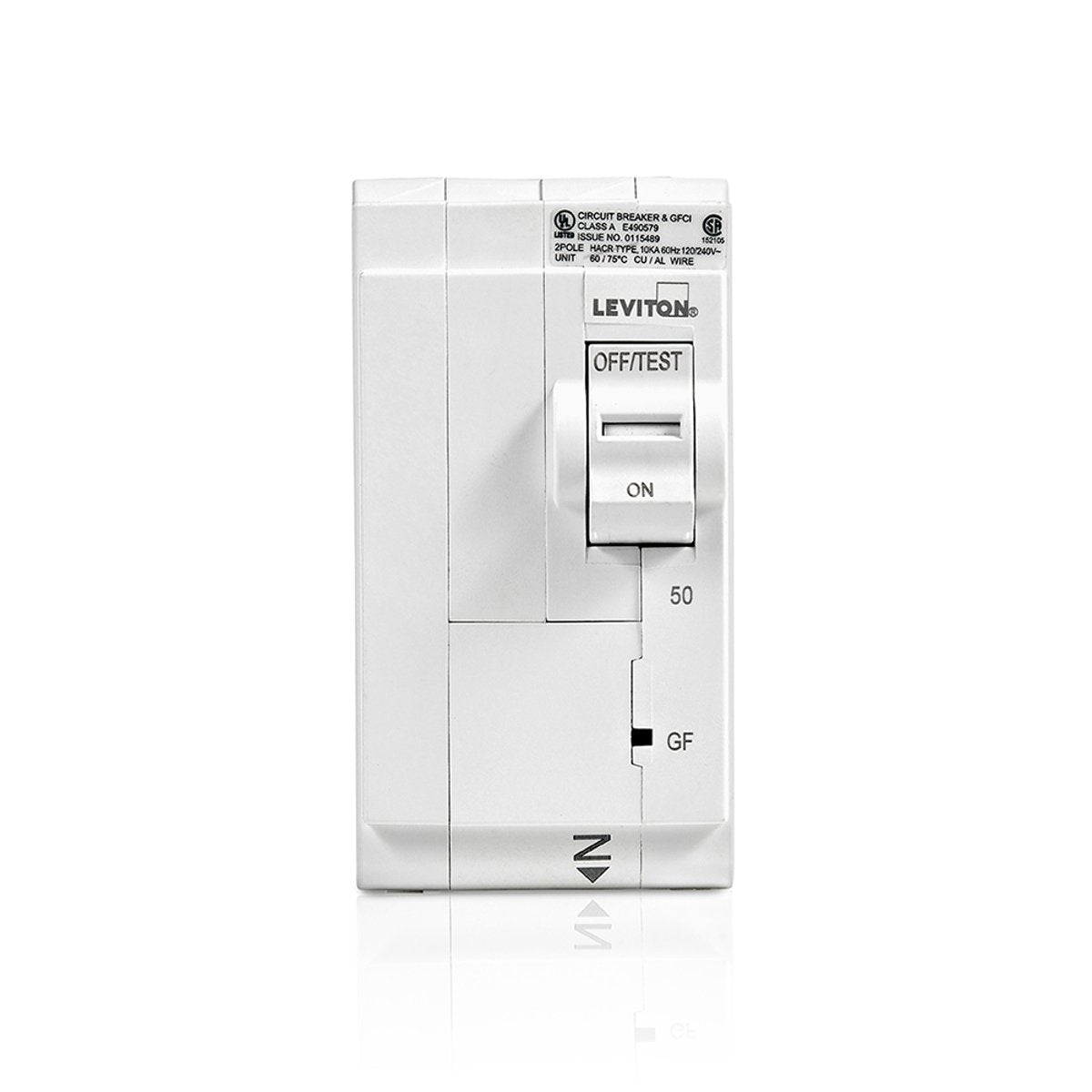

Leviton LB250-G 50A 2-P GFCI BRKR 120/240V AC/CA MAX HM

Product Description

The Leviton LB250-G is a circuit breaker designed for ground fault protection. This device operates at fifty amps and is compatible with voltage ratings of one hundred twenty, two hundred eight, and two hundred forty volts AC. It features a hydraulic magnetic trip system for precise operation.

• Amperage rating of 50 A
• Environmentally safe operational range from -40 to 85 degrees Celsius
• Two-pole configuration suitable for residential and commercial use

Product Highlights

The LB250-G circuit breaker offers reliability and efficient protection against ground faults, ensuring safer electrical installations.

Product Information

Standard Information

• Catalog Number: LB250-G
• Manufacturer: Leviton

Technical Specifications

• Amperage Rating: 50 A
• Dimensions: 3.9 inches W x 2.0 inches H x 3.1 inches D
• Number of Poles: 2
• Series: LB Series
• Temperature Rating: -40 to 85 degrees Celsius
• Trip Type: Hydraulic Magnetic
• Type: Ground Fault
• Voltage Rating: 120, 208, 240 VAC
