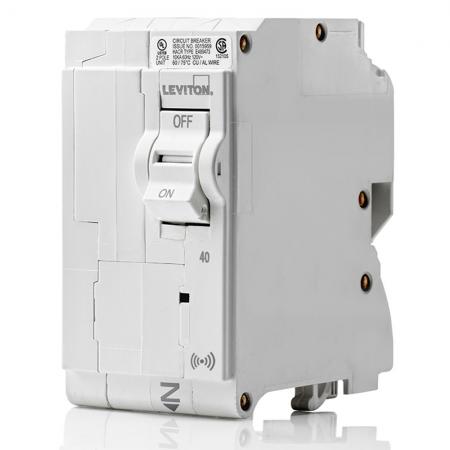

Leviton LB240-S Smart Branch Circuit Breaker, 40A 120/240V 10KA Interrupt

Product Description

The Leviton LB240-S is a Smart Standard Branch Circuit Breaker designed for residential and commercial applications. It operates at 120/240 VAC with a 40 A current rating and features a 10 kA interrupt capacity. The hydraulic magnetic trip mechanism enhances circuit protection and reliability.

• Smart - Wi-Fi or Ethernet connection options for remote monitoring.
• Intuitive - Single app control via My Leviton for easy management.
• Plug-On connection for easy installation.

Product Highlights

This circuit breaker simplifies installation by allowing all wiring to be done at rough-in. It is compliant with UL 489 and CSA C22.2 standards.

Product Information

Standard Information

• Manufacturer: Leviton
• Catalog Number: LB240-S

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 40 A
• Interrupt Rating: 10 kA
• Number of Poles: 2
• Trip Type: Hydraulic Magnetic
• Temperature Rating: -40 to 85 degrees C
• Dimensions: 3.9 inches L x 2.0 inches W x 3.1 inches H
