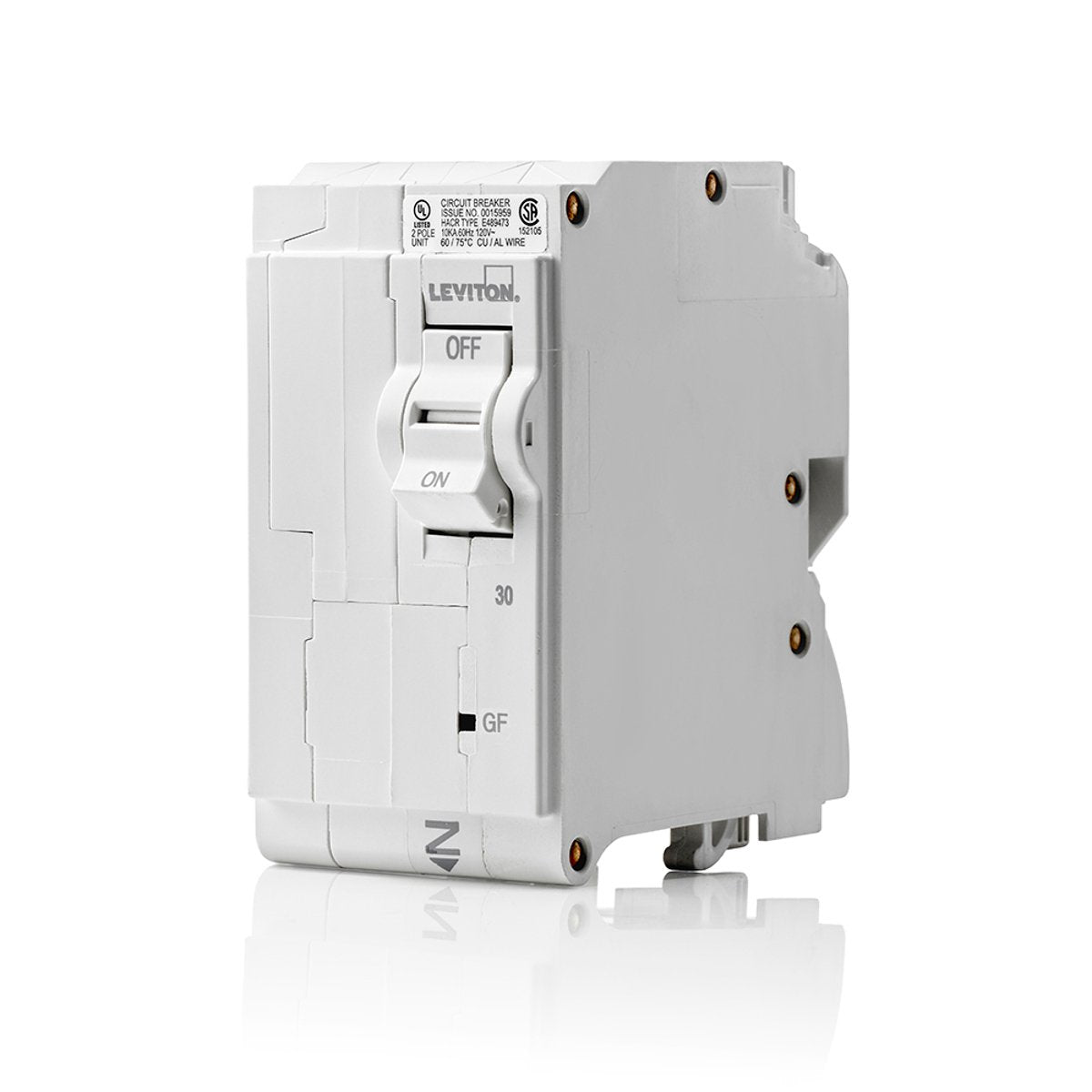

Leviton LB230-GF Branch Circuit Breaker GFCI 30A 120/240V 10KA

Product Description

The Leviton LB230-GF is a branch circuit breaker designed for use in residential and commercial applications. This breaker operates at 120/240 VAC with a 30 amp rating and has a 10 kA interrupt capacity. It features a hydraulic magnetic trip mechanism for reliable operation. The plug-on design allows for easy installation without the need for additional wiring to the circuit breaker.

• Simple plug-on installation
• Advanced trip technology for safety
• LED indicator for operational status

Product Highlights

This line of circuit breakers provides overload and short circuit protection. The GFCI technology adds improved electrical shock protection.

Product Information

Standard Information

• Brand: Leviton
• MPN: LB230-GF

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 30 A
• Interrupt Rating: 10 kA
• Trip Type: Hydraulic Magnetic
• Number of Poles: 2
• Operating Temperature: -40 to 85 degrees Celsius
• Dimensions: three point nine inches H x two inches W x three point one inches D
• Mounting Type: Plug-On
