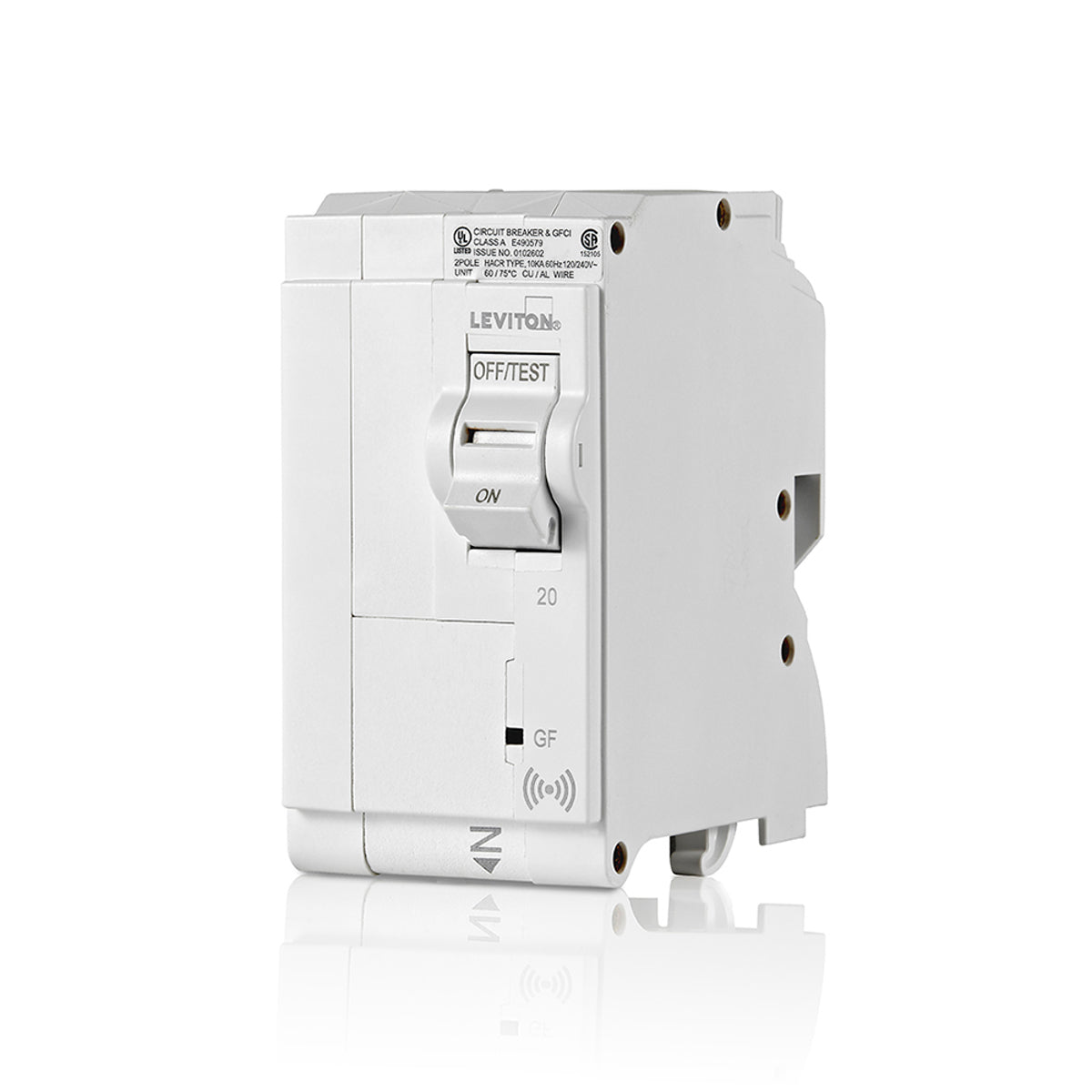

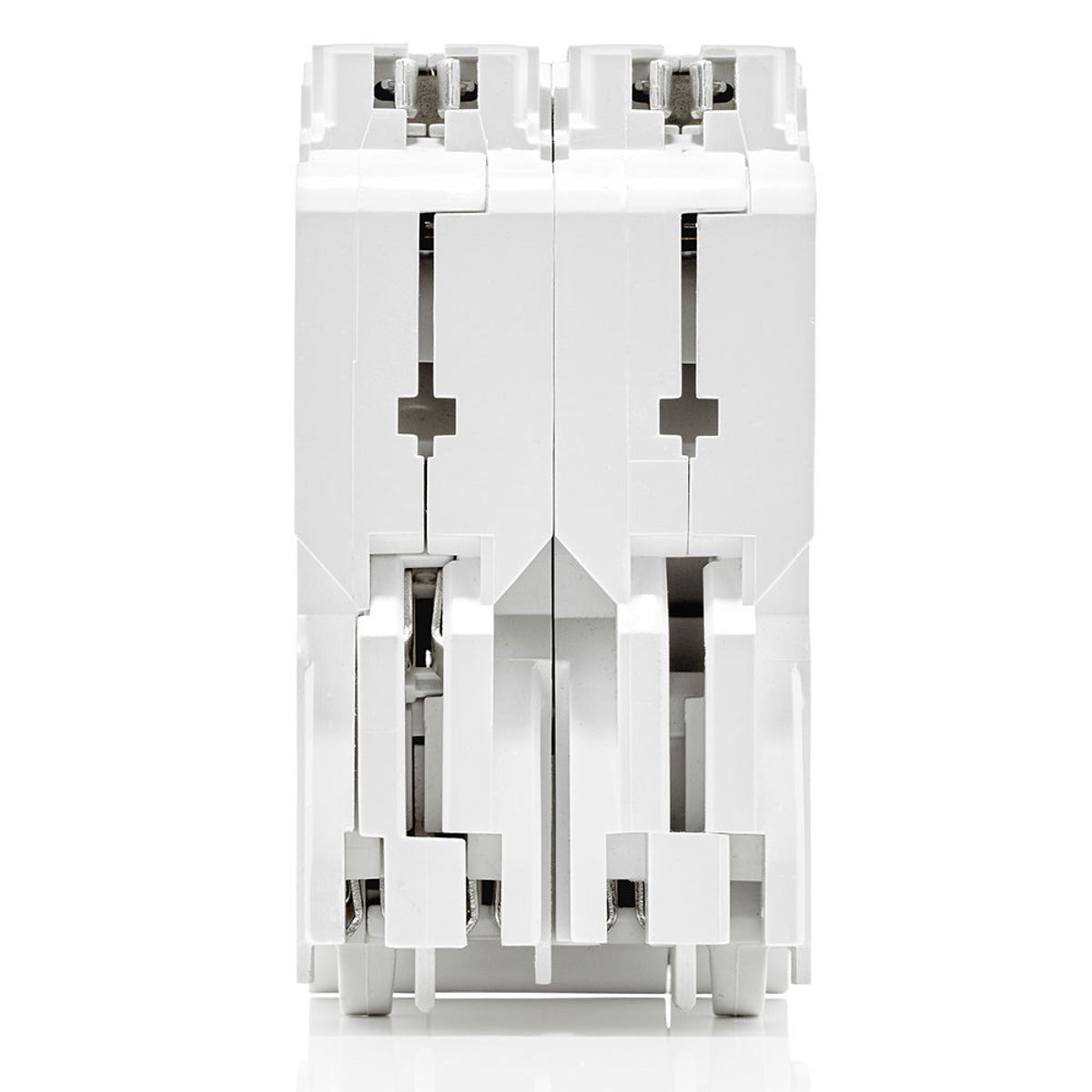

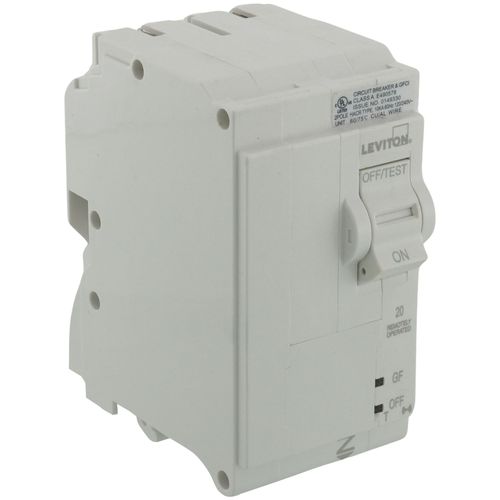

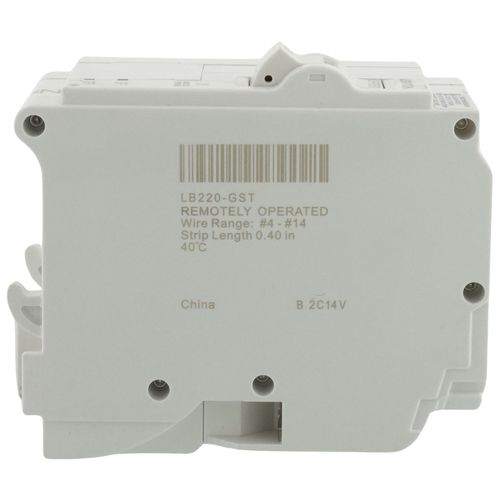

Leviton LB220-GS Smart Branch Circuit Breaker, GFCI 2-Pole 20A 120/240V, 10KA Interrupt Rating

Product Description

The LEVITON LB220-GS is a smart branch circuit breaker, GFCI 2-pole 20A 120/240V with a 10KA interrupt rating. This smart circuit breaker provides insightful data on home energy consumption and enhanced safety. Suitable for residential and commercial applications. It features patented reset lockout technology and will not reset if ground or arc fault protection is compromised.

• Smart, GFCI
• Integrated with the My Leviton app
• Revolutionary design allows the entire Load Center to be wired at rough-in without any circuit breakers present

Product Highlights

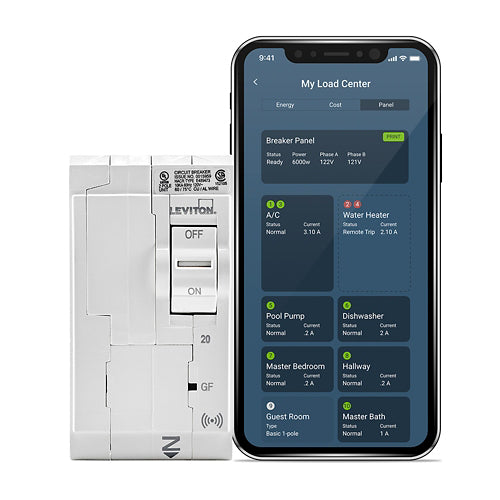

The LEVITON LB220-GS smart circuit breaker provides remote monitoring and tripping capabilities. It communicates with the My Leviton app to provide real time operating status.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: LB220-GS
• Country of Origin: China

Technical Specifications

• Catalog Number: LB220-GS
• Manufacturer: Leviton
• Brand: Leviton
• Application: Residential, Commercial
• Current Rating: 10 KA
• Mounting: Plug In
• Number of Poles: 2
• Special Features: Smart, GFCI
• Standard: UL489, CA-C22.2
• UPC: 078477815328
• GTIN: 00078477815328
• Item Type: Circuit Breaker
• Length: 3.9
• Length UOM: Inch
• Width: 2.0
• Width UOM: Inch
• Height: 3.1
• Height UOM: Inch
• Operating Temperature: -40C TO 85C
• Voltage Rating: 120/240
• Amperage Rating: 20 A
• Connection Type: Plug-On
• Interrupt Rating: 10 kA
• Phase: 1
• Temperature Rating: -40 to 85 deg C
• Trip Type: Hydraulic Magnetic
• Type: Ground Fault Smart GFCI
• AC Voltage Rating [Specifications]: 120/240V AC
• Terminal Connection [Specifications]: Plug-On
• Circuit Breaker Type [Specifications]: Fault Current Controller
• Poles: 2
• Amperage: 20
• Features: Short-Circuit Protection, Arc Fault Protection, Overload Protection
• Product Type: Circuit Breaker
• Wiring: All Plug-on
• Smart: Yes
• CSA-C22.2 No. 5-02: Yes
• EMC Compatibility: Yes
• FCC: Yes
• RoHS: Yes
• UL 489: Molded Case Circuit Breakers
• Part Number: LB220-GS
• Model: LB220-GS
• Depth: 3.1"
• Input Voltage: 120V, 240V AC
