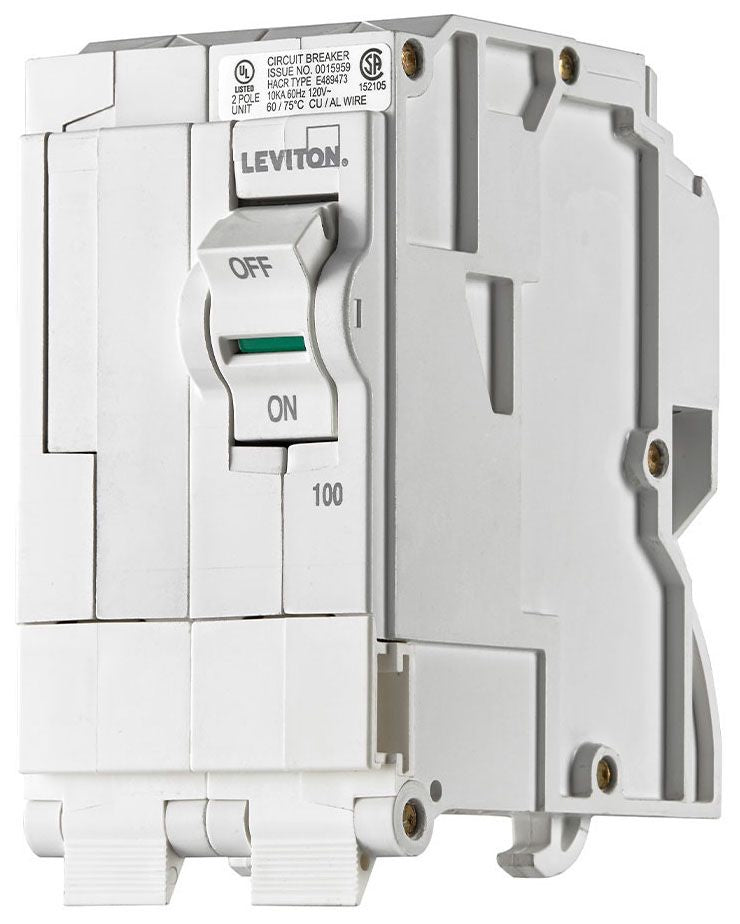

Leviton LB200 Circuit Breaker 120/240VAC 100A

Product Description

The Leviton LB200 is a circuit breaker designed for 120/240 volt applications. This breaker features a current rating of one hundred amps and has a ten kiloamp interrupt rating. It includes a hydraulic magnetic trip mechanism and operates with two poles. The plug-on mounting makes installation straightforward.

• Current rating: 100A
• Voltage rating: 120/240 VAC
• Interrupt rating: 10 kA

Product Highlights

This breaker provides reliable overload and short circuit protection. The design facilitates quick installation and reduces wiring time during panel setup, allowing for smooth operation and minimal complications.

Product Information

Standard Information

• Brand: Leviton
• MPN: LB200

Technical Specifications

• Type: Hydraulic-Magnetic Trip, Standard
• Mounting Type: Plug-On
• Amperage Rating: 100 A
• Voltage Rating: 120/240 VAC
• Dimensions: 3.9 in H x 2 in W x 3.1 in D
• Number of Poles: 2
• Temperature Rating: -40 to 85 deg C
• Approval: UL 489, CSA C22.2, FCC
