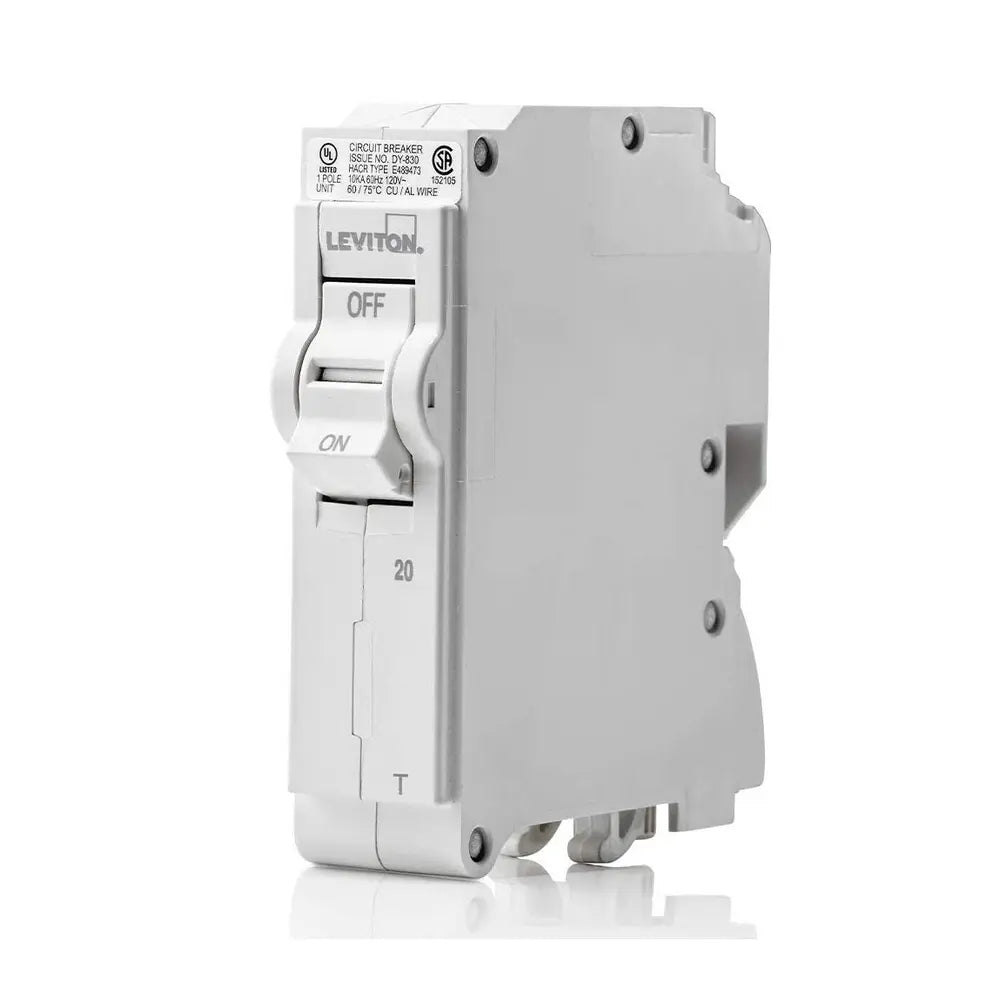

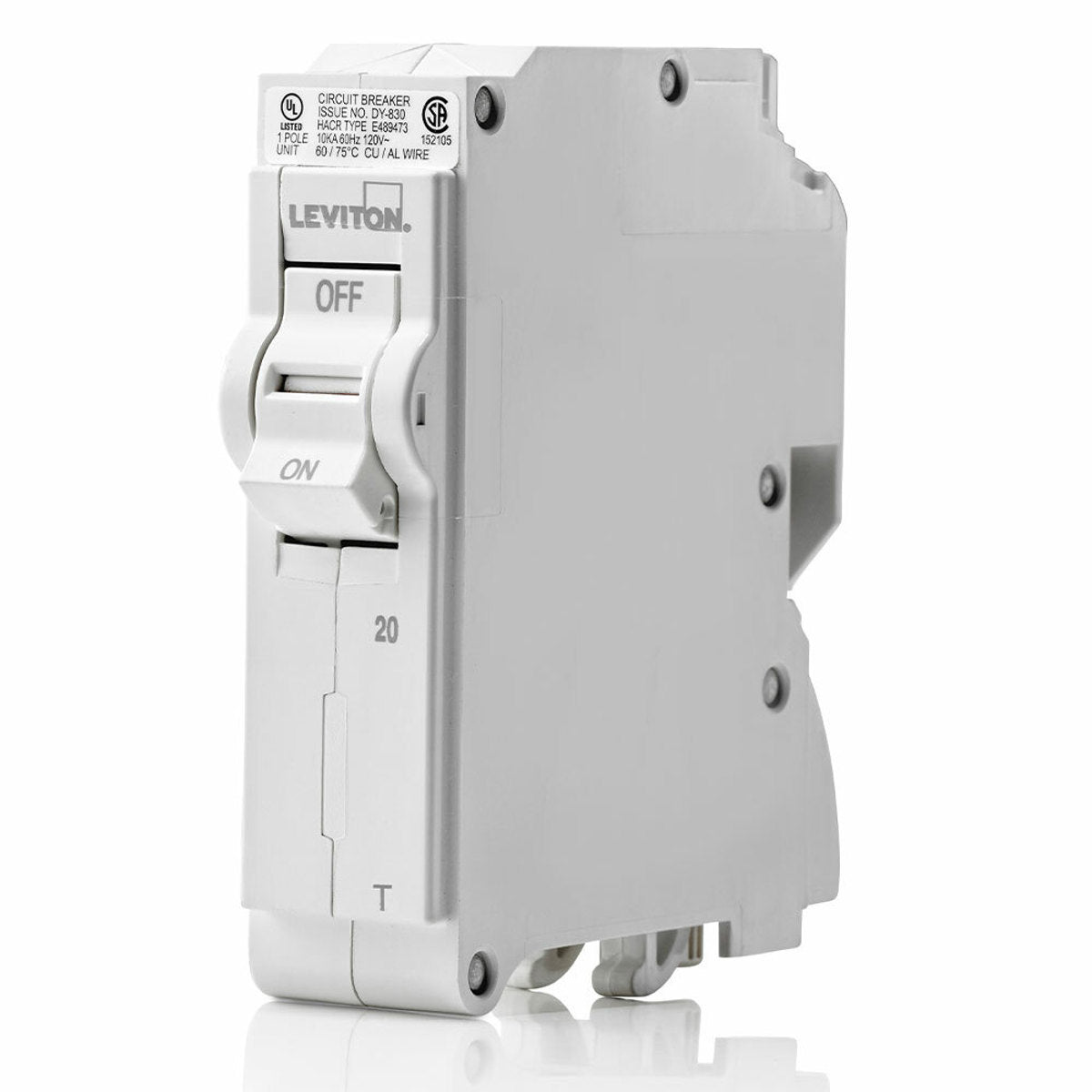

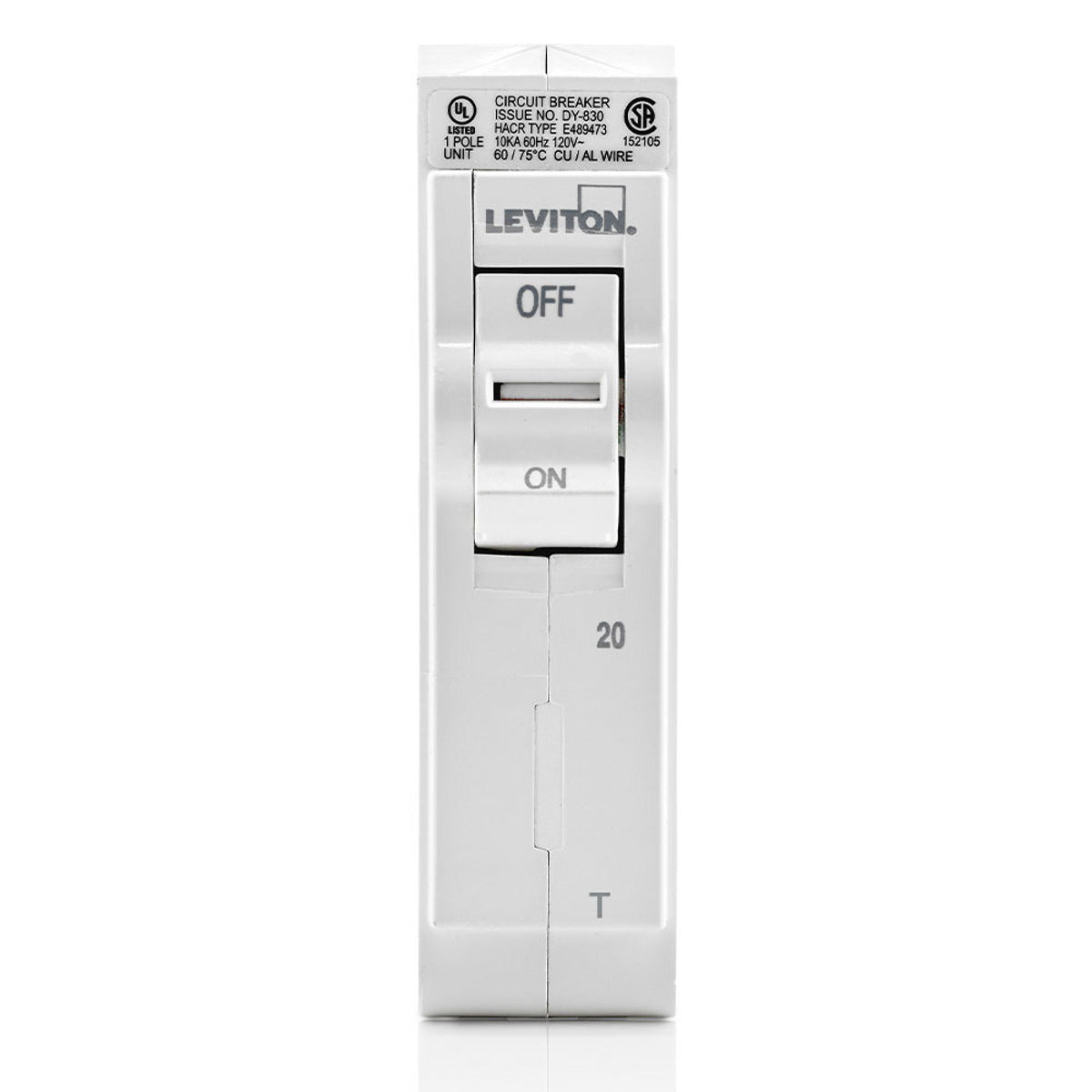

Leviton LB120-T Breaker Ckt 120Vac 20A 10Ka 1 Thrm Mag

Product Description

The Leviton LB120-T standard circuit breaker operates at 120 VAC, 20 A, with a 10 kA interrupt rating and thermal magnetic trip. It features a 1 pole rocker handle actuator and plug-on connection. Dimensions are 1 in W x 3.1 in D x 3.9 in H. Designed for fast installation with an all plug-on design.

• Features an all plug-on design - no wiring to the circuit breaker
• Color indicators in the handle to easily see operational status at a glance
• Contemporary aesthetic and rocker style handle are more user friendly

Product Highlights

Leviton circuit breakers are fast to install with an all plug-on design. Intuitive diagnostics such as LEDs indicate fault type and color indicators display operational status.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: LB120-T
• Country of Origin: China

Technical Specifications

• Trip Type: Thermal Magnetic
• Manufacturer: LEVITON
• Actuator Type: Rocker Handle
• Voltage Rating: 120 VAC
• Amperage Rating: 20 A
• Connection Type: Plug-On
• Number of Poles: 1
• Interrupt Rating: 10 kA
• Temperature Rating: 77 to 104 deg F
• Depth: 3.1 Inches
• Width: 1 Inches
• Height: 3.9 Inches
• Material: Thermoplastic
• Standard: UL, CSA
• Mounting Type: Panel Mount
• Country of Origin: China
• Application: For outdoor load center applications
• Standards/Approvals: CSA-C22.2 File No. 5-02|EMC Compatible|FCC Certified|HACR Certified|UL File No. 489
• Operating Temperature: 40 00b0C (104 00b0F)
• Maximum Amperage (A): 20 A
• Current Rating: 20 Amps
• Circuit Breaker Type: Standard
• Number of Throws: 1
• Suitable For: Wall, Interior
• Tripping Characteristics: Type A
• Current Type: AC
• Breaker Technology: Thermal Magnetic
• Pole: 1
• Short Circuit Current Rating: 10 KA
• Wiring: All Plug-on
• EMC Compatibility: Yes
• FCC: Yes
• RoHS: Yes
• UL 489: Yes
• Model: LB120-T
