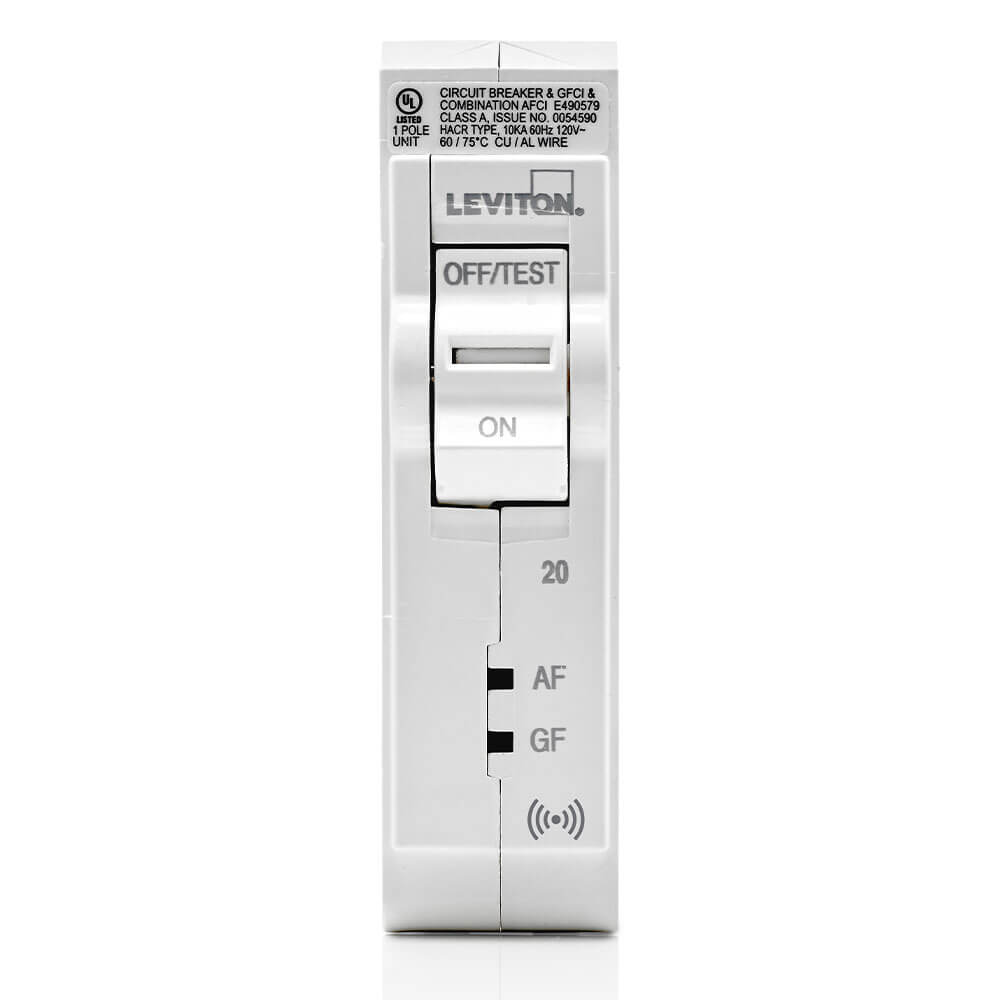

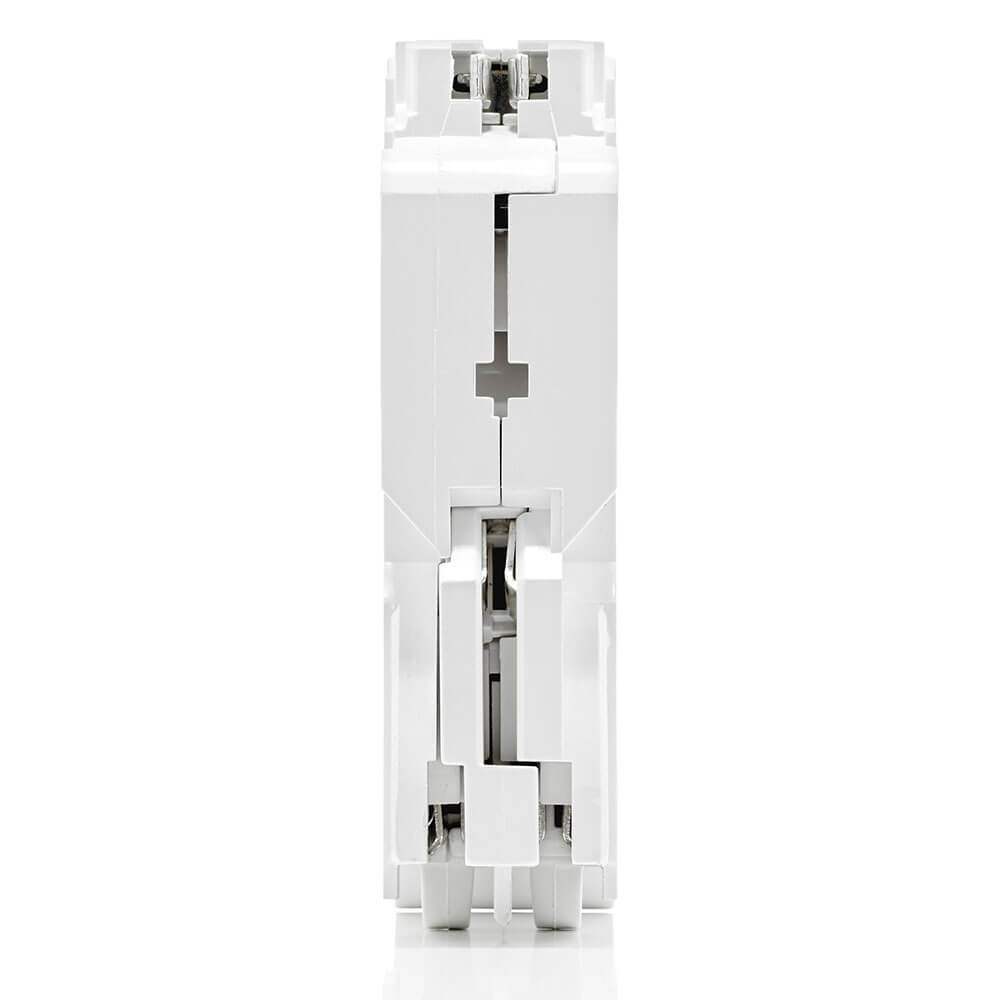

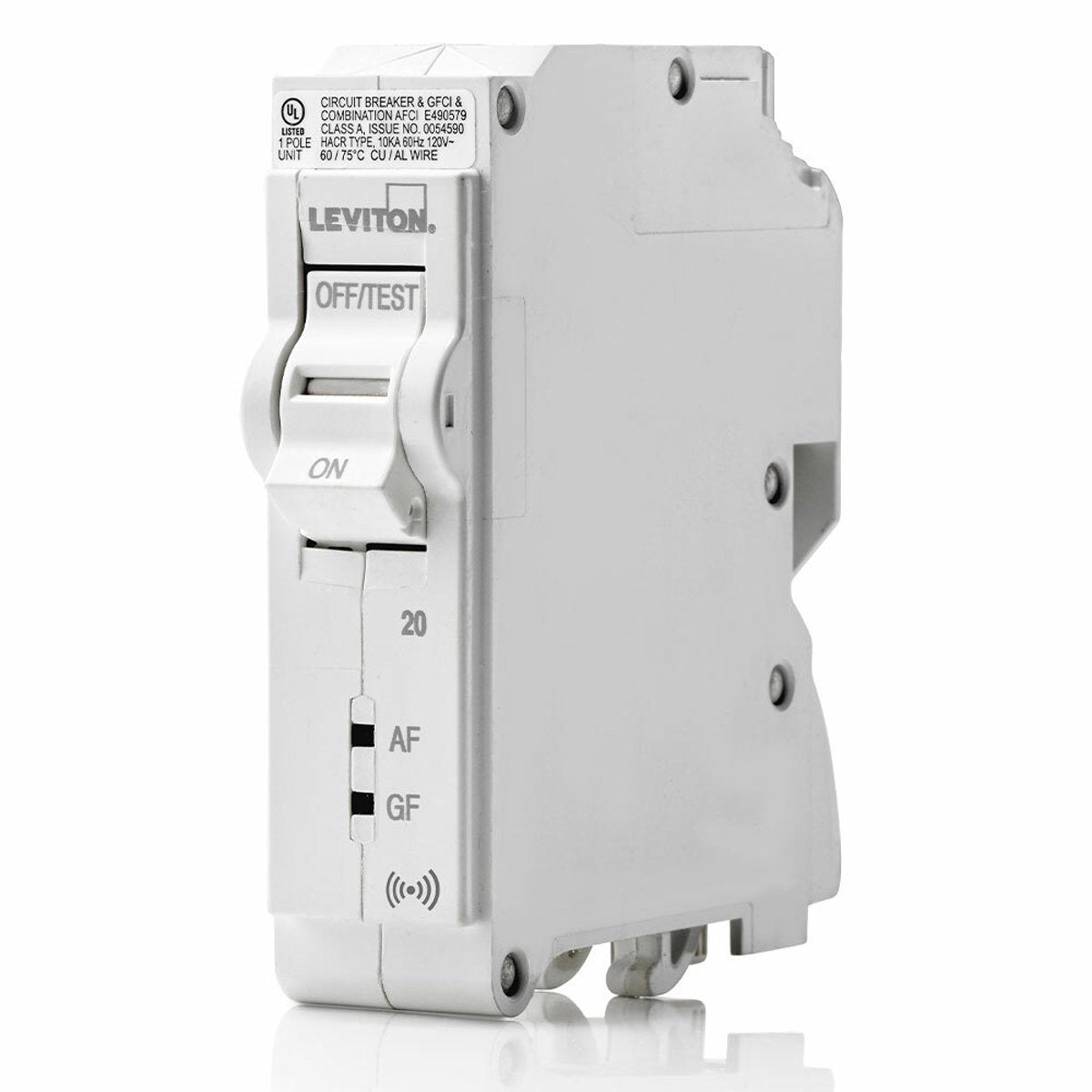

Leviton LB120-DS 20A 1-Pole Smart AFCI/GFCI Hydraulic Magnetic Branch Circuit Breaker 120V

Product Description

The Leviton LB120-DS is a 20 Amp, 120 Volt, 1-Pole Smart AFCI/GFCI Hydraulic Magnetic Branch Circuit Breaker. It features a plug-on connection, making installation straightforward for electricians. This device is designed to prevent potential hazards in residential and commercial applications by combining arc fault and ground fault protection.

• Features hydraulic magnetic trip technology for reliable performance.
• Includes options for Wi-Fi or Ethernet connection for remote monitoring.
• UL listed for safety and compliance.

Product Highlights

The Leviton LB120-DS enhances safety by integrating smart technology, enabling monitoring and control via the My Leviton app.

Product Information

Standard Information

• Brand: Leviton
• Model Number: LB120-DS

Technical Specifications

• Type: Dual Function Smart AFCI/GFCI
• Amperage Rating: 20 A
• Voltage Rating: 120 VAC
• Number of Poles: 1
• Trip Type: Hydraulic Magnetic
• Interrupt Rating: 10 kA
• Temperature Rating: -40 to 85 degrees Celsius
• Dimensions: 3.9 inches L x 1 inch W x 3.1 inches H
• Country of Origin: China
• Application: Residential, Commercial
