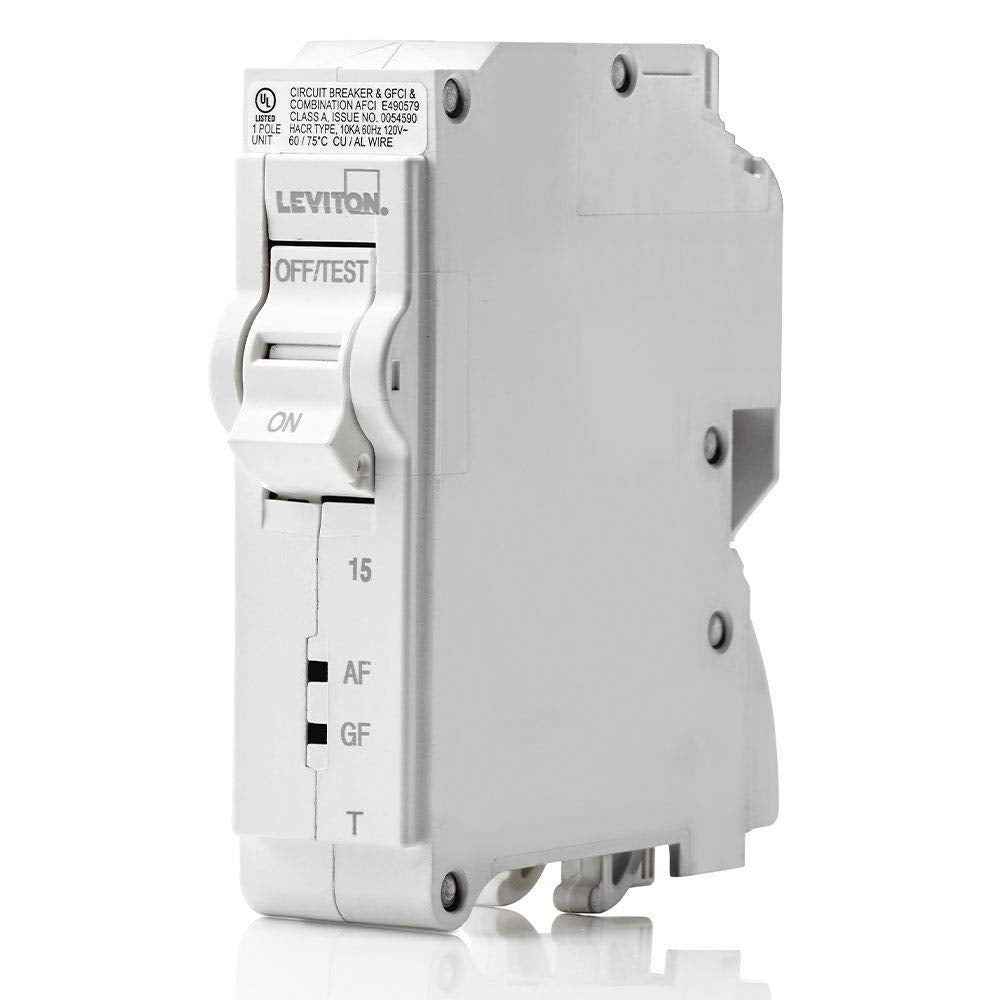

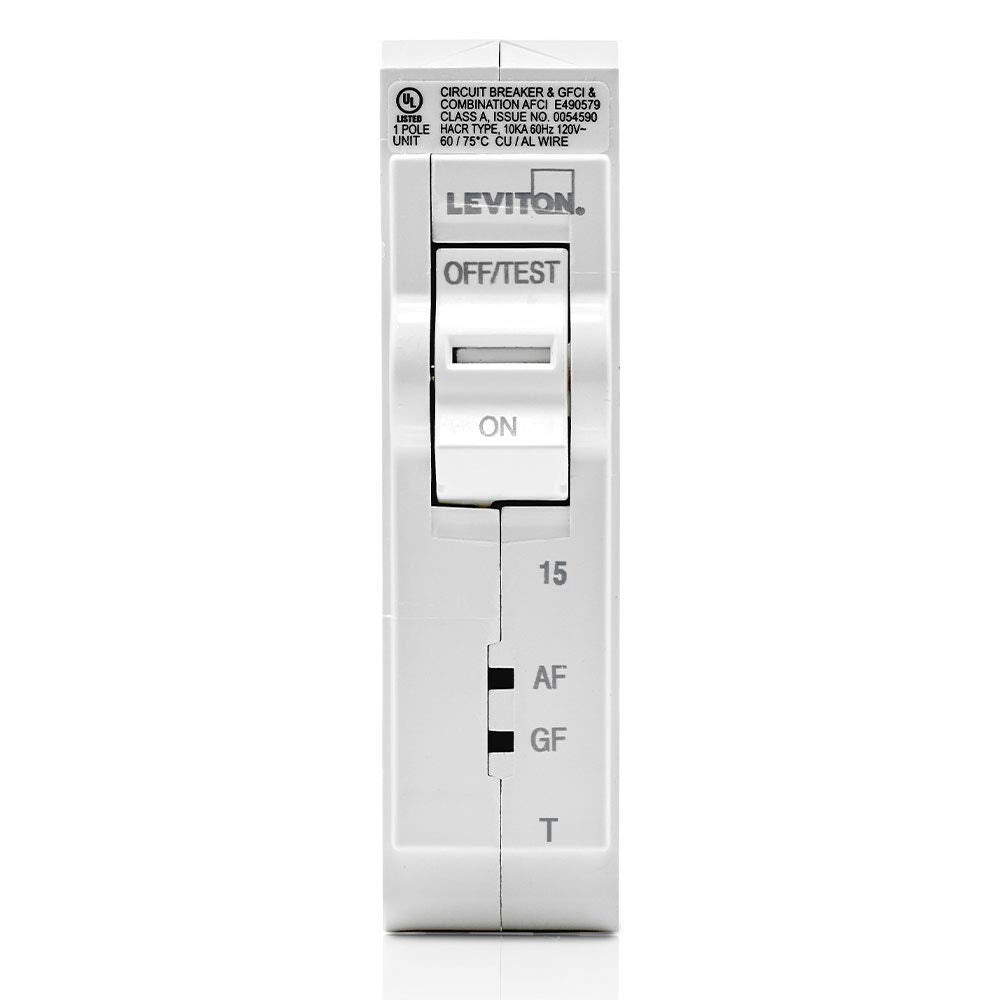

Leviton LB115-DFT 15A 1-Pole Plug-On AFCI/GFCI Branch Circuit Breaker 120 VAC

Product Description

The Leviton LB115-DFT is a one-pole, fifteen amp plug-on AFCI/GFCI branch circuit breaker designed for thermal magnetic applications at one hundred twenty volts AC. This circuit breaker provides essential protection against electrical faults by interrupting power during potentially hazardous conditions. It is a reliable choice for both household and commercial use.

• Includes an instruction sheet for easy installation.
• Compatible with all devices.
• Lightweight design for quick mounting and integration into existing panels.

Product Highlights

This dual function circuit breaker offers a simple plug-on connection and intuitive diagnostic features, making it user-friendly for electricians and technicians.

Product Information

Standard Information

• Manufacturer: Leviton
• Voltage Rating: 120 VAC

Technical Specifications

• Amperage Rating: 15 A
• Interrupt Rating: 10 kA
• Connection Type: Plug-On
• Trip Type: Thermal Magnetic
• Number of Poles: 1
• Temperature Rating: 77 to 104 deg F
• Dimensions: 1 inch wide x 3.1 inches deep x 3.9 inches high
