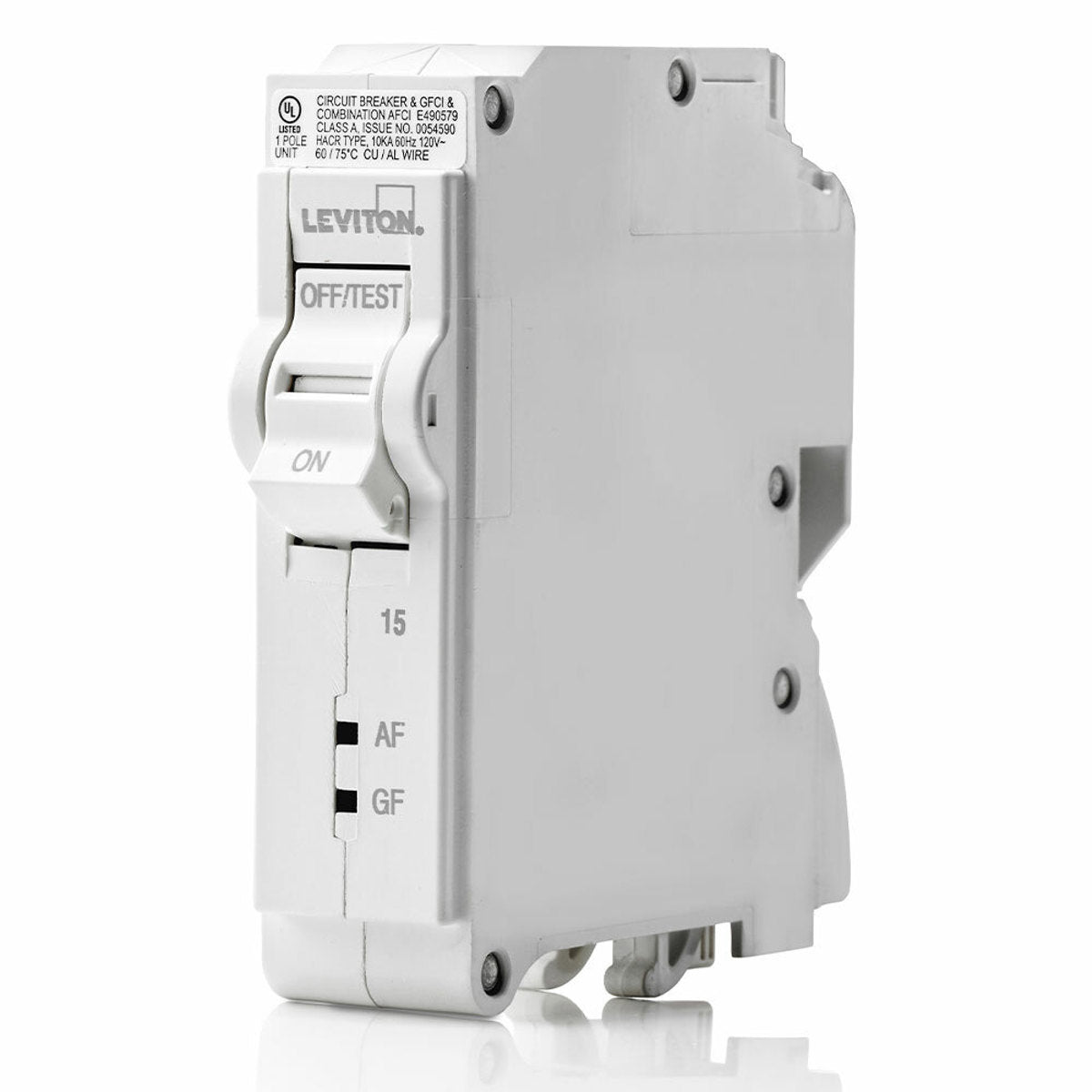

Leviton LB115-DF Branch Circuit Breaker 15A 1-Pole 120V 10Ka Interrupt Rating replacement mpn

Product Description

The LEVITON LB115-DF is a branch circuit breaker, AFCI/GFCI, 1-pole, 15A, 120V with a 10Ka interrupt rating. Designed for overload and short-circuit protection with an all plug-on design. The entire panel can be wired without circuit breakers installed, which can be easily plugged-on at final installation.

• AFCI/GFCI
• 1-Pole
• 15A

Product Highlights

This Leviton circuit breaker features hydraulic magnetic precision trip technology and patented reset lockout technology. Intuitive LEDs communicate trip condition and fault type.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: LB115-DF
• Country of Origin: China

Technical Specifications

• Catalog Number: LB115-DF
• Manufacturer: Leviton
• Brand: Leviton
• Country of Origin: China
• Made in USA: No
• Current Rating: 15 AMPS
• Number of Poles: 1
• Special Features: AFCI/GFCI
• Standard: UL 489
• UPC: 078477814611
• GTIN: 00078477814611
• Item Type: Branch Circuit Breaker
• Operating Temperature: -40-85 CELSIUS
• Voltage Rating: 120 VAC
• Amperage Rating: 15 A
• Connection Type: Wired
• Frequency Rating: 60 Hz
• Insulation Type: Class A
• Interrupt Rating: 10 kA
• Temperature Rating: -40 to 185 deg F
• Trip Type: Hydraulic Magnetic
• Type: AFCI/GFCI
• Circuit Breaker Type: Fault Current Controller
• Terminal Connection: Plug-On
• AC Voltage Rating: 120V AC
• Amperage: 15A
• Breaker Technology: Hydraulic Magnetic
• Pole: 1
• Short Circuit Current Rating: 10 KA
• Wiring: All Plug-on
• CSA-C22.2 No. 5-02: Yes
• EMC Compatibility: Yes
• FCC: Yes
• RoHS: Yes
• UL 943: Yes
• UL1699.A: Yes
• Model: LB115-DF
• Maximum Amperage: 15A
• Smart: No
