Leviton L9501-100 Cable Support Grip 0.50-0.63 in

Product Description

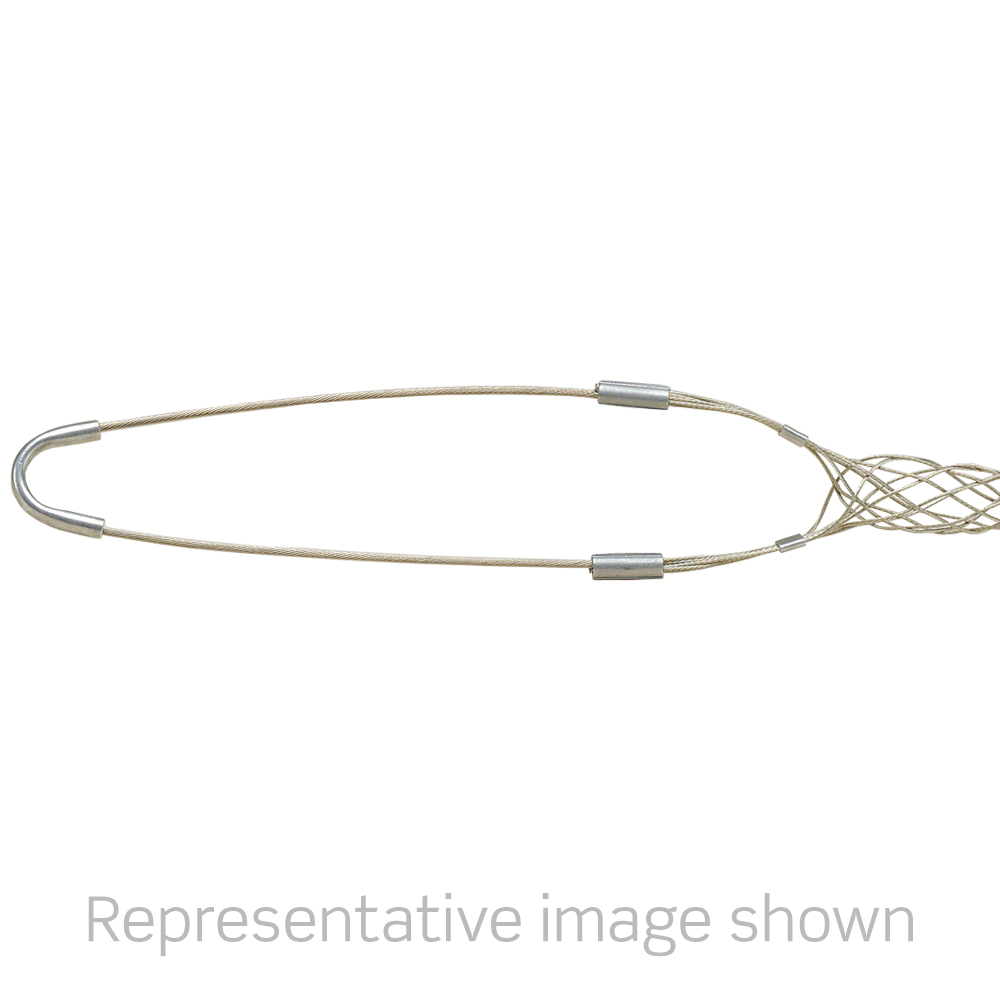

The LEVITON L9501-100 is a single-eye, single-weave cable support grip constructed from stainless steel. It is designed to support, strain-relieve, and suspend cables in electrical and low-voltage installations. The grip accepts cable diameters from 0.50 inches to 0.63 inches and carries a rated breakload of 567 pounds. The closed mesh weave distributes load evenly along the cable jacket, reducing stress concentration at termination points. Licensed electricians and low-voltage technicians install this type of grip when routing conduit drops, vertical cable runs, and suspended cable bundles in commercial and industrial environments.

This support grip is suited for overhead and vertical cable runs where long-term mechanical support is required. The single-eye configuration allows direct attachment to a beam clamp, trapeze, or threaded rod assembly. Typical applications include supporting power, data, or communications cables in electrical panels, cable trays, conduit risers, and equipment rooms. The stainless steel construction makes it appropriate for environments with moisture, corrosive atmospheres, or wide temperature swings.

Key Features

• Stainless steel single-weave mesh provides corrosion resistance and long service life in harsh environments
• Rated breakload of 567 pounds supports heavy cable loads on vertical and overhead runs
• Accepts cable diameters from 0.50 inches to 0.63 inches for a secure, distributed grip
• Single-eye closed design allows direct hardware attachment without secondary rigging hardware
• Eye length of 7.50 inches and mesh length of 10.00 inches provide adequate engagement and hardware clearance

Compatibility

Designed as an OEM-style support grip for use with round cables, conduit drops, and bundled cable assemblies in the 0.50-inch to 0.63-inch outside-diameter range on commercial and industrial electrical installations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements for cable support and strain relief. De-energize and lock out all circuits before attaching or adjusting support grips on energized cable runs. Verify that the anchor point hardware is rated at or above the combined load of the cable and grip before securing the eye. Do not exceed the rated breakload and avoid sharp bends or kinks in the mesh weave during installation.

Technical Specifications

• Cable Diameter Range: 0.50-0.63 inches
• Breakload Rating: 567 pounds
• Eye Length: 7.50 inches
• Mesh Length: 10.00 inches
• Weave Type: Single Weave
• Eye Configuration: Single Eye Closed
• Material: Stainless Steel
• UPC: 078477213025

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: L9501-100
