Product Description

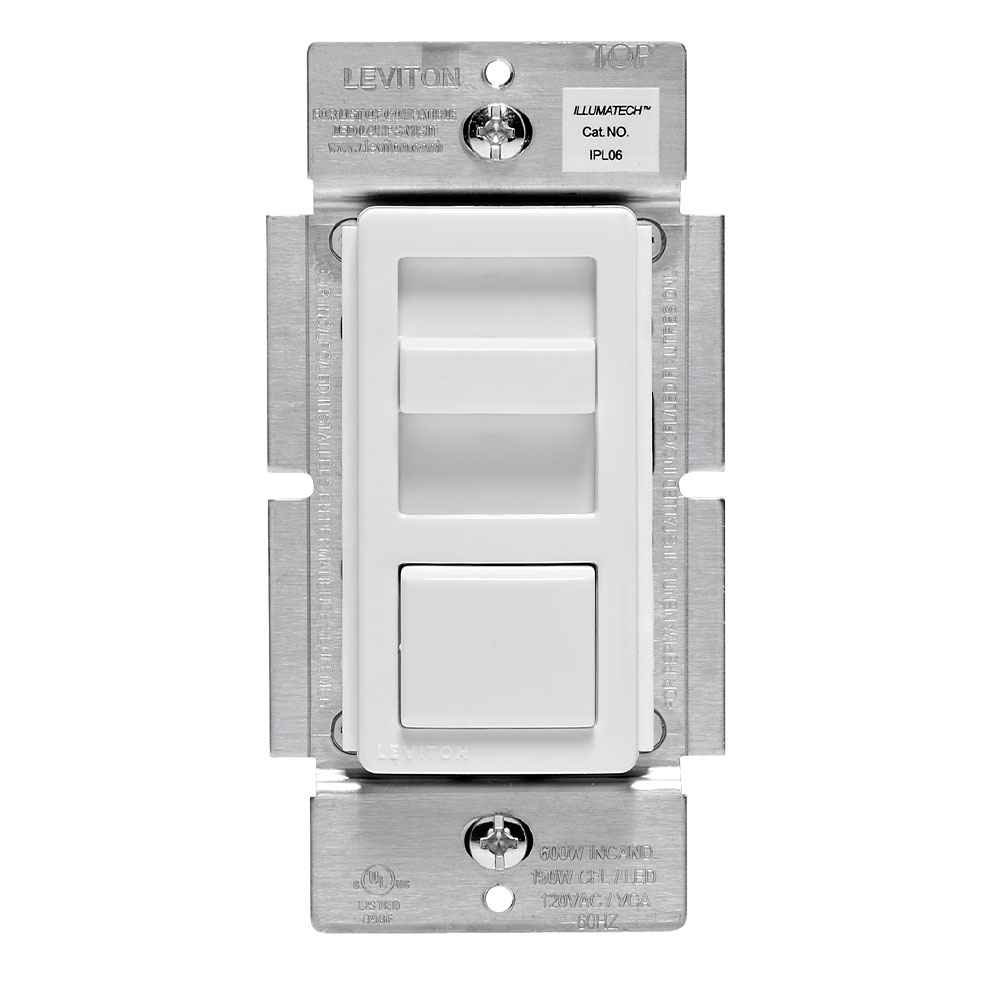

The Leviton IPL06-10Z is a slide dimmer switch designed for controlling incandescent and dimmable LED/CFL lamps. This dimmer operates at one hundred twenty volts and supports a maximum load of six hundred watts. It is compatible with single pole and three-way configurations, allowing versatile installation.
- Designed for dimmable LED and CFL lamps as well as incandescent.
- Includes a built-in starting technology for CFL lamps.
- Offers a wider dimming range than conventional dimmers.
Product Highlights
This dimmer features a fluid slide mechanism for easy adjustments. The IPL06-10Z is suitable for residential or commercial applications.
Product Information
Standard Information
-
Brand: Leviton
-
Type: Electro-Mechanical Slide Dimmer
Technical Specifications
-
Catalog Number: IPL06-10Z
-
Voltage Rating: 120 VAC
-
Wattage Rating: 600 W, 150 W for LED/CFL
-
Number of Poles: 1
-
Mounting Type: Wall
-
Dimensions: 4.15 inches H x 2.12 inches W x 1.41 inches D
-
Temperature Rating: 32 to 130 degrees F
-
Standards/Approvals: UL, CSA
