Product Description

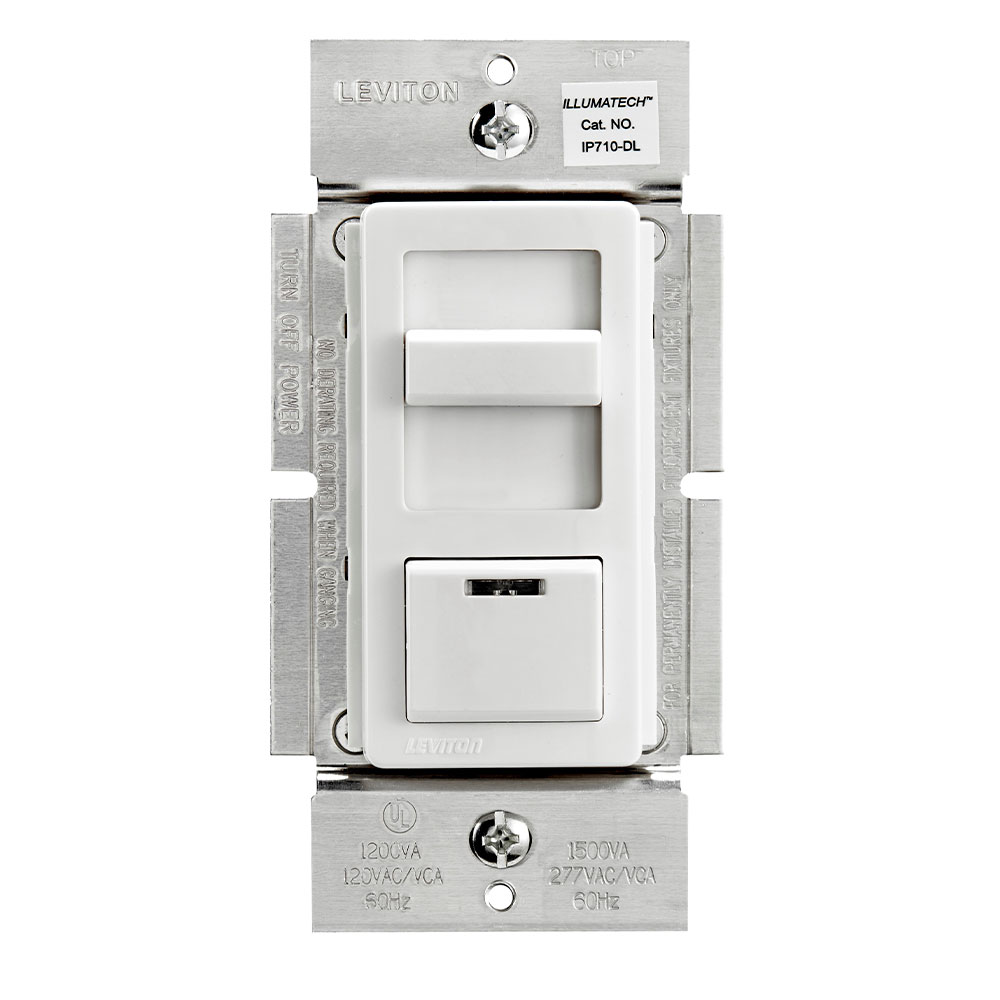

The Leviton IP710-DLZ is a slide dimmer designed for use with LED and fluorescent ballasts. It supports 1200VA at one hundred twenty volts and fifteen hundred VA at two hundred seventy-seven volts. This dimmer features a locator light and allows for single pole or three-way control when paired with a three-way switch. The product includes white, ivory, and light almond faceplates for versatile installation.
- Compatible with LED fixtures using 0-10V power supplies
- Fluid slide movement for easy adjustment of light levels
- Built-in radio/TV interference filter for a clean performance
Product Highlights
This dimmer is designed for commercial and residential applications. It is suitable for use with Mark 7 fluorescent ballasts and can handle dual voltage applications.
Product Information
Standard Information
-
Brand: Leviton
-
Catalog Number: IP710-DLZ
Technical Specifications
-
Voltage Rating: 120/277 VAC
-
Load Rating: 1200 VA
-
Operation Mode: Standard ON/OFF
-
Type: 3-Way Electro-Mechanical
-
Dimensions: 4.15 H x 2.12 W x 1.41 D inches
-
Frequency Rating: 60 Hz
-
Warranty: 5 years limited
