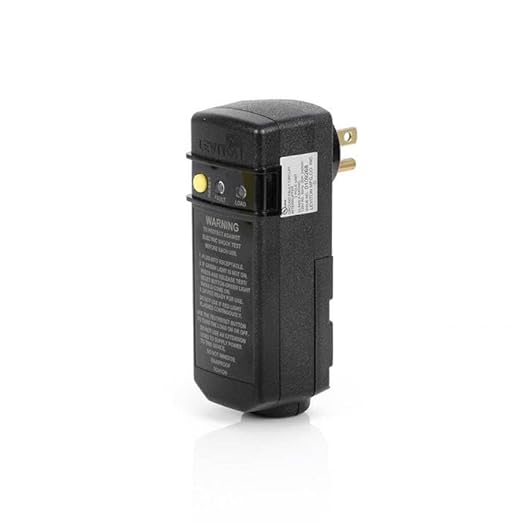

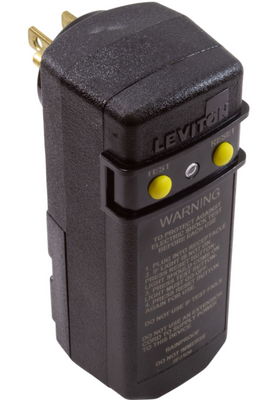

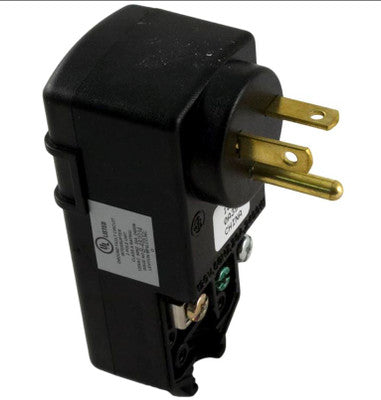

Leviton GSRA2 GFCI Panel Mount, Automatic Reset 20 Amp

Product Description

The Leviton GSRA2 is a GFCI panel mount device with a 20 Amp rating suitable for 120 VAC. This unit features an automatic reset function and right angle GFCI plug. With a rainproof design, it meets the latest UL 943 self-test standards, ensuring protection against electrical shocks. This makes it ideal for various environments including construction sites, RV parks, marinas, and spas.

• Satisfies UL 943 self-test requirement
• Protects personnel from electrical shocks
• Weather-resistant design for outdoor applications

Product Highlights

Product Information

Standard Information

• Brand: Leviton
• Manufacturer: Leviton

Technical Specifications

• Amperage: 20 A
• Trip Level: 5mA plus or minus 1mA
• Voltage: 120 VAC
• Pole: 2
• Wire: 3
• Grounding: GFCI Ground Fault
• Flammability: Rated V-2 per UL 94
• Operating Temperature: -35°C to 66°C
• Blades/Contacts: Brass
• Body Material: Polycarbonate
• Cord Range: .330 - .597
• Terminal Accom.: 18-12 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• NEMA: WD-6
• ANSI: C-73
• CSA C22.2: File LR-57811
• UL 943: Class A (GFCI)
• UL Listed: E-48380
