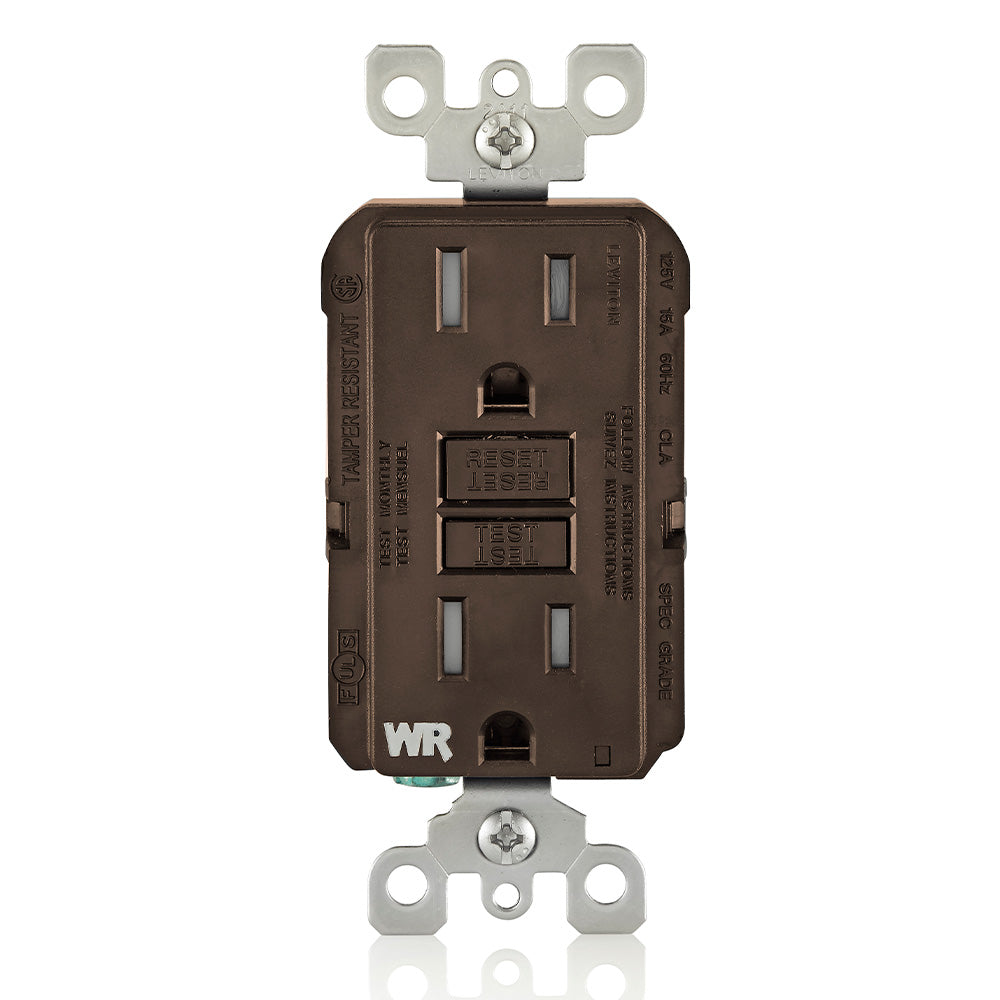

Leviton GFWT1 15 Amp Slim GFCI Weather-Resistant Outlet (Duplex) Replacement GFWT1

Product Description

The Leviton GFWT1 is a SmartlockPro 15 amp, 125 volt slim GFCI duplex receptacle designed for weather-resistant installations. It provides SmartlockPro self-test auto-monitoring with an initial test within three seconds and periodic internal tests, 20 amp feed-through capability, tamper-resistant shutters, and an indicator LED for power/protection and line/load reversal. The slim profile supports installation in shallow boxes and accepts back and side wiring.

• SmartlockPro self-test auto-monitoring with initial test within 3 seconds and periodic internal tests
• Weather-resistant and tamper-resistant duplex GFCI with patented reset lockout and LED status indicator
• Slim profile for shallow boxes, 20 A feed-through, and back-and-side wire termination compatible with Decora devices

Product Highlights

SmartlockPro self-test weather-resistant 15 A GFCI duplex with slim profile and 20 A feed-through.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: GFWT1
• Country of Origin: China

Technical Specifications

• Brand: SmartlockPro (Leviton)
• Model / MPN: GFWT1
• Device Type: Duplex Receptacle (GFCI)
• Amperage: 15 A
• Input Voltage: 125 VAC
• Frequency: 60 Hz
• Feed-through rating: 20 A
• Dielectric Withstanding Voltage: 1250 VAC
• Grounding: Grounding
• Poles: 2
• Short Circuit Current Rating: 10 kA
• Temperature Rise: Max 30�C
• Trip Level: Class A
• Conductors / Wire Count: 3
• Operating Temperature: Maximum Continuous 66�C, Minimum -35�C (without impact)
• Body Material: Thermoplastic
• Face Material: Thermoplastic
• Grounding Screw: #8 Stainless Steel
• Line Contacts: Brass
• Mounting Strap: Stainless Steel
• Self-Grounding Clip: No
• Tamper-Resistant Shutter Material: Thermoplastic
• Terminal Clamps: Brass
• Terminal Screws: #8 Stainless Steel
• Termination: Back and Side Wire
• Torque Range: 14-18 in-lbs (listed as 14-18 lbs.)
• Wire Accommodation: #10 - #14 AWG Copper, #10 - #12 Copper Clad
• Features: Indicator Light; Self-Test; Tamper Resistant; Weather Resistant; Patented reset lockout; Line/load reversal LED
• Grade: Residential/Commercial Specification Grade
• NEMA Configuration: 5-15R
• Product Type: GFCI
• Applicable Standards and Certifications: UL; CSA; CSA C22.2 No. 144; CSA C22.2 No. 42; Fed Spec WC-596; UL 943; UL 498
• NEMA: WD-1 and WD-6
• UPC: 078477004340
