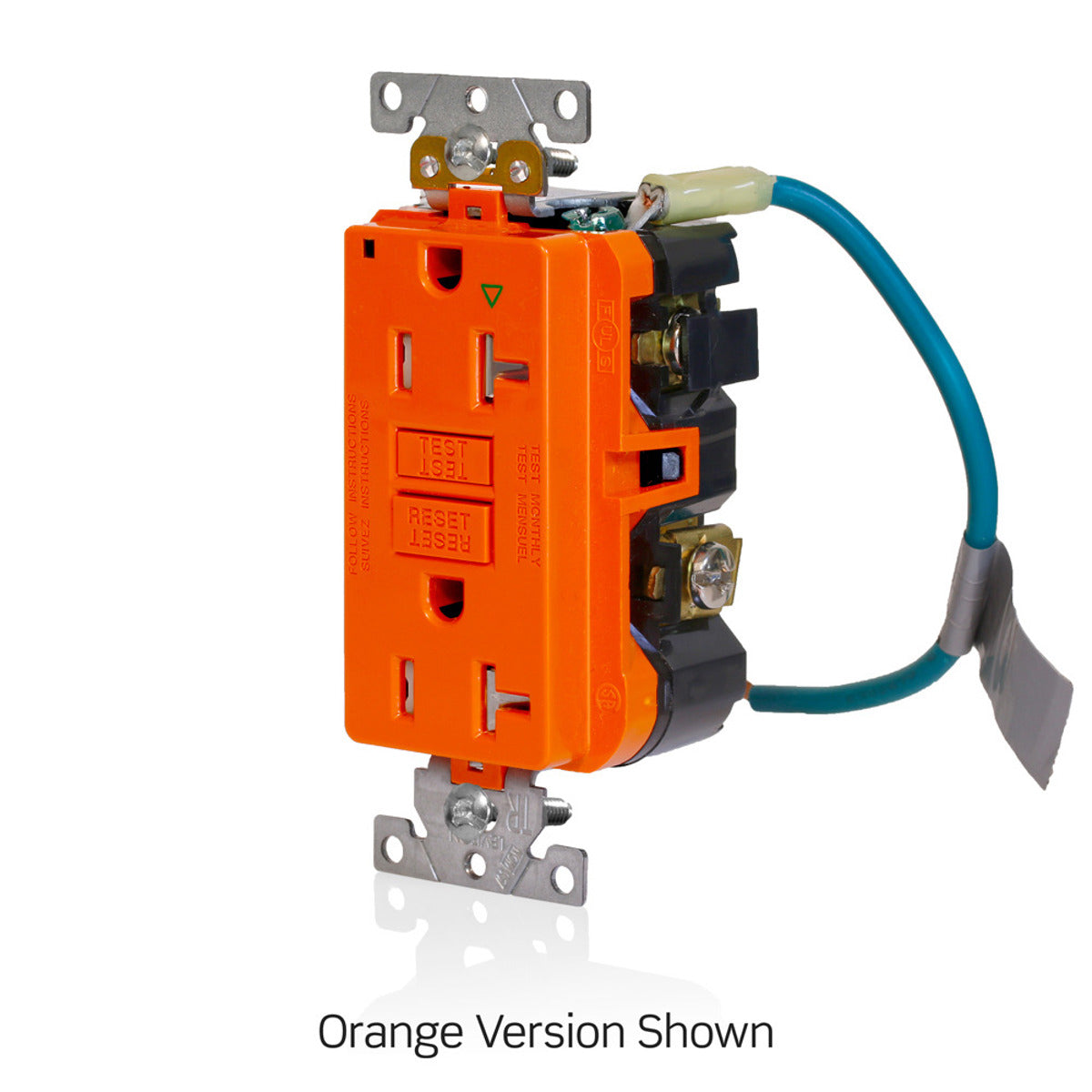

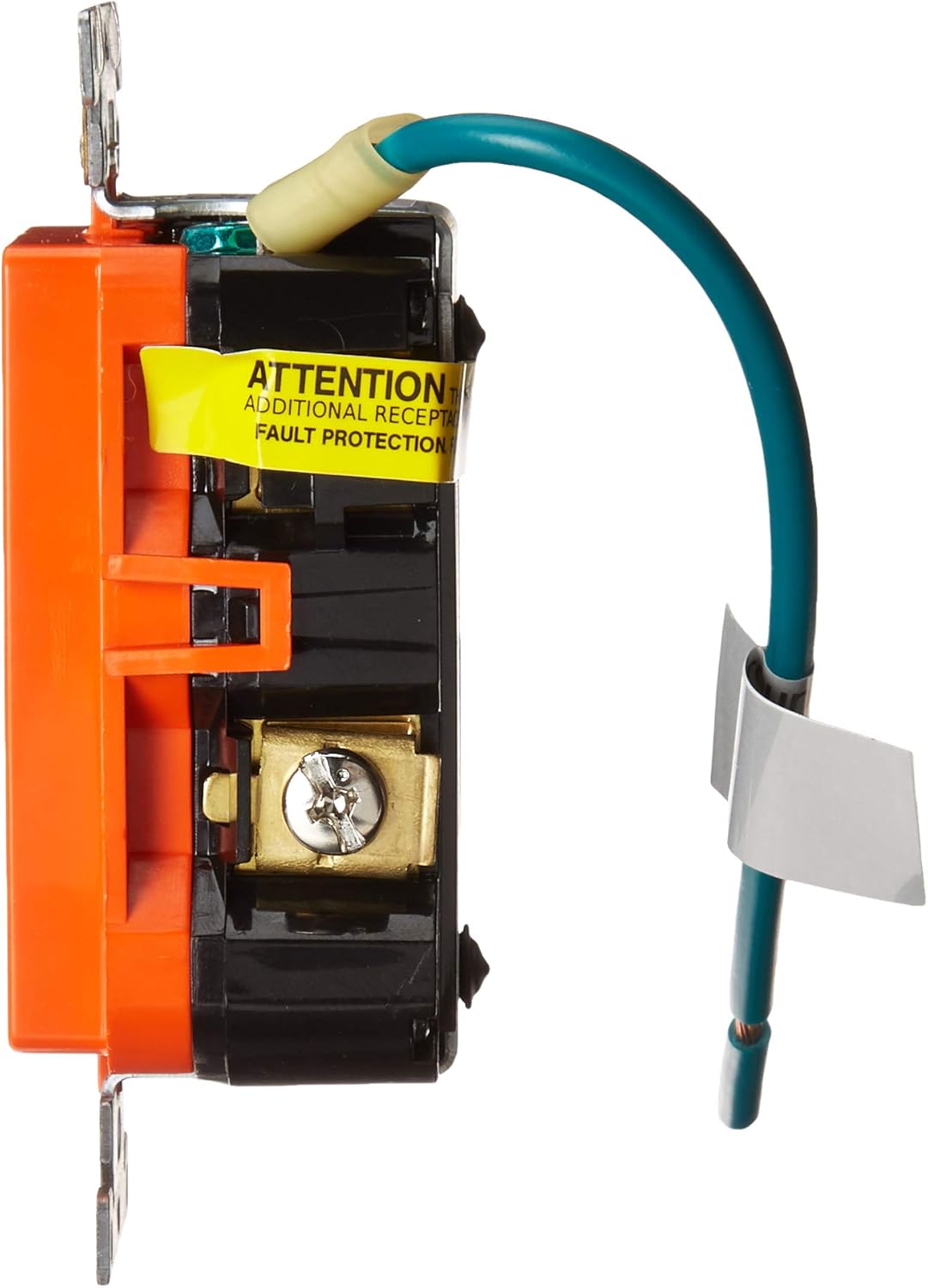

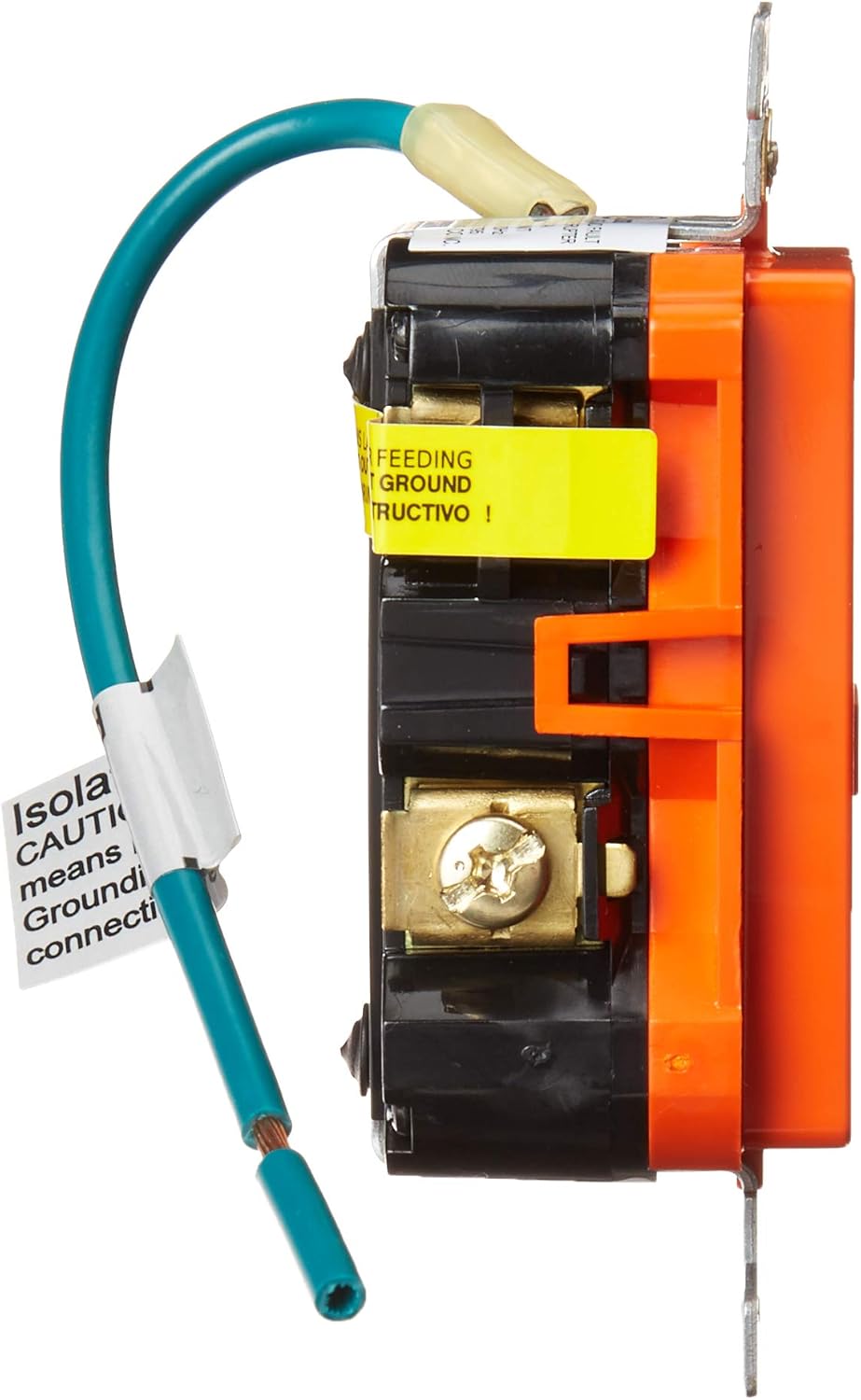

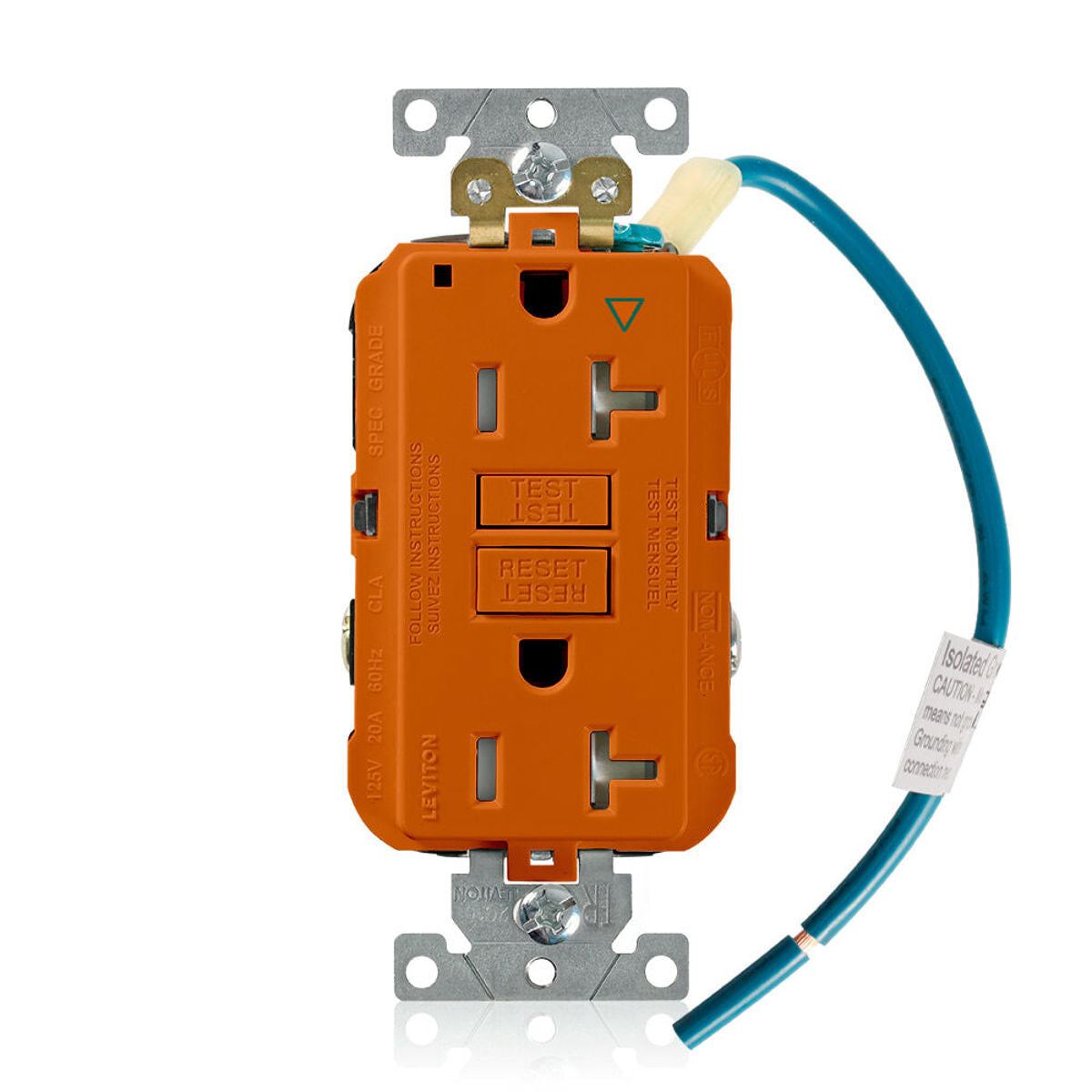

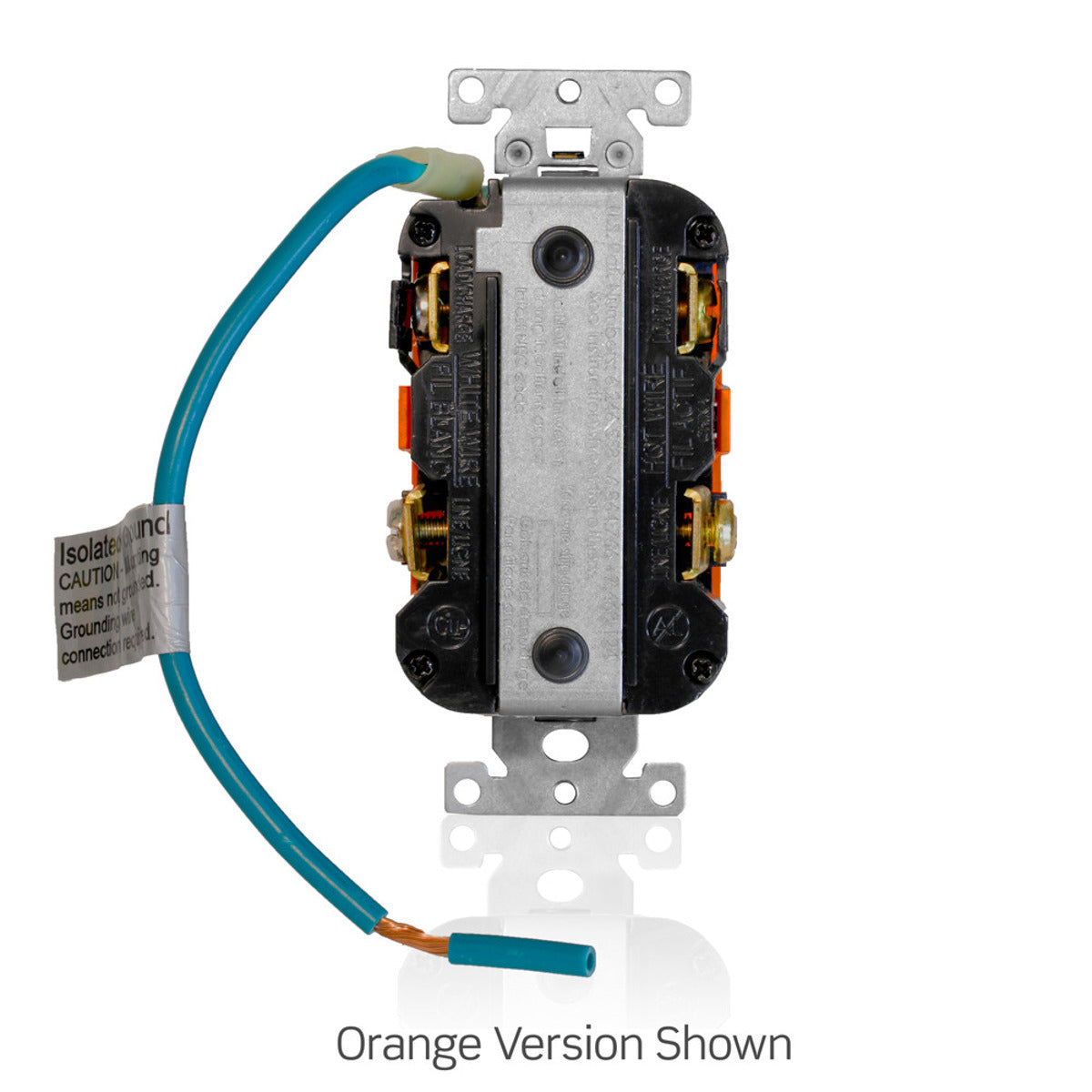

Leviton GFTR2-IGO Extra-Heavy Duty Industrial Grade Isolated Ground Duplex Tamper-Resistant Self-Test GFCI Receptacle 20A-125V

Product Description

The Leviton GFTR2-IGO is an extra-heavy duty industrial grade isolated ground duplex tamper-resistant self-test GFCI receptacle. Rated at 20A and 125V, this receptacle is suitable for desktop and other compatible devices. It is UL certified and made with polycarbonate material.

• Extra-Heavy Duty Industrial Grade
• Isolated Ground
• Duplex Tamper-Resistant
• Self-Test GFCI Receptacle

Product Highlights

This receptacle provides reliable ground fault circuit interrupter protection and is ideal for industrial applications.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: GFTR2-IGO
• Country of Origin: China

Technical Specifications

• Color: Orange
• Style: 20-Amp
• Voltage: 125 Volts
• Material: Polycarbonate (PC)
• Certification: UL
• Compatible Devices: Desktop
• Batteries Required?: No
• Included Components: Device
• Catalog Number: GFTR2-IGO
• Manufacturer: Leviton
• Country of Origin: China
• Made in USA: No
• Amperage Rating: 20 A
• Application: Extra-Heavy Duty Industrial Grade
• NEMA Rating: 5-20R
• Number of Outlets: 2
• Number of Poles: 2
• Number of Wires: 3
• Special Features: Isolated Ground
• Standard: UL, CSA, NOM-ANCE
• UPC: 078477724064
• GTIN: 00078477724064
• Item Type: Self-test SmartLock Pro Slim GFCI
• Temperature Rating: -35C to +66C
• Voltage Rating: 125 VAC
• Grade: Extra Heavy-Duty Industrial Specification Grade
• Horsepower: 1 hp
• Terminal Type: Back/Side Wire
• Type: Duplex Feed Through Self-Test Tamper Resistant
• Nema: 5-20R
• AC Horsepower Ratings At Rated Voltage: 1 HP
• Amperage: 20 A
• Grounding: Self-Grounding
• Pole: 2
• Short Circuit Current Rating: 10kA
• Wire: 3
• Flammability: Rated V-0 per UL 94
• Operating Temperature: -35C to +66C
• Body Material: Polycarbonate
• Face Material: PBT
• Ground Clips: Brass
• Grounding Screw: Plated Steel
• Line Contacts: Brass
• Shutter Mechanism: Delrin Acetal
• Strap Material: Galvanized Steel
• Terminal Clamp: Brass
• Terminal Screws: Plated Steel
• Product ID: Ratings are permenantly marked on device
• Screw Terminal Torque: 14-18 in-lbs
• Terminal Accom.: 14-10 AWG solid or stranded
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Termination: Back or Side Wire
• Torque Range: 14 18 in.-lbs
• Trip Level: Class A, 5mA plus or minus 1mA
• Brand: SmartlockPro
• Device Type: Duplex Receptacle Outlet
• Feature: Tamper-Resistant,Power Indication
• Function: Isolated Ground GFCI
• NEMA: WD-1 & WD-6
• ANSI: C-73
• Applicable Standards: UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
• Certification/Listing: UL, CSA, NOM-ANCE
