Product Description

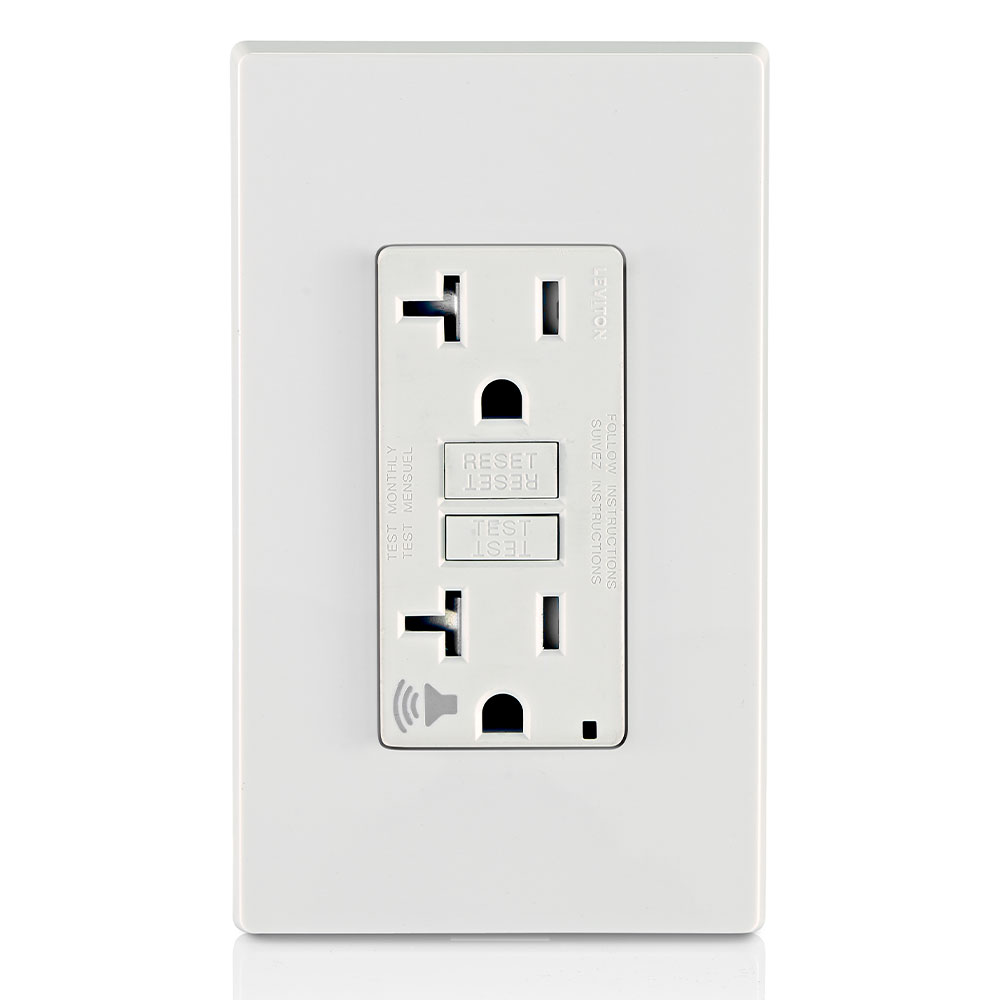

Leviton GFTA2-W is a tamper-resistant GFCI receptacle designed for electrical safety in residential and commercial settings. It provides ground fault protection and is rated for one horsepower at one hundred twenty-five volts and twenty amps. It features a self-test function with an audible alert that indicates when a trip occurs, allowing for quick user response. This receptacle is equipped to handle two poles and three wires.
- Audible alarm sounds when GFCI trips
- Continuous ground fault protection even during self-testing
- Tests GFCI circuit within three seconds of initial power up
Product Highlights
This GFCI receptacle incorporates advanced design features to enhance safety and functionality, making it ideal for applications in locations where electrical safety is critical.
Product Information
Standard Information
-
Manufacturer: Leviton
-
MPN: GFTA2-W
Technical Specifications
-
Voltage Rating: 125 VAC
-
Amperage Rating: 20 A
-
Horsepower: 1 hp
-
NEMA Rating: NEMA 5-20R
-
Number of Poles: 2
-
Number of Wires: 3
-
Dimensions: 4.21 in H x 1.69 in W x 1.4 in D
-
Material: Polycarbonate
-
Temperature Rating: -35 to 66 deg C
