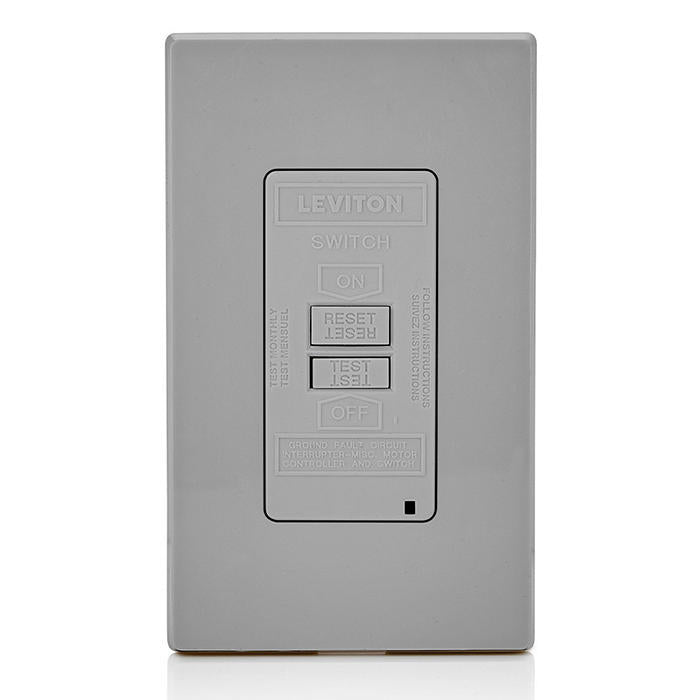

The Leviton GFRBF-GY Gray St GFCI Faceless Slim Lite 20A125V receptacle delivers continuous ground fault protection. It automatically self-tests to ensure it can respond to ground faults. The status indicator light provides simple, intuitive feedback. Designed to improve immunity for reduced HF nuisance tripping.
Delivers continuous ground fault protection
Automatically self-tests to ensure it can respond to ground fault
Status indicator light provides simple, intuitive feedback
Product Highlights
Provides reliable ground fault protection with intuitive status feedback. Its slim design ensures easy installation.
Product Information
Standard Information
Brand: LEVITON
Manufacturer Part Number: GFRBF-GY
Country of Origin: China
Technical Specifications
Catalog Number
GFRBF-GY
Manufacturer
Leviton
Brand
Leviton
Country of Origin
China
Made in USA
No
UPC
078477003565
GTIN
00078477003565
Amperage
20 A Feed-Through
Color
Gray
Feature
Self-Test
Fed Spec WC-596
Yes
Feed-Through Current
20 Amp
Grounding
Self Grounding
Pole
2
Standards and Certifications
UL/CSA
Strap Material
Galvanized Steel
Tamper Resistant
No
Termination
Back & Side
Trip Level
Class A, 5mA plus or minus 1mA
Type
Blank Face
Voltage
125 VAC
Wallplate
Not Included
Wire
3
Dielectric Voltage
Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Short Circuit Current Rating
10KA
Operating Temperature
-35C to +66C
Body Material
Polycarbonate
Clamps
Brass
Face Material
Thermoplastic
Grounding Screw
Plated Steel
Line Contacts
Brass Double-Wipe .031 Thick
Terminal Screws
Plated Steel
Yoke
Zinc-Plated Steel
Terminal Accom.
14-10 AWG
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
At Rated Voltage
1 HP
Product Name
Leviton Gray Self-Test GFCI Blank Face Slim Lite Receptacle/Outlet 20A 125V (GFRBF-GY)
