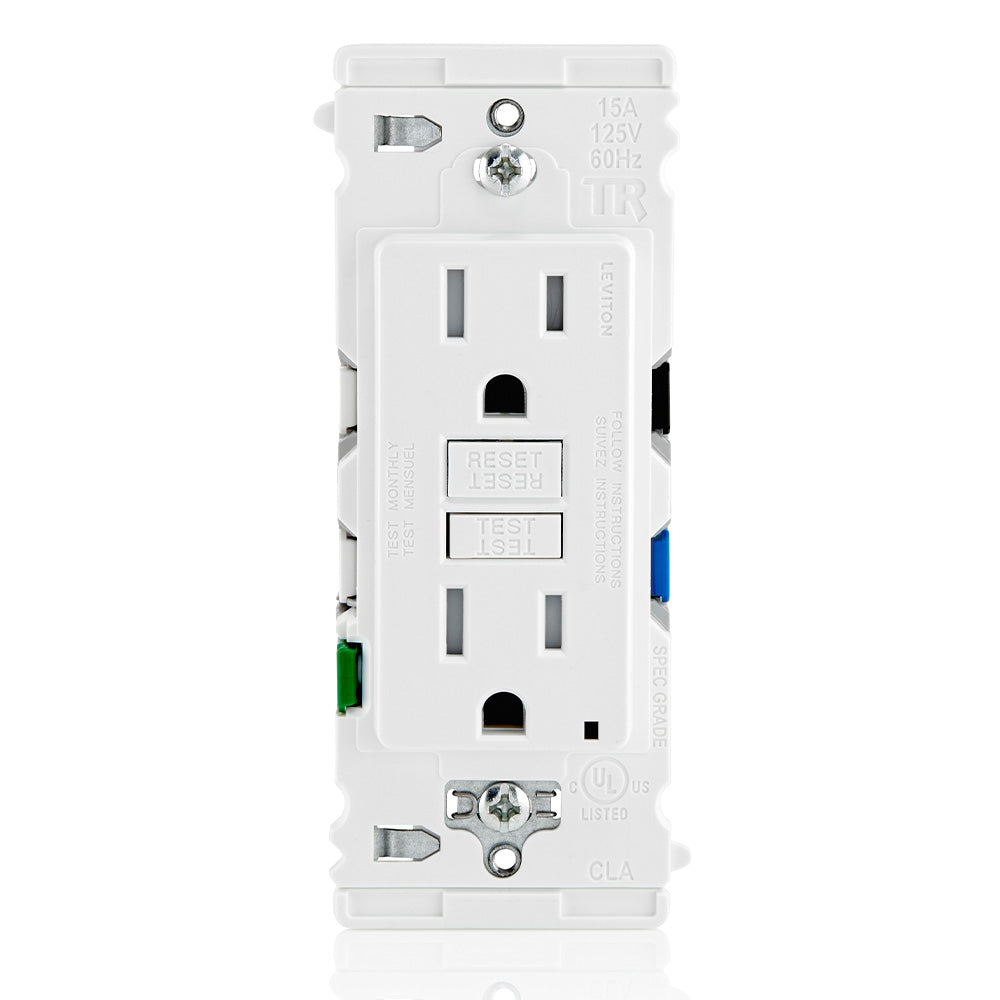

LEVITON Leviton EGFT1-W Lever Edge Self-Test Tamper-Resistant GFCI 15 Amp Duplex
LEVITON Leviton EGFT1-W Lever Edge Self-Test Tamper-Resistant GFCI 15 Amp Duplex

Leviton EGFT1-W Lever Edge Self-Test Tamper-Resistant GFCI 15 Amp Duplex

Brand: LEVITON
SKU: EGFT1-W
Availability: In Stock

Ships same day if ordered by 12 pm
$75.05
$75.05
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Leviton EGFT1-W is a Lever Edge self-test tamper-resistant GFCI receptacle providing 15 amp, 125 VAC, 60 Hz ground-fault protection in a duplex NEMA 5-15R configuration. It features continuous automatic self-testing with auto-monitoring, a status indicator light, lockout to prevent unsafe resets, and lever-style color-coded termination for faster wiring. The device accepts #12 and #14 AWG solid or stranded copper conductors and meets UL and CSA safety standards.

  • 15 A, 125 VAC, 60 Hz duplex GFCI with Class A trip level and 10 kA short-circuit rating
  • Continuous automatic self-test with status indicator and Reset Lockout to prevent unsafe resets
  • Lever-style color-coded termination compatible with #12 and #14 AWG solid or stranded copper

Product Highlights

Continuous self-test GFCI with lever termination and tamper-resistant design

Product Information

Standard Information

  • Brand: LEVITON
  • Manufacturer Part Number: EGFT1-W
  • Country of Origin: China
Technical Specifications
Brand
Leviton
Manufacturer Part Number
EGFT1-W
UPC
078477016282
Device Type
Duplex receptacle (GFCI)
Product Type
GFCI
Amperage
15 A
Voltage
125 VAC
Frequency
60 Hz
NEMA Configuration
5-15R
Grade
Residential/Commercial Specification Grade
Trip Level
Class A
Wire Accommodation
#12-#14 AWG copper solid or stranded
Poles
2
Wires
3
Short Circuit Current Rating
10 kA
Dielectric Voltage
1250 VAC
Horsepower Rating
1/2 hp
Operating Temperature
Maximum Continuous 66 C, Minimum -35 C (without impact)
Temperature Rise
Max 30 C
Grounding
Self-Grounding
Body Material
Thermoplastic
Face Material
Thermoplastic
Line Contacts
Brass
Terminal Clamps
Brass
Mounting Strap
Galvanized steel with thermoplastic cover
Self-Grounding Clip
Yes
Termination
Color-coded lever terminals (lever-style termination)
Features
Tamper-resistant, self-test auto-monitoring, status indicator, lockout reset protection
Standards and Certifications
cULus; CSA C22.2 No. 144; CSA C22.2 No. 42; UL 943; UL 498
NEMA Standard
WD-1 and WD-6
Country of Origin
China
