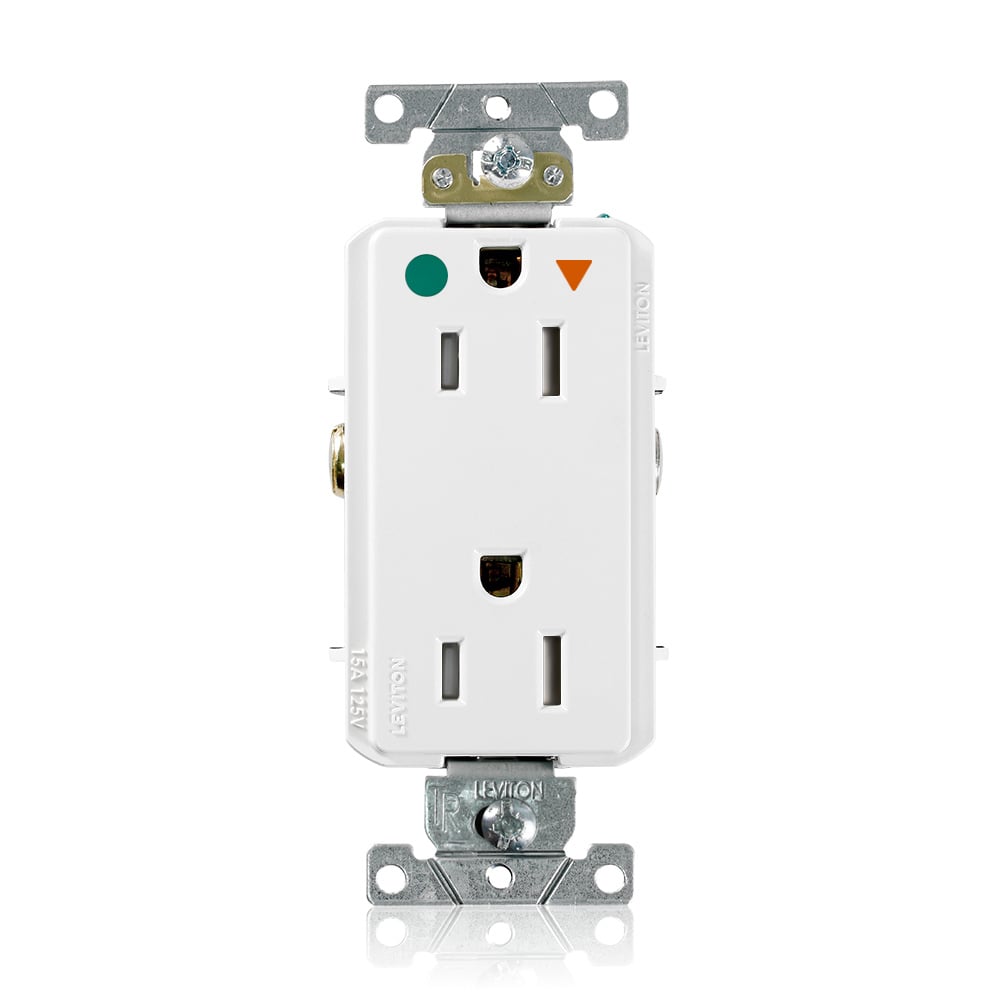

Leviton DT820-IGW Decora Plus Duplex Receptacle 15A 125V

Product Description

The Leviton DT820-IGW is a Decora Plus duplex receptacle designed for hospital grade applications. It features an isolated ground and tamper-resistant design. This receptacle is suitable for both back and side wiring setups, ensuring flexibility and ease of installation.

• Rated for 15 Amps and 125 Volts.
• Constructed from impact-resistant materials for durability.
• Meets NEC Article 406 compliance for tamper-resistant receptacles.

Product Highlights

This receptacle is ideal for educational facilities, hospitals, and office environments. It has a patented tamper-resistant safety shutter mechanism.

Product Information

Standard Information

• Catalog Number: DT820-IGW
• Manufacturer: Leviton

Technical Specifications

• Amperage Rating: 15
• Voltage Rating: 125
• Horsepower Rating: 1/2 hp
• Number of Poles: 2
• Number of Wires: 3
• NEMA Rating: 5-15R
• Temperature Rating: -40 to 75 degrees Celsius
• Material: PBT Polyester Blend
• Country of Origin: Mexico
