Product Description

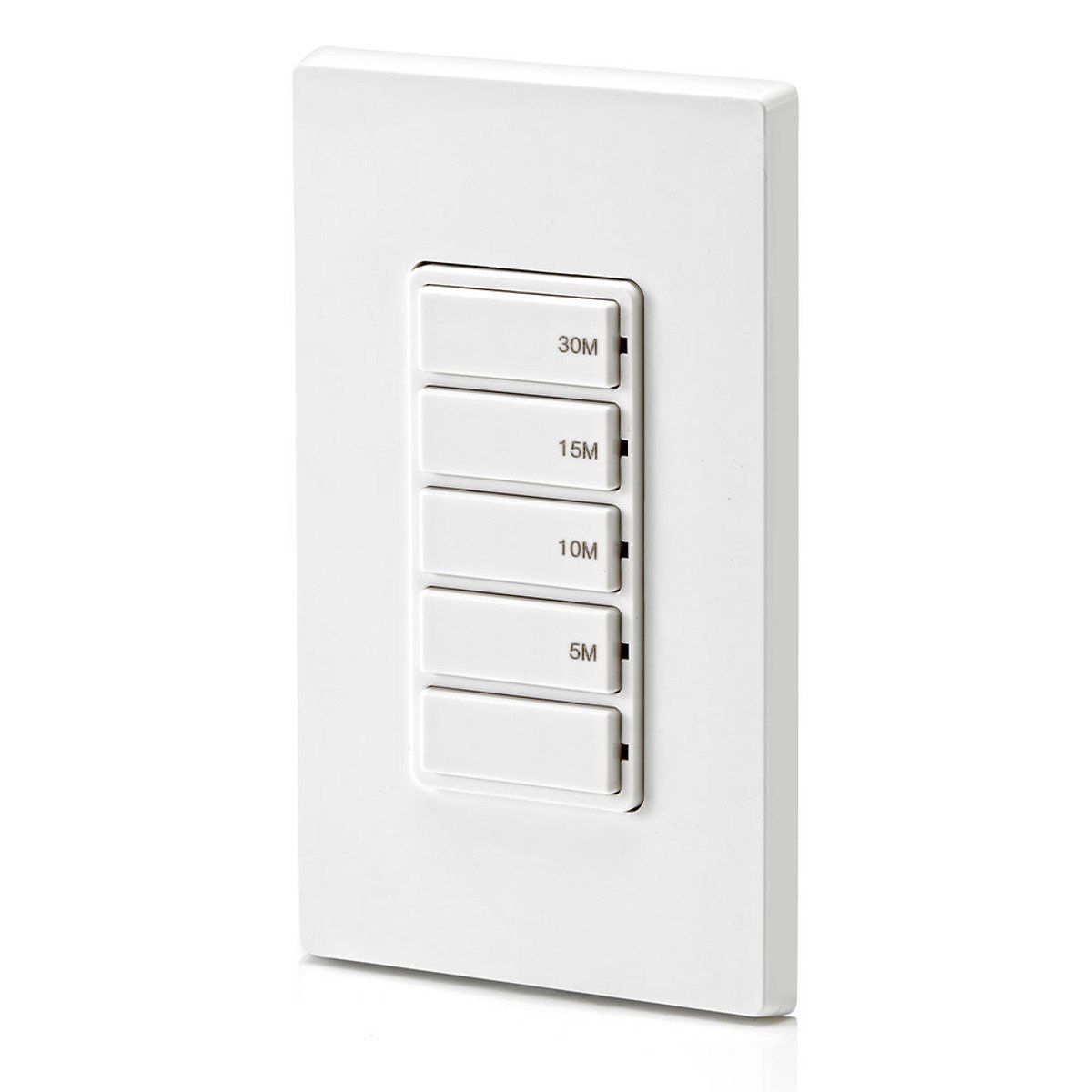

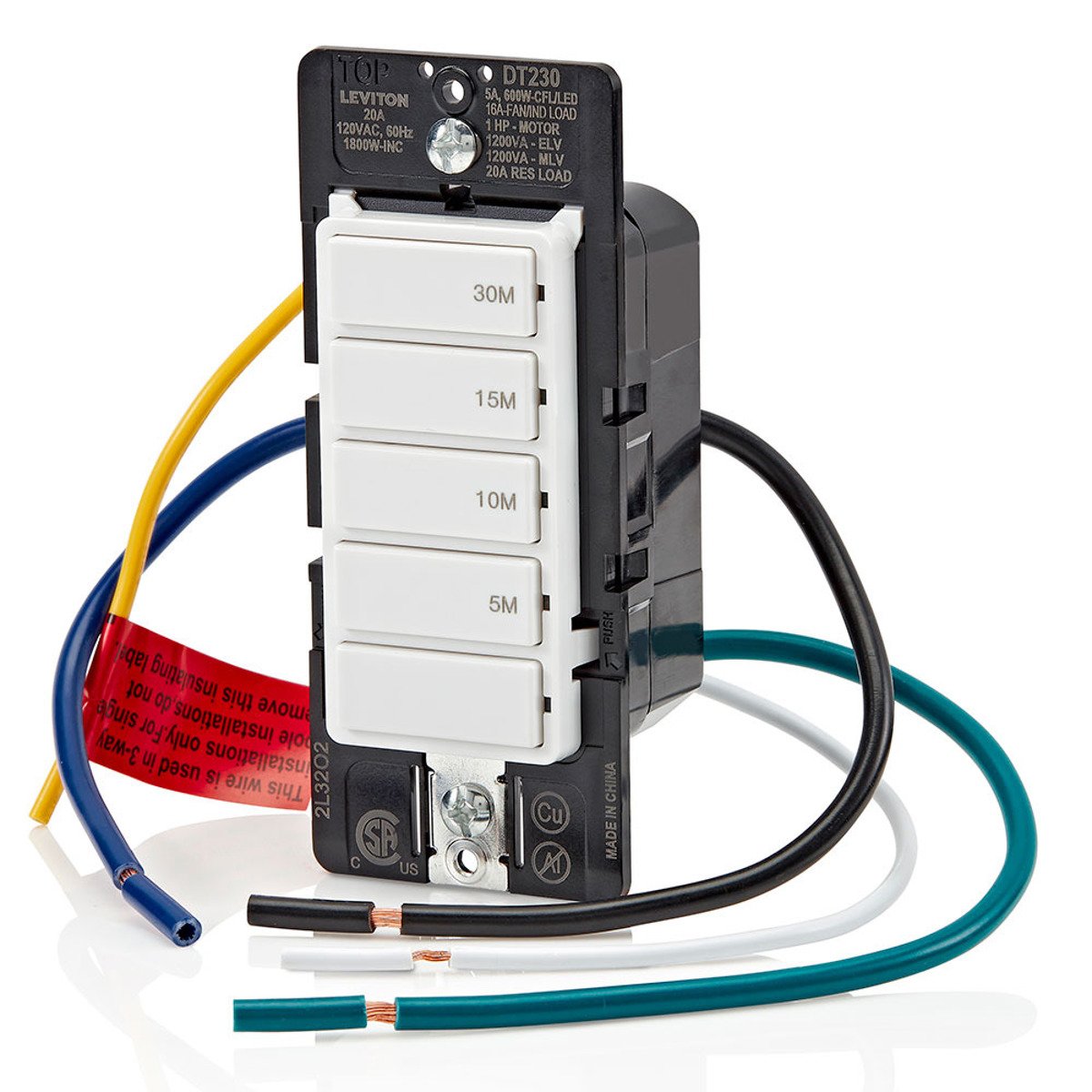

The LEVITON DT230-1LW Decora In-Wall Timer Switch automates lights and motors. It features five buttons with 5-minute, 10-minute, 15-minute, and 30-minute preset time options, plus a manual off button. Its load capacity handles larger fixtures and fans. It is compatible with DD0SR Switch Companion or multi-timer using two DT230 Countdown Timers.
- Turns off automatically when time expires, saving energy.
- Offers single pole, multi-way, or multi-timer flexibility.
- Designed with a load capacity to handle larger exhaust fans, pumps, and fixtures.
Product Highlights
Automate your home with the Leviton Decora In-Wall Timer. Perfect for lighting, fans, heat lamps, and more.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: DT230-1LW
-
Country of Origin: China
Technical Specifications
-
Catalog Number: DT230-1LW
-
Manufacturer: Leviton
-
Brand: Leviton
-
Country of Origin: China
-
Made in USA: No
-
UPC: 078477264324
-
GTIN: 00078477264324
-
Model / MPN: DT230-1LW
-
Size: 20 Amp
-
Number of Items: 1.0
-
Amperage: 20 A
-
Companion Device: DD0SR , DT230
-
Compatible Bulb Type: LED , CFL , Incandescent , Halogen , Magnetic Low Voltage , Electronic Low Voltage , Fluorescent , Fan , Motor , Inductive , Resistive
-
Device Type: Timer Switch
-
Faceplate Colors: White , Ivory , Light Almond , Gray , Black , Brown
-
Function: Single-Pole (SP) , 3-Way , Multi-Location , Multi-Timer
-
Grade: Residential
-
Grounding: Yes
-
Horsepower Rating: 1 HP
-
Mounting Type: In-Wall
-
Neutral Required: Yes
-
Optional Faceplates: DTKIT
-
Power Consumption: <1 Watt
-
Standards and Certifications: CSA , FCC , IC
-
Style: Push Button
-

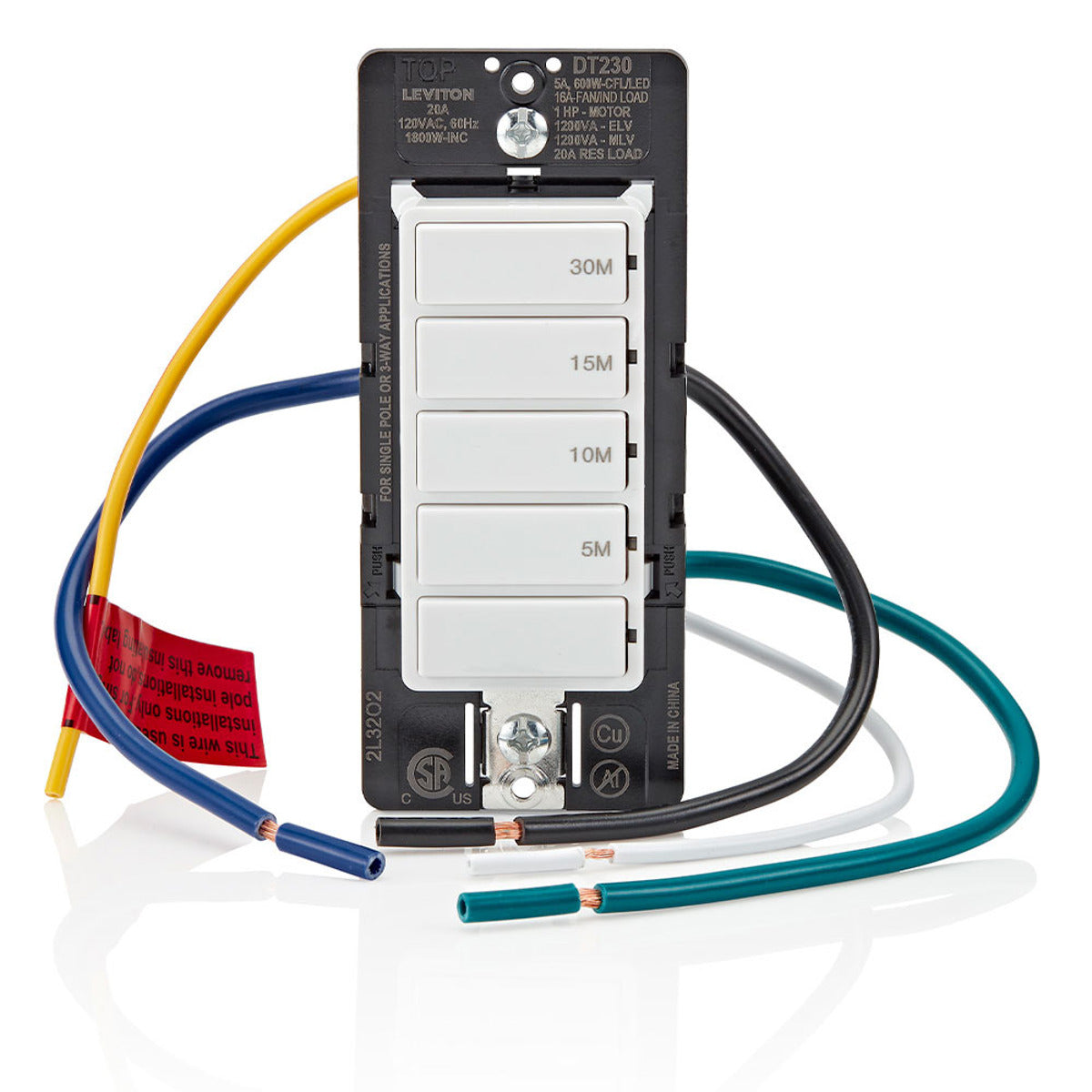

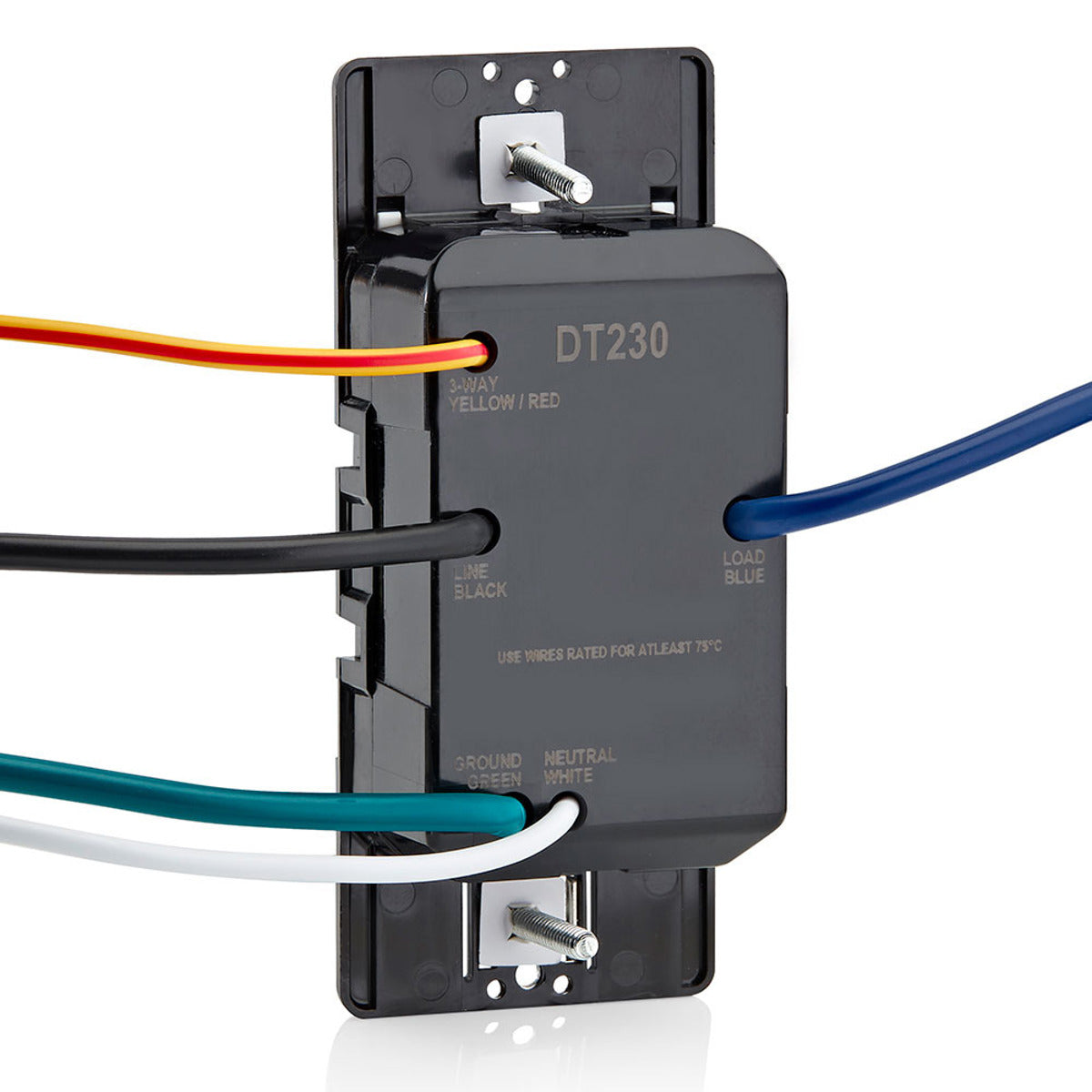

Termination: Leads
-
Timer Options: 30-Minute (5M, 10M, 15M, 30M)
-
Timer Type: Countdown
-
Voltage: 120 VAC
-
Wallplate: Not Included
-
Wattage Rating: 600W , 1800W , 1200VA
-
Maximum Time Setting (Min.): 30
-
Operation Mode: Manual
-
Current Rating: 20 Amps
-
Operating Voltage: 120 Volts (AC)
-
Contact Type: Mechanical
-
Connector Type: Leads
-
Switch Type: Timer Switch
-
Terminal: Wire Leads
-
Material: Plastic
-
Circuit Type: Single Pole, 3-way, multi-timer
-
Actuator Type: Push Button
-
Number of Positions: 5
-
Controller Type: Timer Switch
-
Control Method: Touch
-
Connectivity Protocol: X-10
-
Wattage: 1800 watts
-
Control Type: Preset
-
Compatible Devices: lights, fans, heat lamps, pool pumps, hot tubs, saunas, attic fans, Decora devices
-
Smart Home Compatibility: Not Smart Home Compatible
-
Mounting Style: Wall
-
Interruption Type: Switch
-
Maximum Amperage: 20 A
-
Current Type: AC
-
Model: DT230-1LW
-
Features: 30 Minute Countdown
-
Number of Poles: 1
-
Box Shape: Rectangular
-
Application: Light Control
-
Finish: White
-
Number of Ways: 3
-
Room: Any Room
-
ADI Part Number: LV-DT2301LW
-
Product Name: Decora In-Wall 30-Minute Countdown Timer Switch, 20A, 1 HP/16A Fan/Motor, Single Pole/Multi-Way/Multi-Timer
-
Product Type: Countdown Timer Switch
-
Controllable Function: Fan Control, Motor Control
-
Depth: 1.34"
-
Width: 1.73"
-
Input Voltage: 120V AC
-
Power Rating: 1200VA, 1800W, 600W
-
Compatibility: DD0SR, DT230
