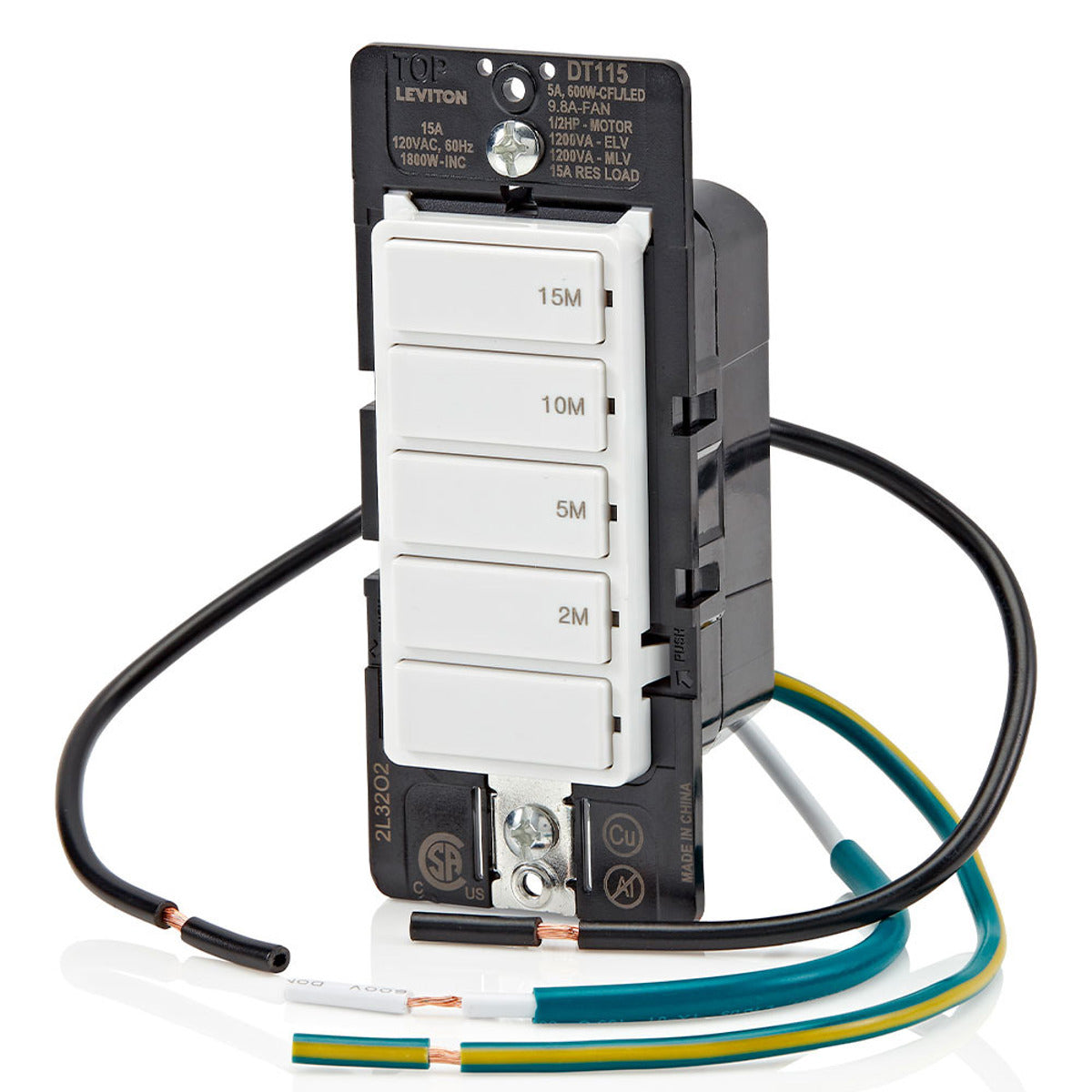

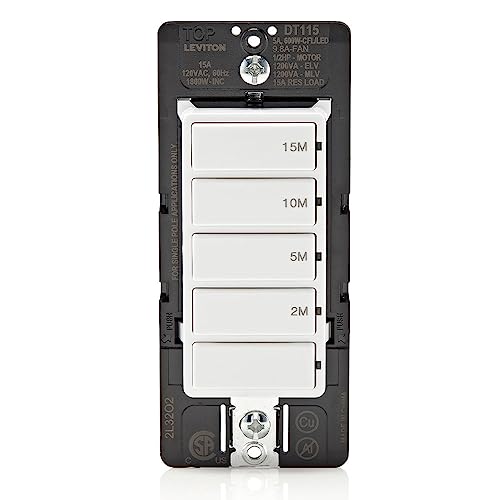

Leviton DT115-1LW WH Single Pole Decimal Timer 15A (5-Key 2/5/10/15 Min)

Product Description

Leviton DT115-1LW is a single-pole 15 A decimal countdown timer switch that provides five preset intervals (2, 5, 10, 15 minutes plus manual off) for timed control of lighting and fan loads. The in-wall Decora-style device operates at 120 VAC, supports up to 1/2 HP (9.8 A) for motor loads, and can be installed without a neutral wire. It uses lead terminations and a slim depth for easier wall box fit.

• Five-button countdown with preset intervals: 2, 5, 10, 15 minutes and manual off.
• Electrical rating: 15 A at 120 VAC; supports up to 1/2 HP (9.8 A) for fan/motor loads; compatible with LED, CFL, incandescent, halogen, magnetic and electronic low-voltage, and fluorescent loads (600W LED/CFL, 1800W incandescent/halogen, 1200 VA low-voltage/fluorescent).

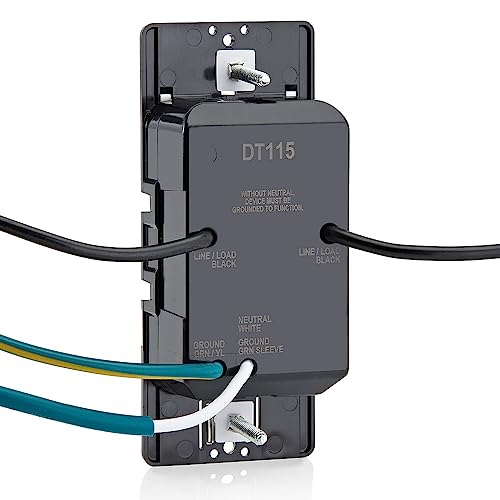

• Installation features: single-pole in-wall mounting, no neutral required, interchangeable line/load wires, Green Flex Sleeve for grounding or neutral connection, lead terminations, and <1 W power consumption.

Product Highlights

Single-pole 15 A in-wall Decora countdown timer with 2/5/10/15-minute presets, manual off, 120 VAC operation, and support for 1/2 HP motor loads.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: DT115-1LW
• Country of Origin: China
