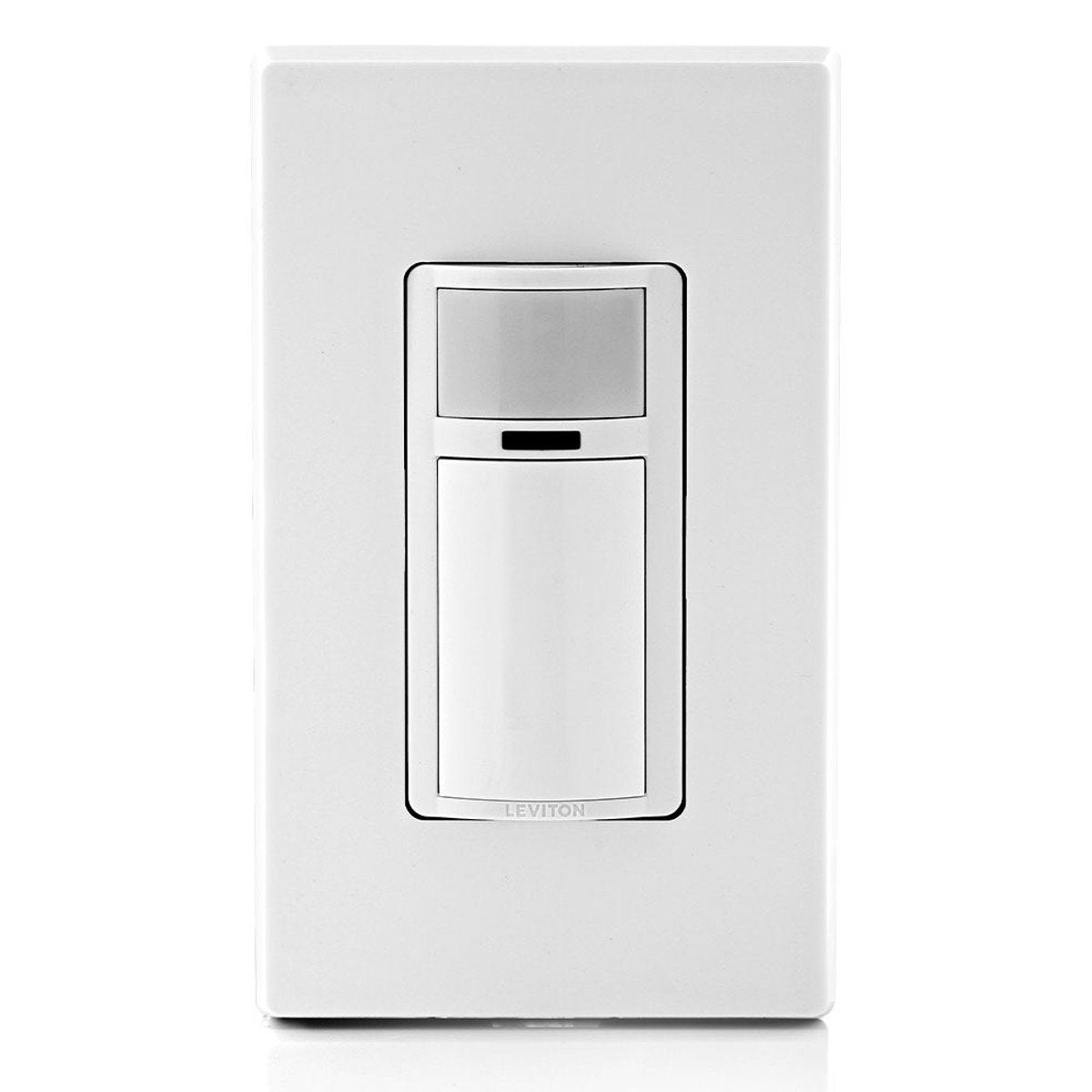

Leviton DOS15-1LZ WH/IV/LA OCC SENSOR 1800WINC 600WLED

Product Description

The Leviton DOS15-1LZ is an occupancy sensor designed for efficient lighting control. This sensor operates at one hundred twenty volts and has a fifteen amp capacity. It uses passive infrared technology to detect motion and automatically turn lights on and off, making it ideal for residential applications.

• Passive infrared motion detection
• Suitable for wall mounting
• Coverage up to nine hundred square feet

Product Highlights

This product integrates easily into existing walls and is designed for both single pole and multi-way configurations. It offers flexibility with multiple time delay settings ranging from one to twenty minutes.

Product Information

Standard Information

• Brand: Leviton
• Catalog Number: DOS15-1LZ

Technical Specifications

• Voltage Rating: 120 VAC
• Amperage Rating: 15 A
• Coverage Area: 900 sq-ft
• Mounting Type: Wall
• Sensor Type: Passive Infrared
• Viewing Angle: 180 degrees
• Time Delay Options: 1, 5, 10, 20 minutes
• Lamp Type: LED/CFL
