Leviton DOS05-1LZ WH/IV/LA OCC SENSOR 600WINC 300WLED

Product Description

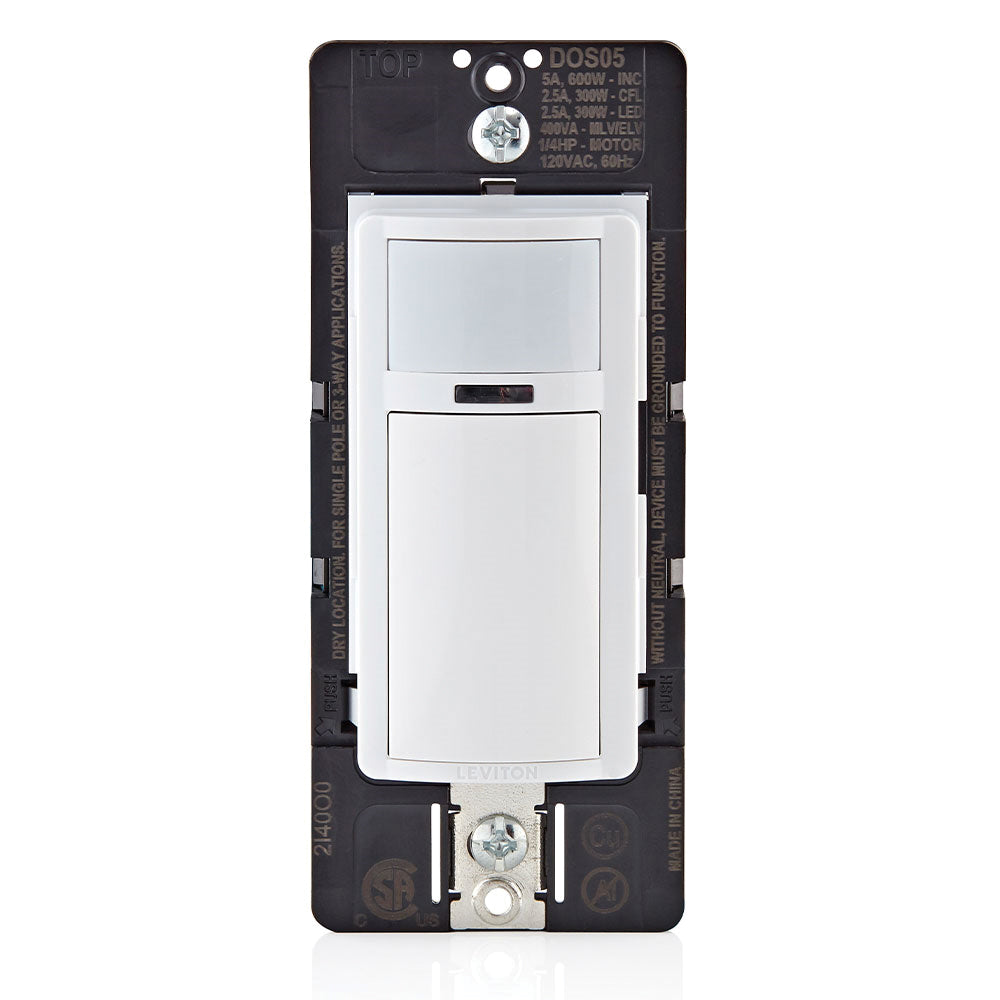

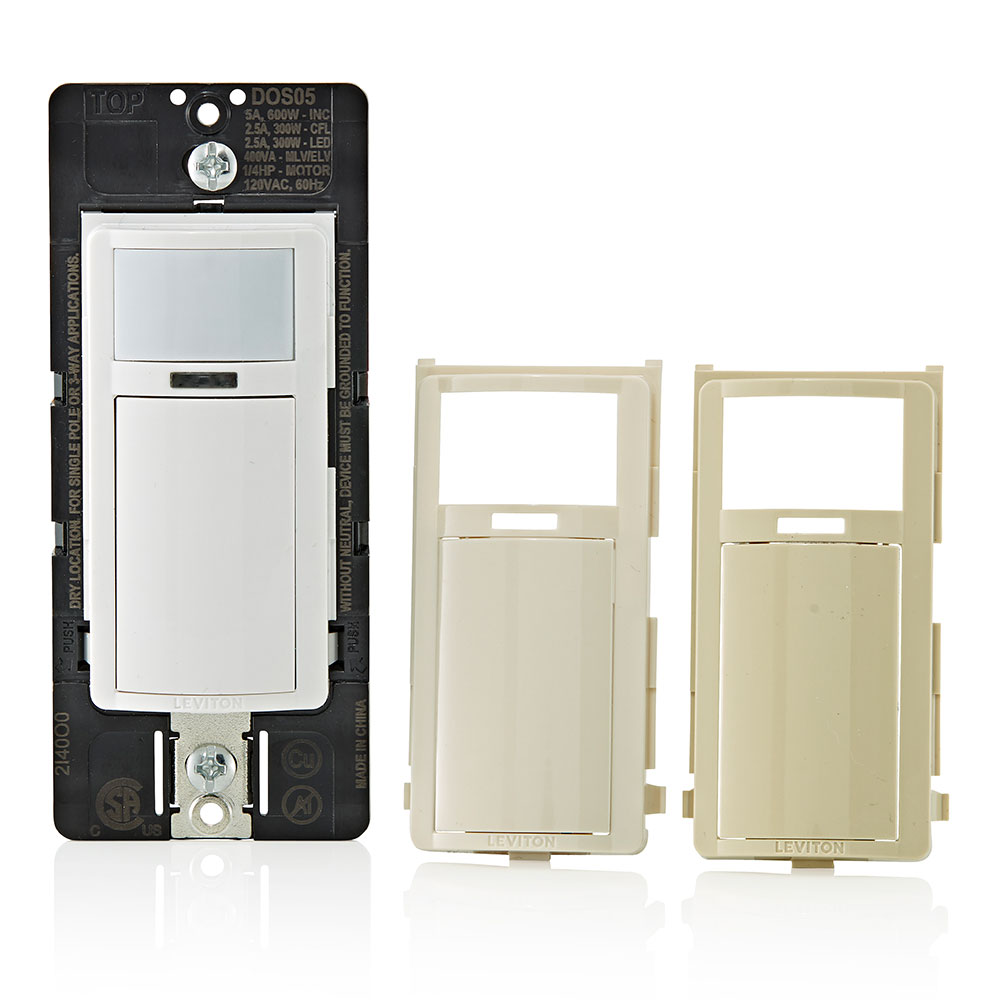

The Leviton DOS05-1LZ is a Decora occupancy motion sensor light switch. This device features a passive infrared sensor that detects movement and controls lighting automatically. It can be used as a single-pole switch or in a three-way configuration, making it versatile for various installations. The sensor supports up to 600 watts for incandescent or halogen bulbs, and up to 300 watts for LED and CFL. It is designed for residential use, suitable for areas such as bathrooms, closets, and laundry rooms.

• 180-degree field of view
• 900 square feet coverage area
• Adjustable delay settings for automatic off

Product Highlights

This sensor is compliant with California Title 24 regulations, ensuring it meets energy efficiency standards.

Product Information

Standard Information

• Manufacturer: Leviton
• Type: Auto-On/Off

Technical Specifications

• Voltage: 120 VAC
• Amperage: 5 A
• Power Rating: 300 W LED/CFL, 600 W Incandescent/Halogen
• Coverage: 900 sq ft
• Response Frequency: 60 Hz
• Mounting Type: Wall
• Control Output: Auto On/Off
• Viewing Angle: 180 degrees
