Leviton DOS02-LW WH OCC SENSOR 250WINC 150WLED 120V

Product Description

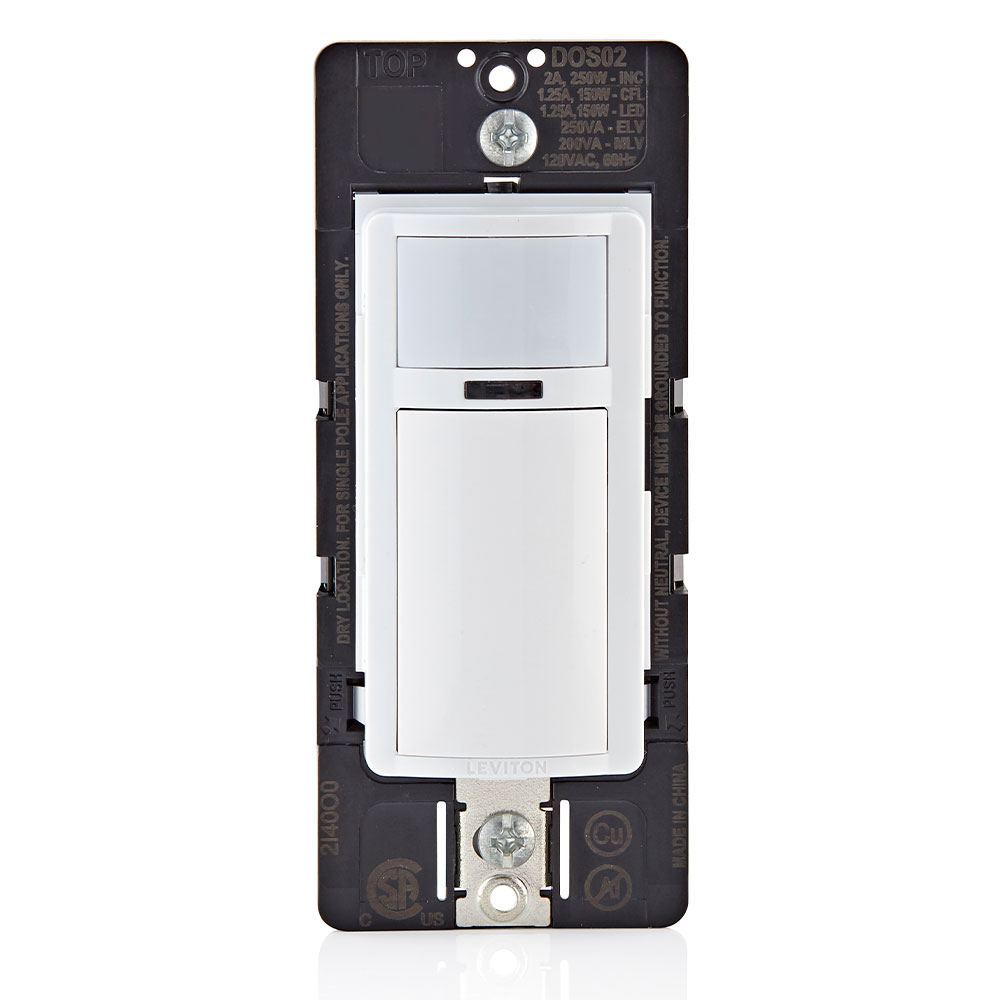

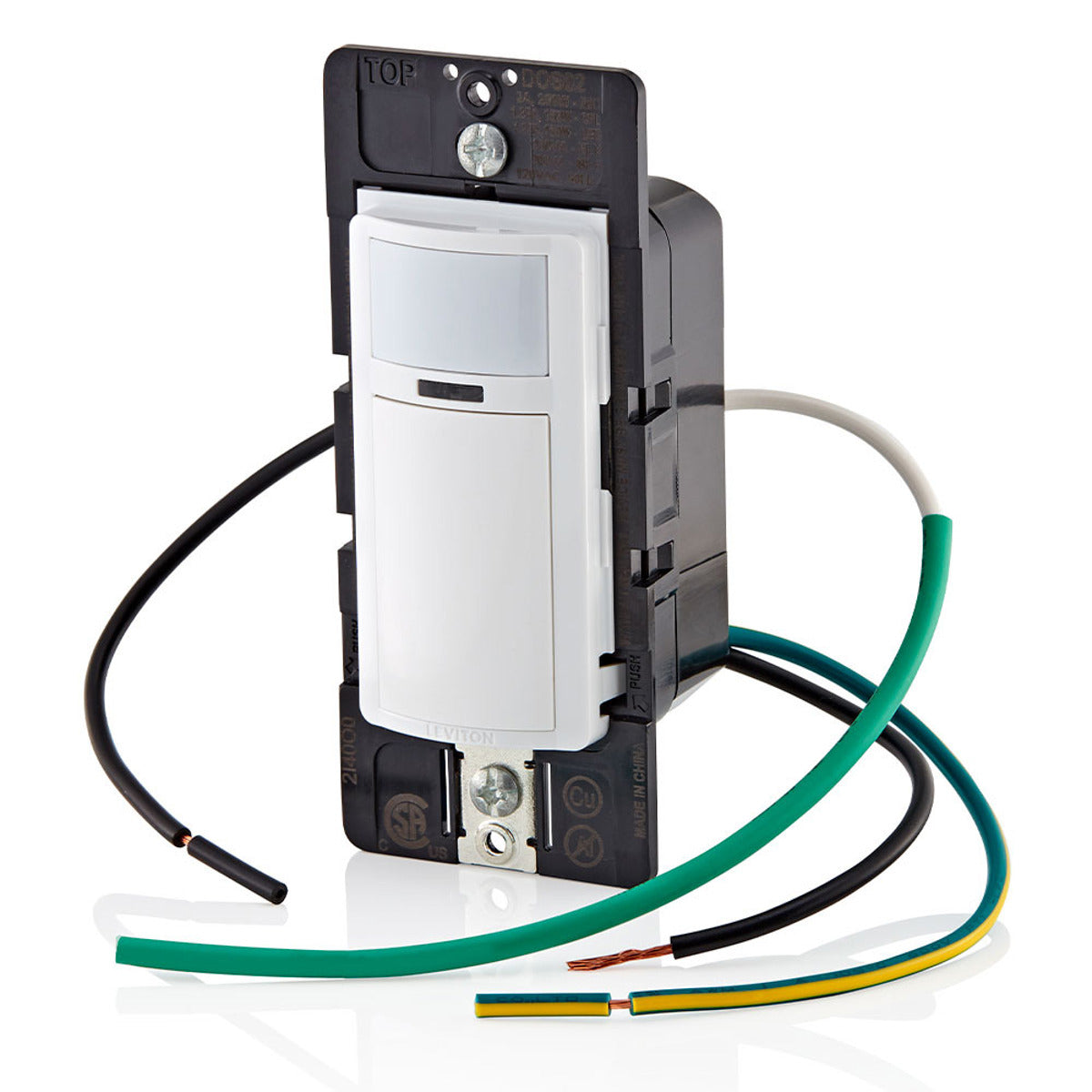

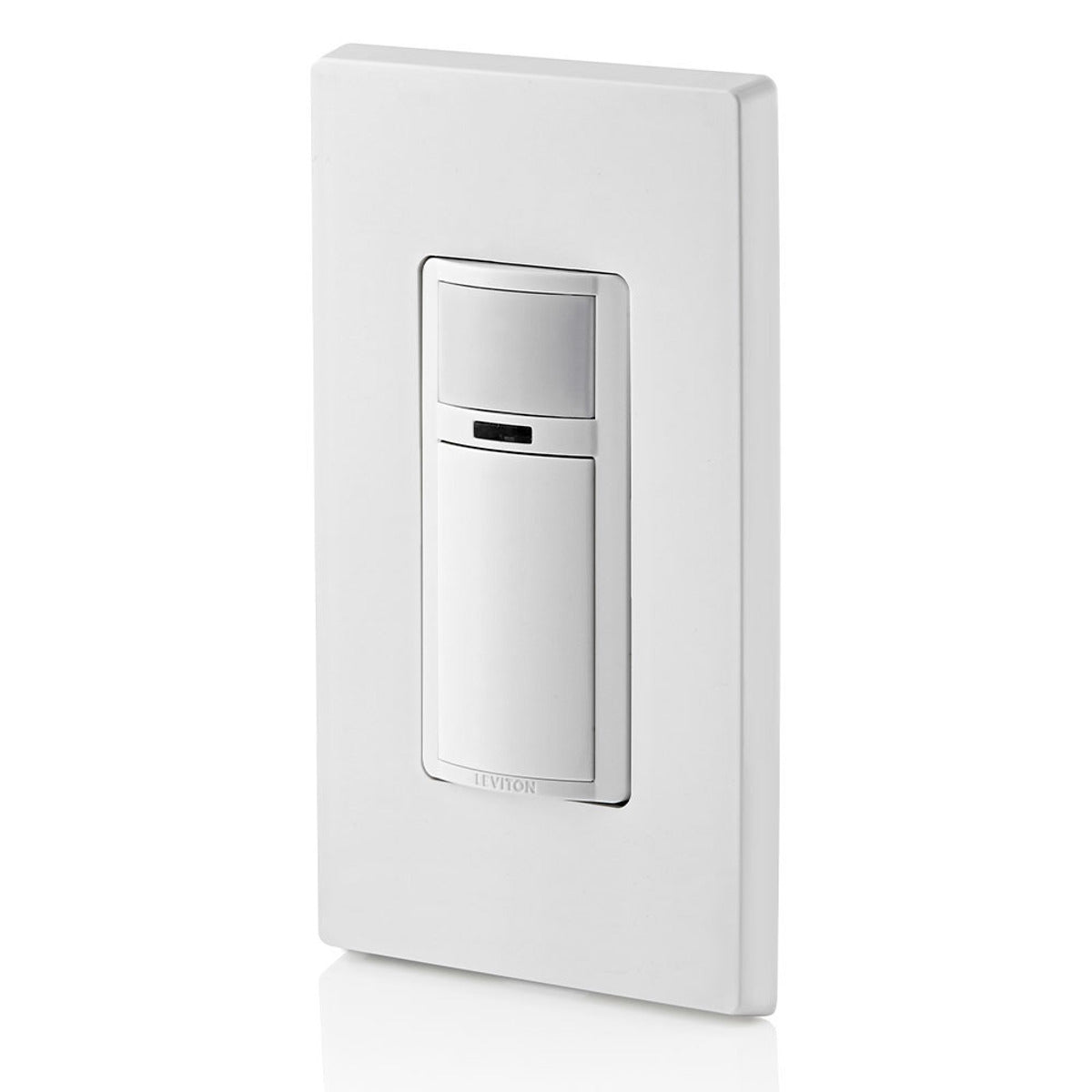

The Leviton DOS02-LW is a Decora occupancy motion sensor light switch. This device includes passive infrared technology to automatically turn lights ON or OFF based on detected motion. It is suitable for single pole applications with support for various lamp types.

• Automatic ON/OFF operation
• Covers up to nine hundred square feet
• Compatible with multiple lamp types including LED and halogen

Product Highlights

The sensor is specifically designed for residential use in areas such as pantries, closets, and laundry rooms. Its slim design makes it easy to install in standard wallboxes.

Product Information

Standard Information

• Brand: Leviton
• MPN: DOS02-LW

Technical Specifications

• Voltage Rating: 120 VAC
• Amperage Rating: 2 A
• Power Rating: 150 W LED/CFL, 250 W Incandescent/Halogen
• Coverage Area: 900 sq-ft
• Viewing Angle: 180 degrees
• Response Frequency: 60 Hz
• Time Delay Options: 1 min, 5 min, 10 min, 20 min
• Connection Type: Neutral/Earth Ground Wire
• Compliance: California Title 24
