Product Description

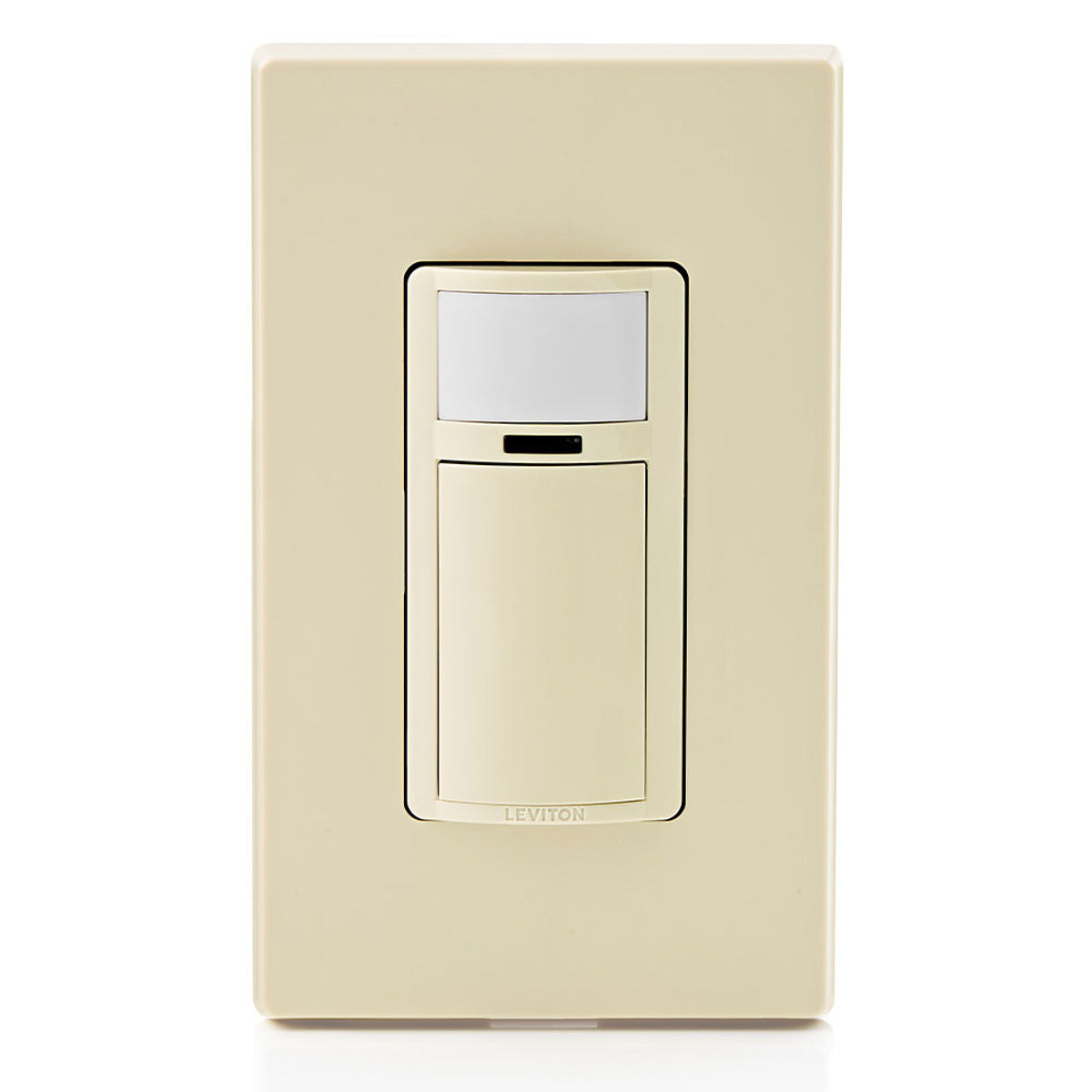

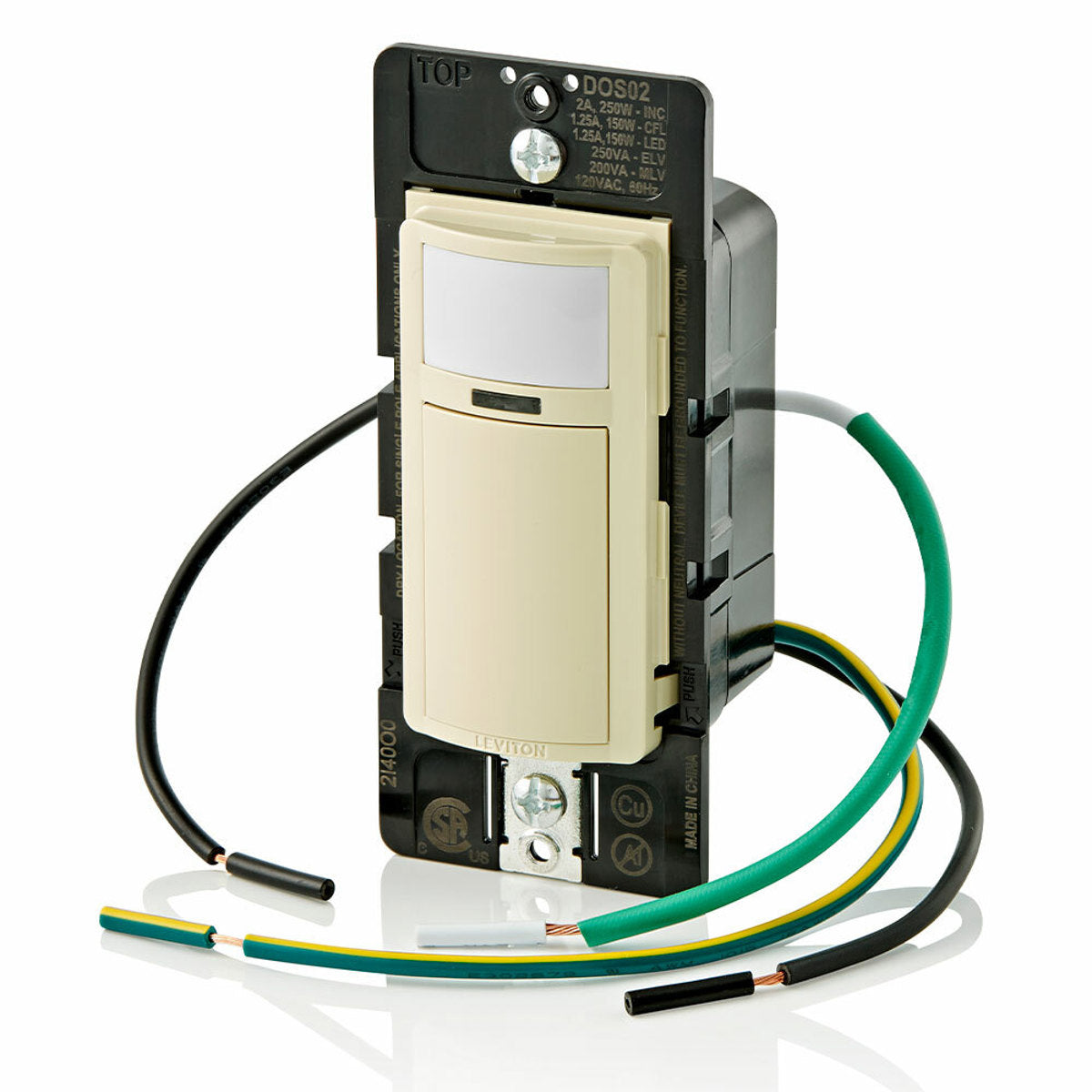

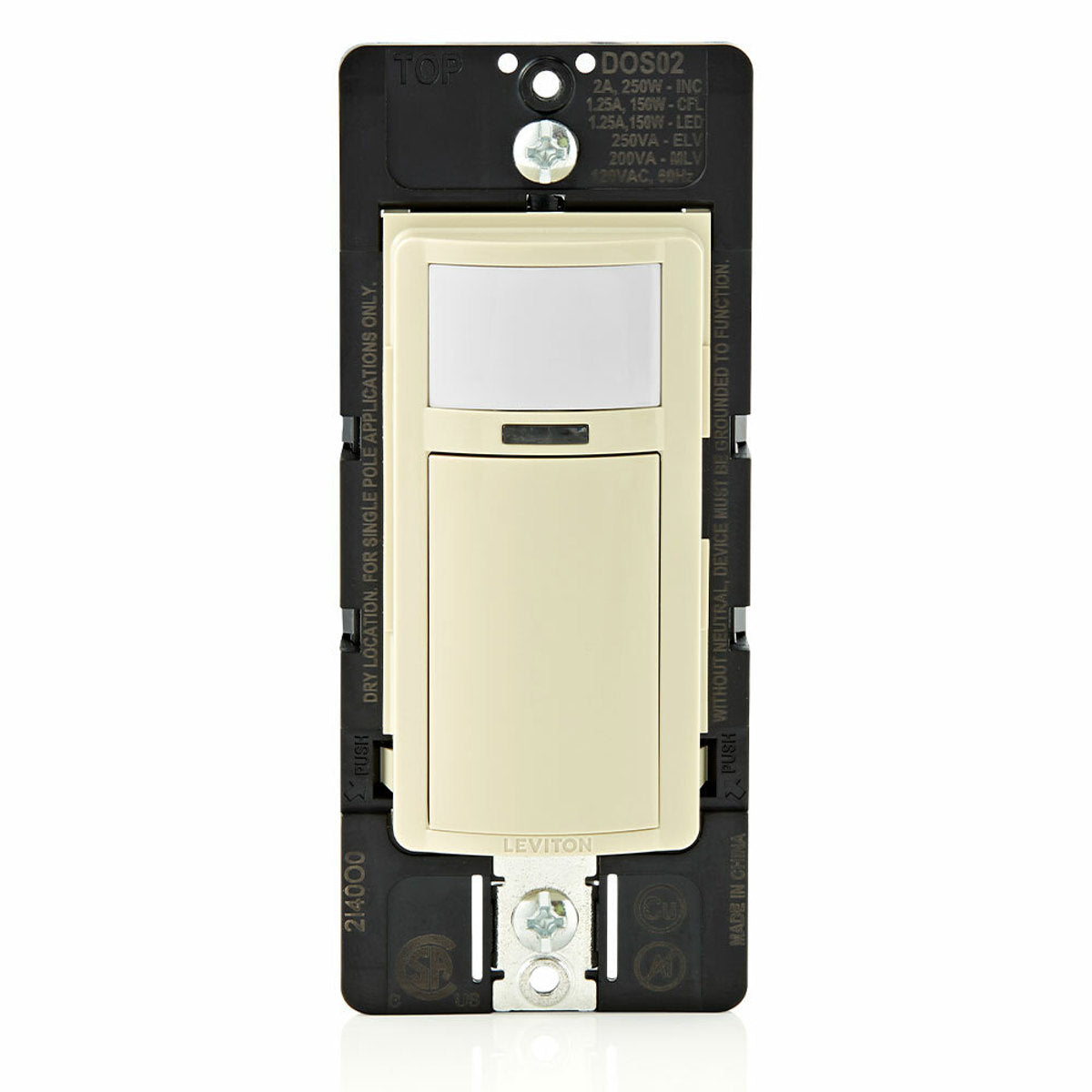

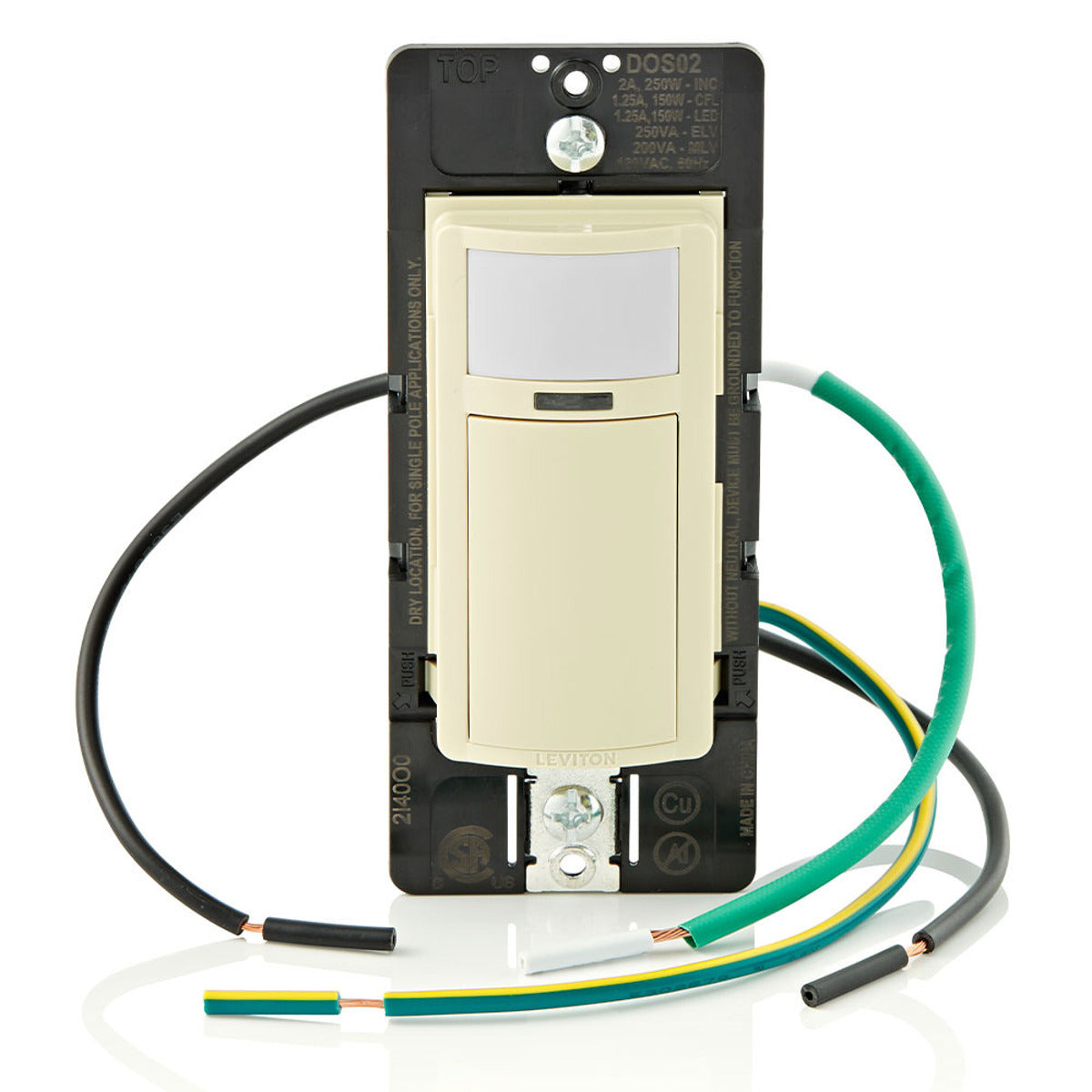

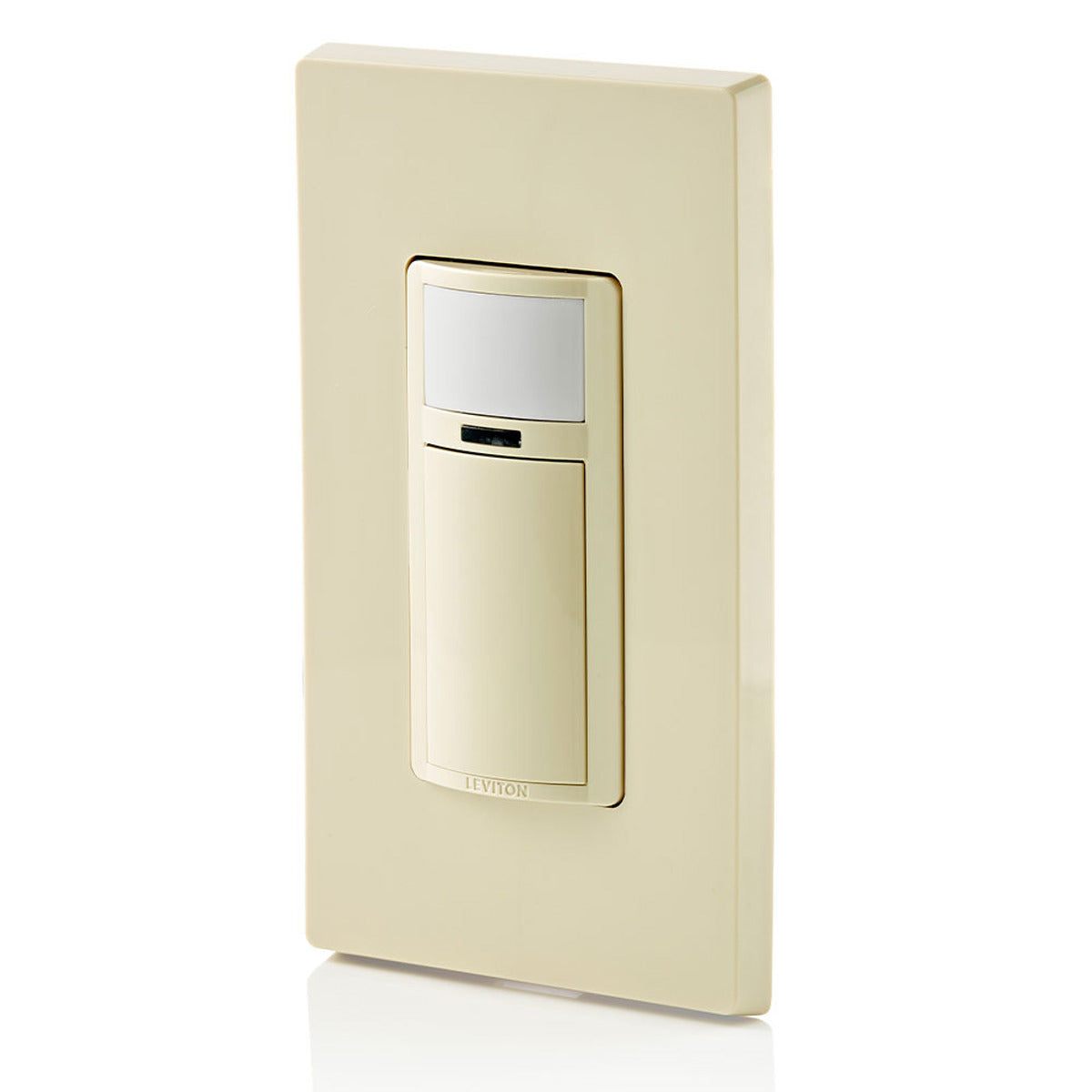

The Leviton DOS02-1LI IV OCC SENSOR is a 1-pole relay occupancy motion sensor designed for 120 VAC operation. This passive infrared sensor provides 900 sq-ft coverage with a 180-degree viewing angle. It features adjustable delayed-off time settings and can be used to comply with 2019 California Title 24, Part 6 vacancy control device requirements.
- Adjustable range (sensitivity) to fit various coverage areas
- Convenient pushbutton provides manual-Off light switching at any time
- Can be used to comply with 2019 California title 24, part 6 vacancy control device requirements
Product Highlights
This sensor controls LED, CFL, incandescent, halogen, magnetic low voltage, electronic low voltage or motor loads and fits easily in a standard wallbox.
Product Information
Standard Information
-
Brand: Leviton
-
Manufacturer Part Number: DOS02-1LI
-
Country of Origin: China
Technical Specifications
-
Catalog Number: DOS02-1LI
-
Manufacturer: Leviton
-
Brand: Leviton
-
Country of Origin: China
-
Made in USA: No
-
UPC: 078477572535
-
GTIN: 00078477572535
-
Amperage Rating: 2 A
-
Application: Bathrooms, Garages, Hallways, Basements, Utility/Laundry Rooms, Pantries, Walk-In Closets, Mudrooms, Indoor and Residential Applications
-
Connection Type: Neutral/Earth Ground Wire
-
Control Output: Auto On/Off
-
Coverage: 900 sq-ft
-
Enclosure: NEMA WD7
-
Lamp Type: CFL/Halogen/Incandescent/LED
-
Mounting Type: Wall
-
Power Rating: 150 W, 250 W, 200 VA, 250 VA
-
Response Frequency: 60 Hz
-
Sensor Type: Passive Infrared
-
Series: DOS02
-
Standards/Approvals: California Title 20/24|CSA C22.2 File No. 205|FCC Certified|NEC Certified|NOM 57|UL 773A
-
Temperature Rating: 0 to 40 deg C
-
Time Delay: 1/5/10/20 min
-
Type: 1-Pole
-
Viewing Angle: 180 deg
-
Voltage Rating: 120 VAC
-
Manufacturer Item Status: Active
-
Brand Name: Leviton
-
Alternative Part Number: 16924579
-
Coverage (Sq.Ft.): 180°, 900 Sq. Ft
-
Response Frequency UOM: Hz
-
Temperature Rating UOM: deg C
-
Time Delay UOM: min
-
Viewing Angle UOM: deg
-
Voltage Rating UOM: VAC
-
Auto-ON/Auto-OFF: Yes
-
California Title 24: Yes
-
Grade: Residential
-
LED Color: Green and Red
-
Load Rating: 150W LED/CFL, 250W Incandescent/Halogen, 250VA ELV, 200VA MLV, 2A Resistive
-
Neutral: Optional
-
Pole: 1
-
Sensor Technology: Passive Infrared
-
Switch: Relay
-
Style Name: Decora
-
Wiring: Ground or Neutral Required
-
Operation Mode: ON-OFF-ON
-
Current Rating: 2 Amps
-
Operating Voltage: 120 Volts
-
Circuit Type: 1-way
-
Compatible Devices: LED, CFL, Incandescent, Halogen, Magnetic Low Voltage, Electronic Low Voltage, Resistive loads
-
Package Quantity: 1
