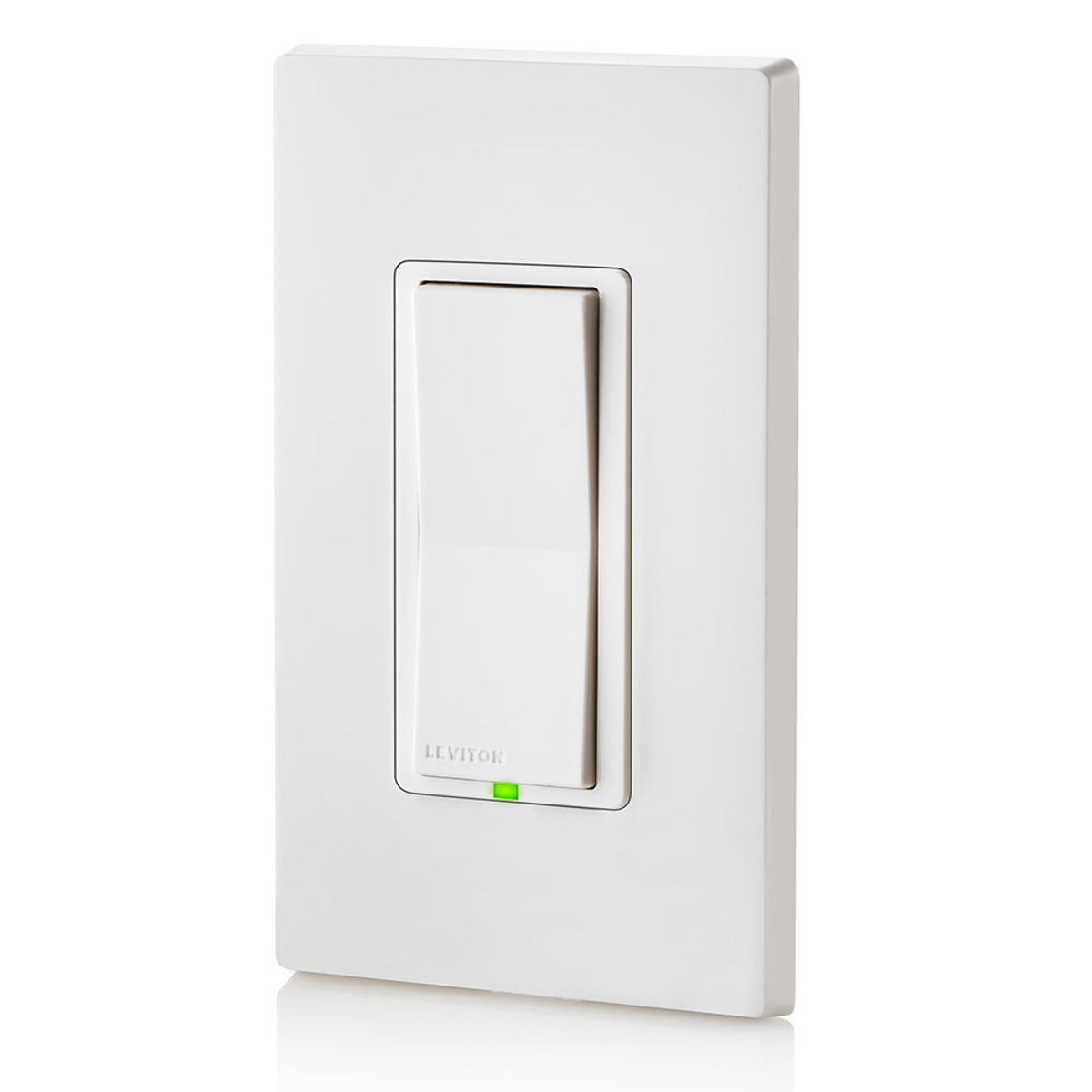

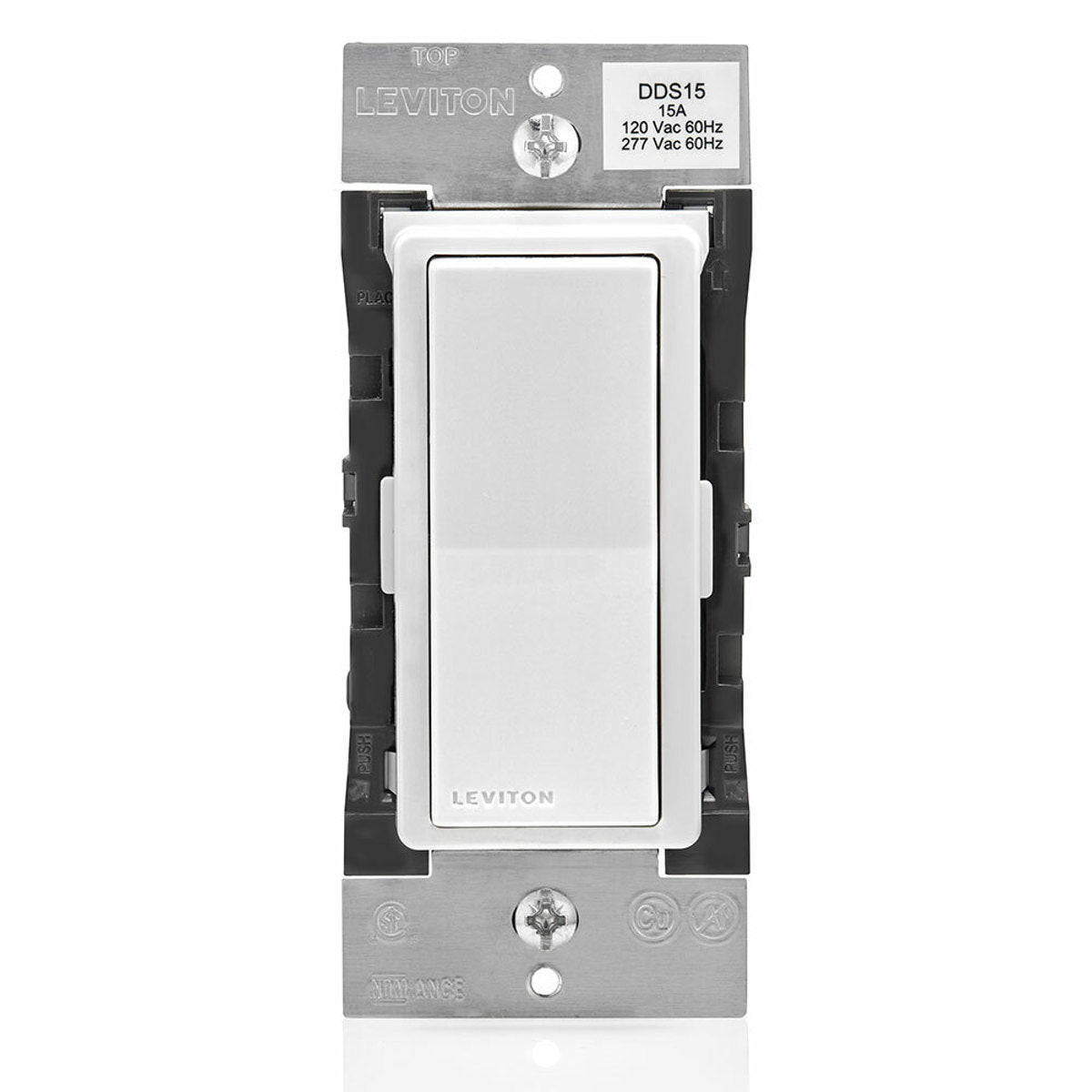

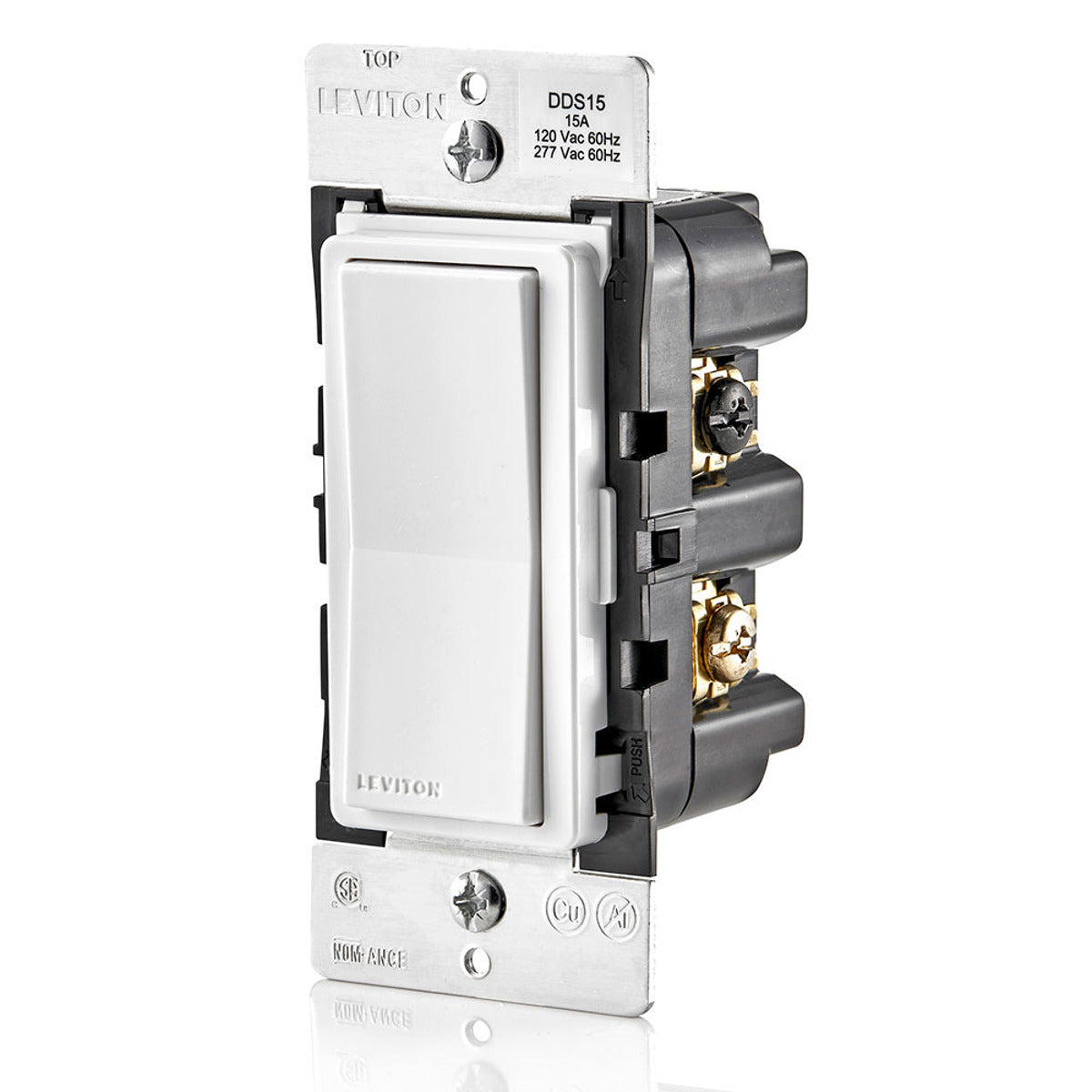

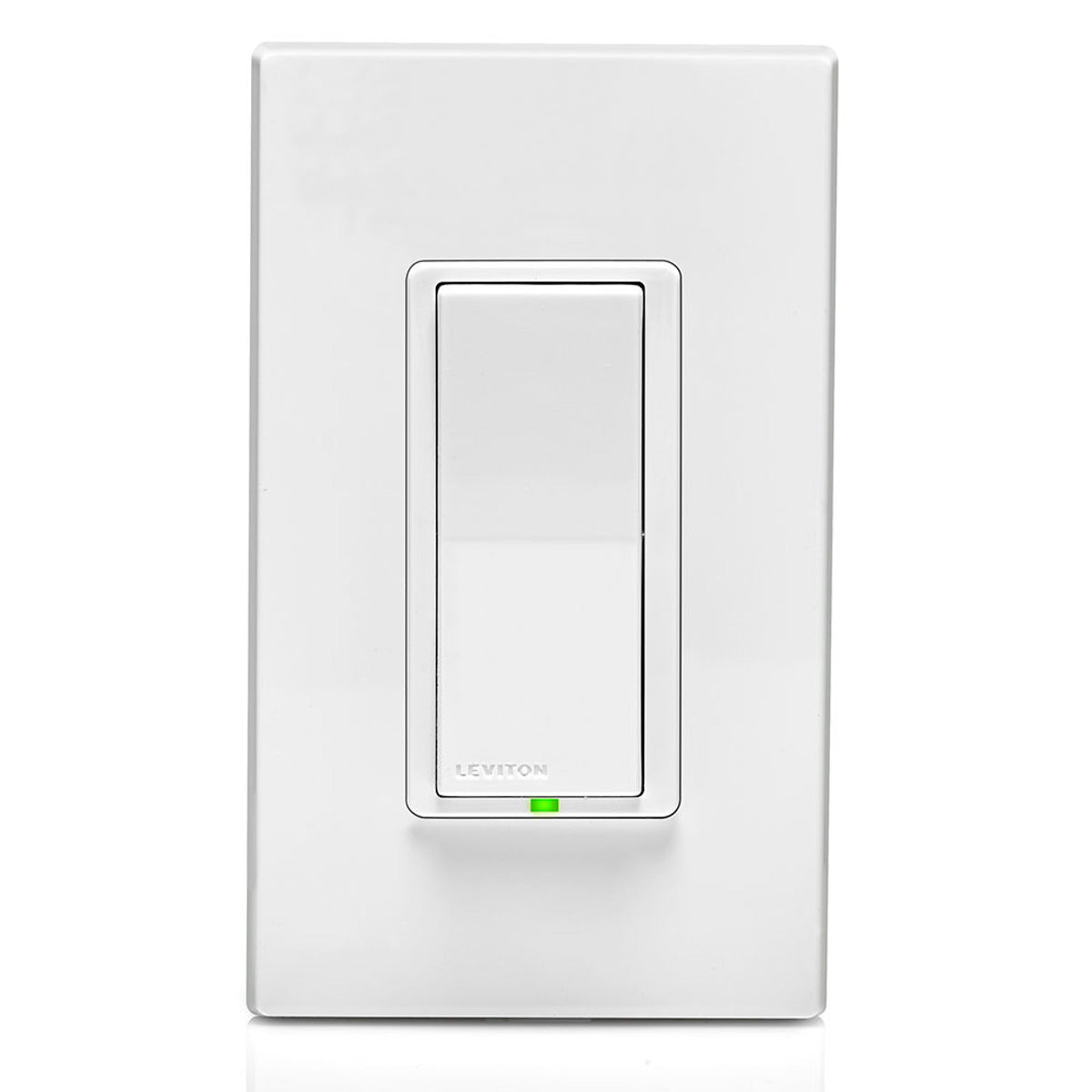

Leviton DDS15-BDZ Decora Digital Switch and 24 hour Timer 1800W

Product Description

The Leviton DDS15-BDZ Decora Digital Switch and 24 hour Timer is rated for 1800W Incandescent (120V), 15A Fluorescent (120V), 6A Fluorescent (277V), 5A 600W LED/CFL (120V), 15A Resistive (120V), and 1/2 HP Motor (120V). It supports single pole and 3-way/multi-location control and includes an LED locator. Neutral wire is required.

• Timer
• Compatible with Apple and Android smartphones or tablets
• Astronomical clock automatically adjusts to local sunrise/sunset times

Product Highlights

This digital switch and timer combines Leviton's dimmer and timer functions with modern technology. Control and adjust lighting via smartphone or tablet with Bluetooth technology.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: DDS15-BDZ
• Country of Origin: China

Technical Specifications

• Catalog Number: DDS15-BDZ
• Manufacturer: Leviton
• Brand: Leviton
• Sub Brand: Decora
• Country of Origin: China
• Made in USA: No
• Application: Residential Applications
• Special Features: Timer
• UPC: 078477728529
• GTIN: 00078477728529
• Item Type: Switch
• Voltage Rating: 120/277 VAC
• Includes: Ivory, Light Almond Faceplates
• Lamp Type: Fluorescent/Incandescent/LED
• Mounting Type: Wall
• Number of Poles: 1
• Power Rating: 0.5 hp
• Standards/Approvals: Bluetooth SIG|CSA Certified|FCC Approved|NOM Certified|Title 24 Compliant
• Temperature Rating: 0 to 40 deg C
• Type: Dual Voltage Multi-Location
• Action: Rocker Switch for ON/OFF
• Amperage: 15 A
• Available Colors: Ivry-I Wht-W Gry-G Blk-E Brwn-B Light Almond-T
• Color: White, Ivory, Light Almond
• Feature: Single-Pole, 3-Way or More Applications
• Grounding: Grounding
• LED Color: Green
• Light: LED Indicator
• Load Rating: 1800W Incandescent, 15A Fluor (120V), 6A Fluor (277V), 600W LED/CFL, 15A Resistive, 1/2 HP Motor
• Load Type: Incandescent, LED, CFL, Fluorescent, Resistive, Motor
• Ordering Notes: Incl White, Ivory and Light Almond Color Kit
• Pole: 1
• Standards and Certifications: CSA, NOM, Bluetooth SIG, FCC
• Style Name: Decora
• Termination: Side
• Timer Type: 24 Hour
• Wallplate: Order Separately
• Wireless Connectivity: Bluetooth
• Wiring Notes: Neutral required
