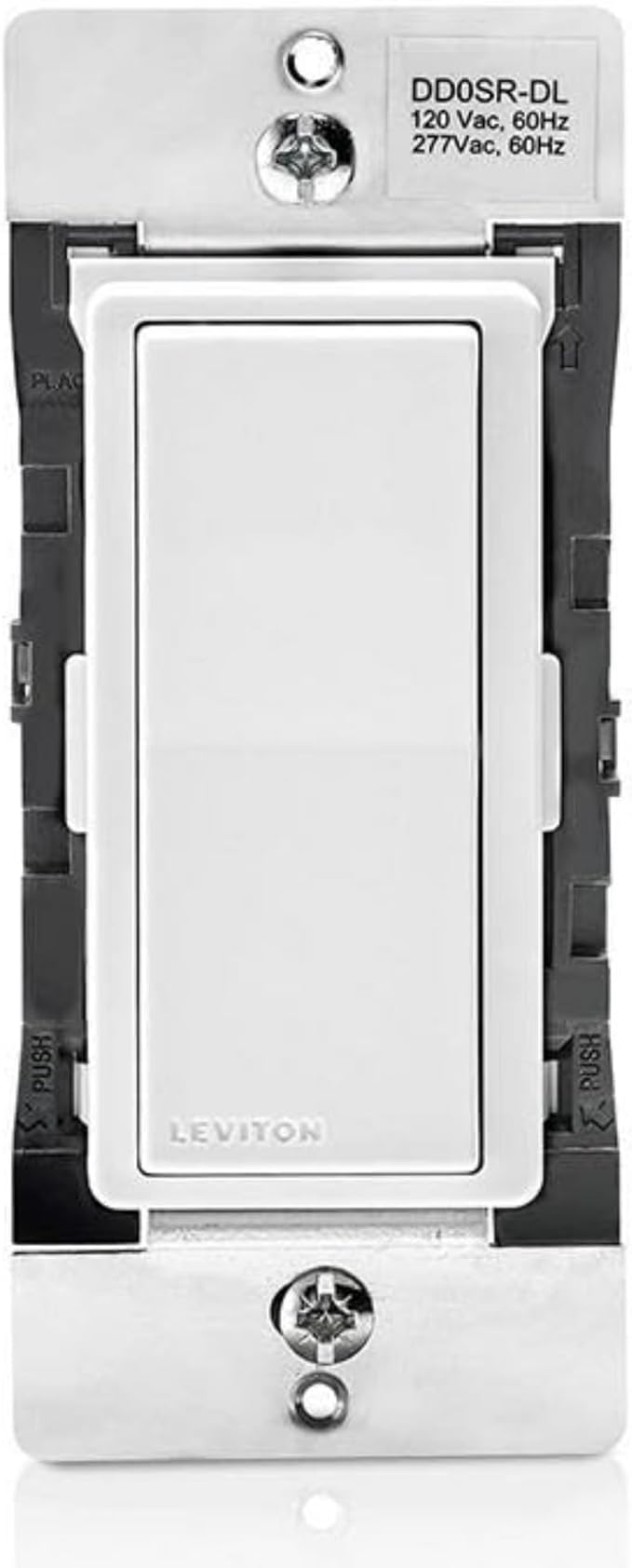

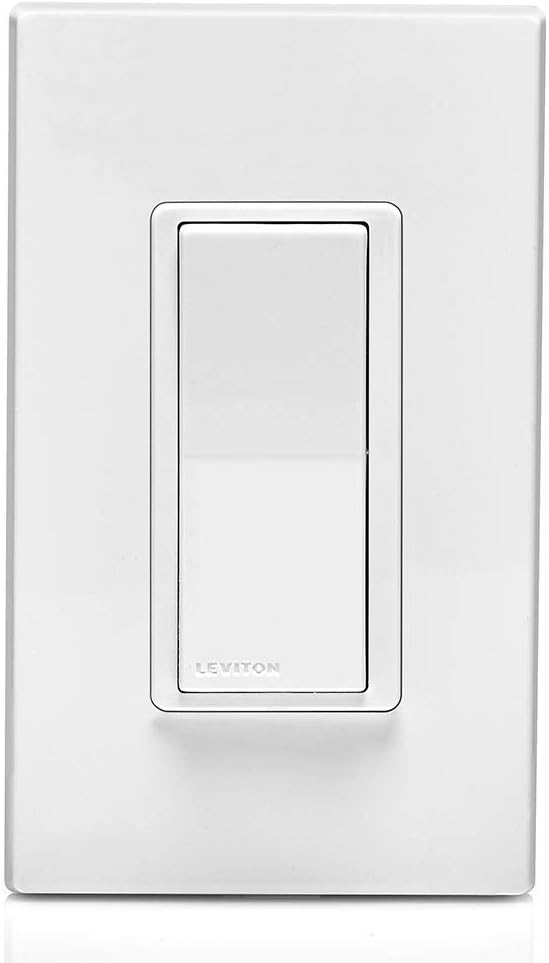

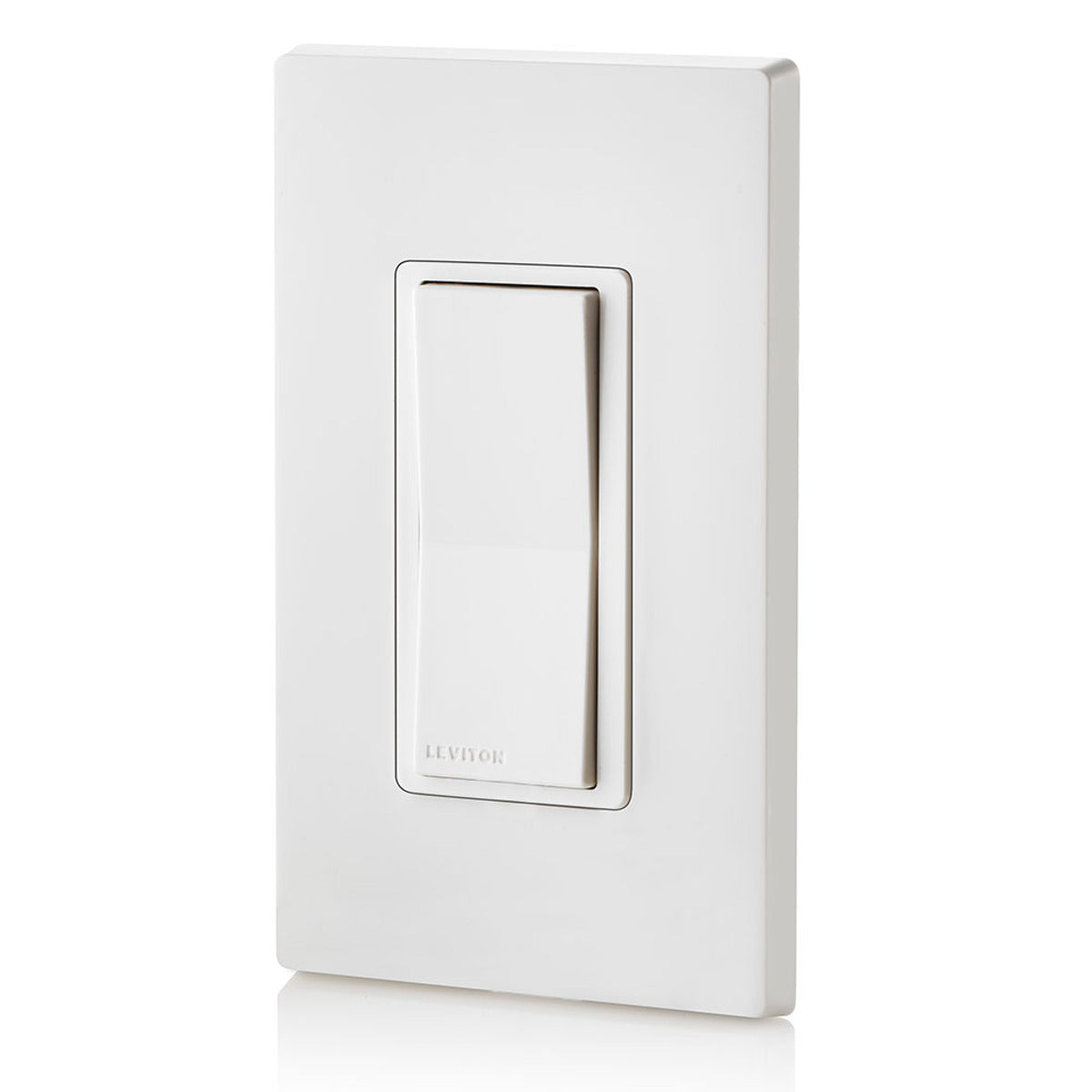

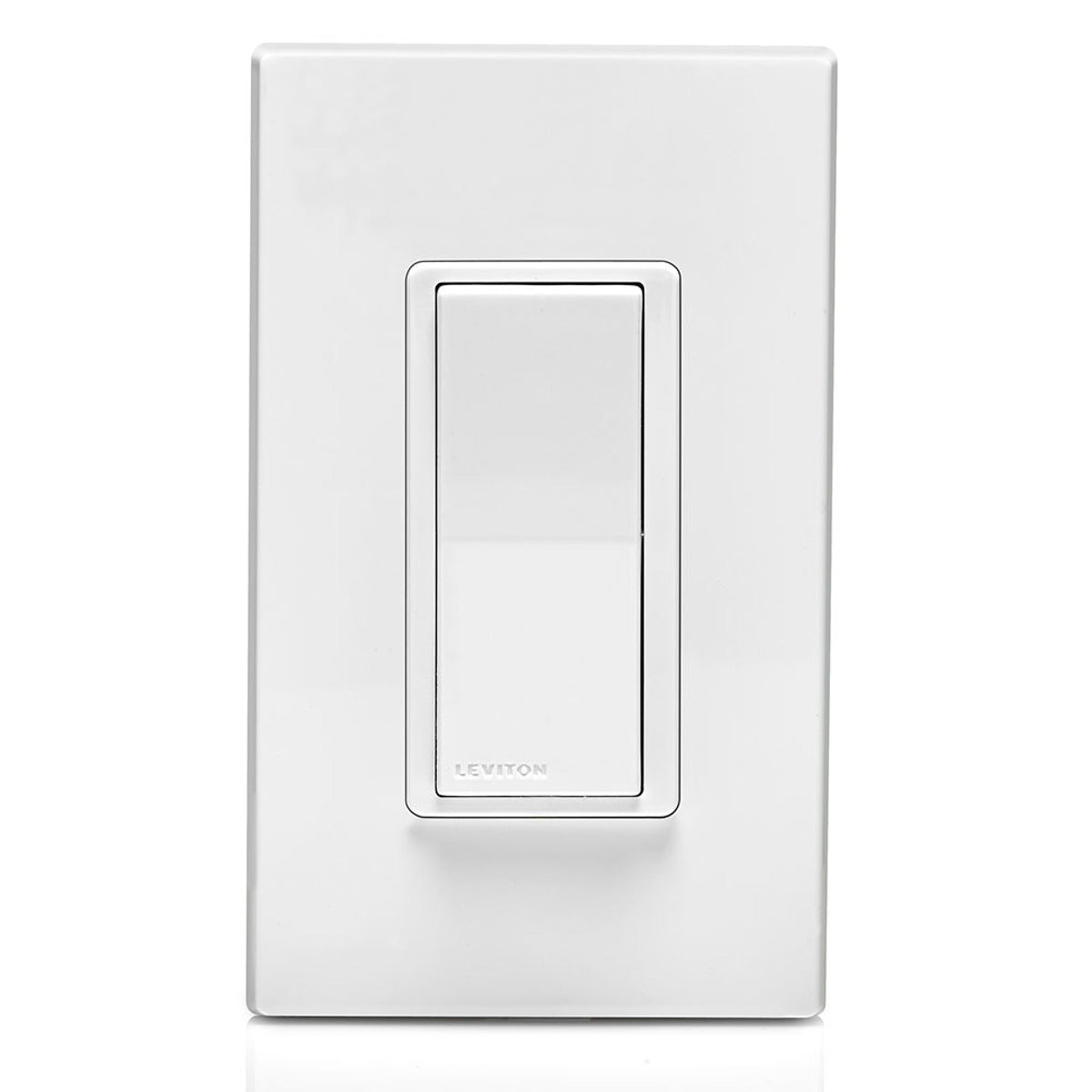

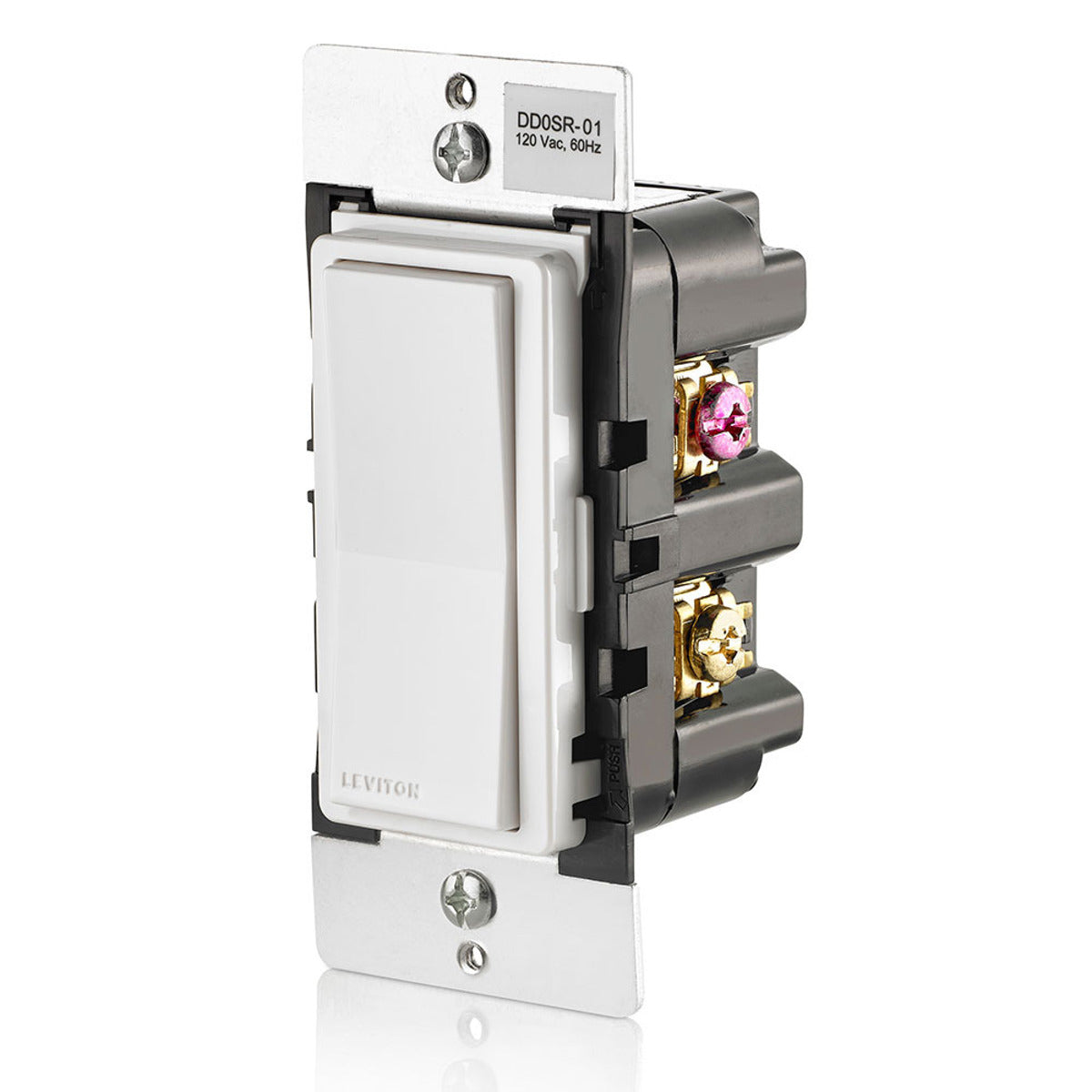

Leviton DD0SR-1Z Decora Smart Switch Companion for Multi-Location Switching, 120VAC, 60Hz

Product Description

The Leviton DD0SR-1Z Decora Smart Switch Companion is designed for multi-location applications and must be used with a Leviton Decora Smart or Decora Digital switch, dimmer, or fan speed control. It allows lighting or fans to be controlled from more than one location. It includes white, ivory, and light almond face plates.

• For 120VAC applications
• For use in 3-way or up to 9 additional locations
• Neutral wire or load side required for installation

Product Highlights

The Decora Smart Switch Companion offers multi-location control and is compatible with Leviton's Decora devices. It requires a primary Decora Smart or Decora Digital switch, dimmer, or fan speed control.

Product Information

Standard Information

• Brand: Leviton
• Manufacturer Part Number: DD0SR-1Z
• Country of Origin: China

Technical Specifications

• Brand Name: Leviton
• Product Line: Decora Smart
• Manufacturer Part Number: DD0SR-1Z
• Voltage: 120 Volts
• Operating Voltage: 120 Volts (AC)
• Circuit Type: 3-way
• Actuator Type: Push Button
• Operation Mode: On/Off
• Specification Met: Ul Listed
• Batteries Included?: No
• Batteries Required?: No
• Number of Positions: 2
• International Protection Rating: IP54
• Type: Companion Device
• Action: Rocker Switch for ON/OFF
• Feature: 3-way or Up to 9 Location Applications
• Voltage Rating: 120/277 VAC
• Grounding: Grounding
• Wallplate: Order Separately
• Style Name: Decora
• Termination: Side
• Wiring Notes: Neutral or load side required. For use with 120VAC applications only
• Standards and Certifications: CSA, NOM
• Country of Origin: China
• Sub Brand: Decora®
• Used With: Decora Digital or Decora Smart Switches
• Catalog Number: DD0SR-1Z
• Manufacturer: Leviton
• Application: Residential
• Special Features: Coordinating Remote
• Item Type: Remote Switch
• Frequency Rating: 60 Hz
• Switch Type: On/Off
• Terminal: Screw
• Material: Plastic
• Contact Material: Metal
• Wattage: 600 watts
• Compatible Devices: Leviton Decora Smart, Decora Digital, Decora switch, dimmer, fan speed control
• Contact Type: Normally Closed
• Connector Type: Screw Terminals
• Lower Temperature Rating: 70 Degrees Fahrenheit
• Upper Temperature Rating: 100.12 Degrees Fahrenheit
