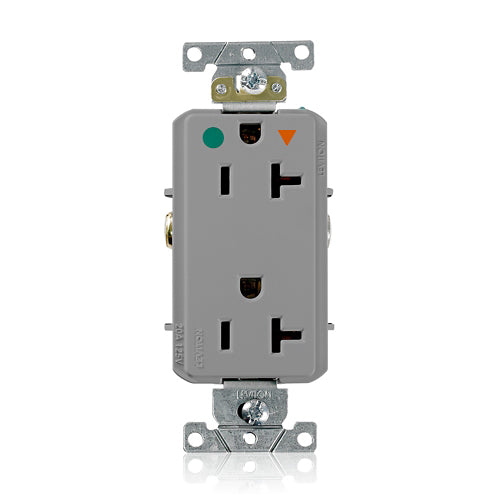

Leviton D8300-IG Decora Plus Isolated Ground Duplex Receptacle/Outlet 20 Amp

Product Description

The LEVITON D8300-IG is a Decora Plus isolated ground duplex receptacle outlet. This heavy-duty, hospital-grade receptacle features a smooth face and is rated for 20 Amp and 125 Volt. Designed for back or side wire installation, it is NEMA 5-20R, 2-pole, 3-wire, and self-grounding.

• Heavy-Duty Hospital Grade
• Smooth Face
• Self-Grounding
• Isolated Ground

Product Highlights

Leviton D8300-IG Decora Plus receptacle is ideal for sensitive electronic equipment.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: D8300-IG
• Country of Origin: Mexico

Technical Specifications

• Amperage: 20 A
• Voltage: 125 VAC
• Pole: 2
• Wire: 3
• Grounding: Self-Grounding
• Grade: Heavy-Duty Hospital Grade
• Face Material: PBT Polyester Blend
• Body Material: PBT Polyester Blend
• Device Type: Duplex Receptacle Outlet
• Function: Isolated Ground
• Standards and Certifications: cULus, NOM-ANCE
• Applicable Standards: UL 498, Fed Spec W-C-596, CSA C22.2. No. 42
• Flammability: Rated V-0 per UL 94
• Operating Temperature: -40
