Product Description

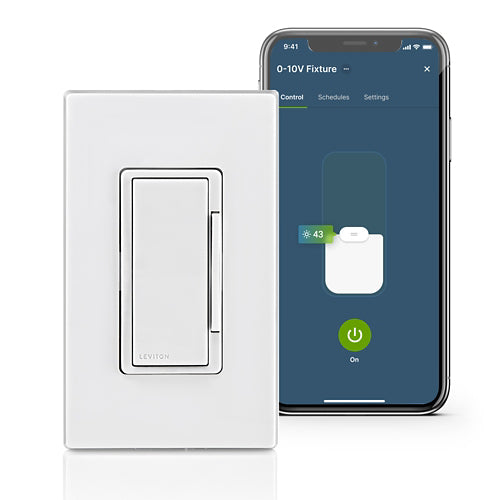

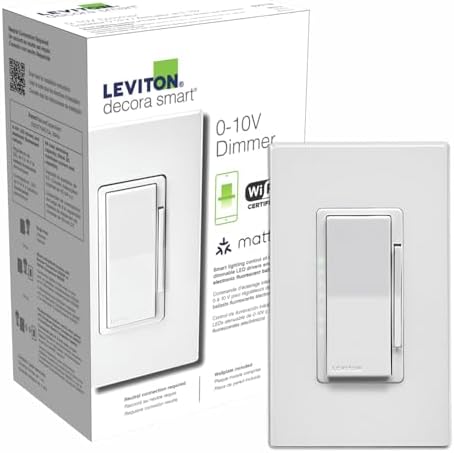

The Leviton D2710-1BW Decora Smart Wi-Fi 0-10V Dimmer Switch adds smart control to 0-10V dimmable LED drivers and electronic fluorescent ballasts. Dual voltage 120V/277V, no power pack required for On/Off switching. Use your voice for control without lifting a finger. Works with Google Assistant, Amazon Alexa, and Apple Siri.
- Enhance office, work, and home lighting – add smart control to 0-10V dimmable LED drivers and electronic fluorescent ballasts.
- Full range dimming – on/off and dim/bright control of 0-10V loads including Mark 7 Fluorescent Ballasts and LED fixtures/Electronic Ballasts; dual voltage 120V/277V; no power pack required for On/Off switching with high inrush stability; 50ma 0-10V “Sinking” current available.
- Performance you can rely on – selectable 0-10V dimming between Linear (default) and Logarithmic supports 0-10V fixture compatibility; ability to adjust min dim and max bright, at device or using the My Leviton app.
Product Highlights
Enhance lighting with smart control for LED drivers and fluorescent ballasts. Compatible with Alexa, Google Assistant, Apple Home, SmartThings, Sonos, and Matter.
Product Information
Standard Information
-
Brand: Leviton
-
Manufacturer Part Number: D2710-1BW
-
Country of Origin: China
Technical Specifications
-
Brand: Decora Smart Wi-Fi
-
Device Type: In-Wall Smart Dimmer
-
Grade: Residential
-
Hub Required: No
-
Load Rating: 8A 0-10V, 50mA DC maximum sink current
-
Neutral Required: Yes
-
Termination: Wire Leads
-
Voltage: 120/277VAC
-
Operating Temperature: 0°C to 40°C
-
Operating Humidity: 10% - 90% non-condensing
-
Strap Material: Metal
-
CSA: C22.2 No. 184.1
-
UL: 1472 UL listed for USA and Canada
-
FCC: Yes
-
Standards and Certification: Wi-Fi, Matter
-
Warranty: 1-Year Limited
-
Operation Mode: ON-OFF
-
Current Rating: 50 Milliamps
-
Contact Type: Normally Closed
-
Connector Type: Plug In
-
Switch Type: Push Button
-
Terminal: Screw
-
Circuit Type: 3-way
-
Mounting Type: Wall Mount
-
Number of Positions: 1
-
Lower Temperature Rating: 70 Degrees Fahrenheit
-
Upper Temperature Rating: 100 Degrees Fahrenheit
-
Control Method: Remote, Touch
-
Connectivity Protocol: Matter, Wi-Fi
-
Wattage: 300 watts
-
Compatible Devices: Amazon Alexa, Google Home, Apple Home, Matter compatible devices
-
Smart Home Compatibility: Smart Home Compatible
-
Manufacturer Part Number: D2710
-
Label: Decora Smart Wi-Fi Dimmer for 0-10V LED
-
Latest Firmware Version: 2.3.10
-
User Manual: https://leviton.com/products/d2710-1bw
-
Support URL: https://www.leviton.com/support
-
Product Page: https://leviton.com/products/d2710-1bw
-
Software Versions: 2.3.10
-
Latest: ✓
