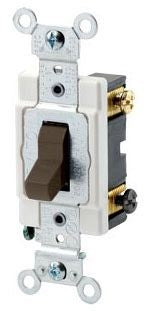

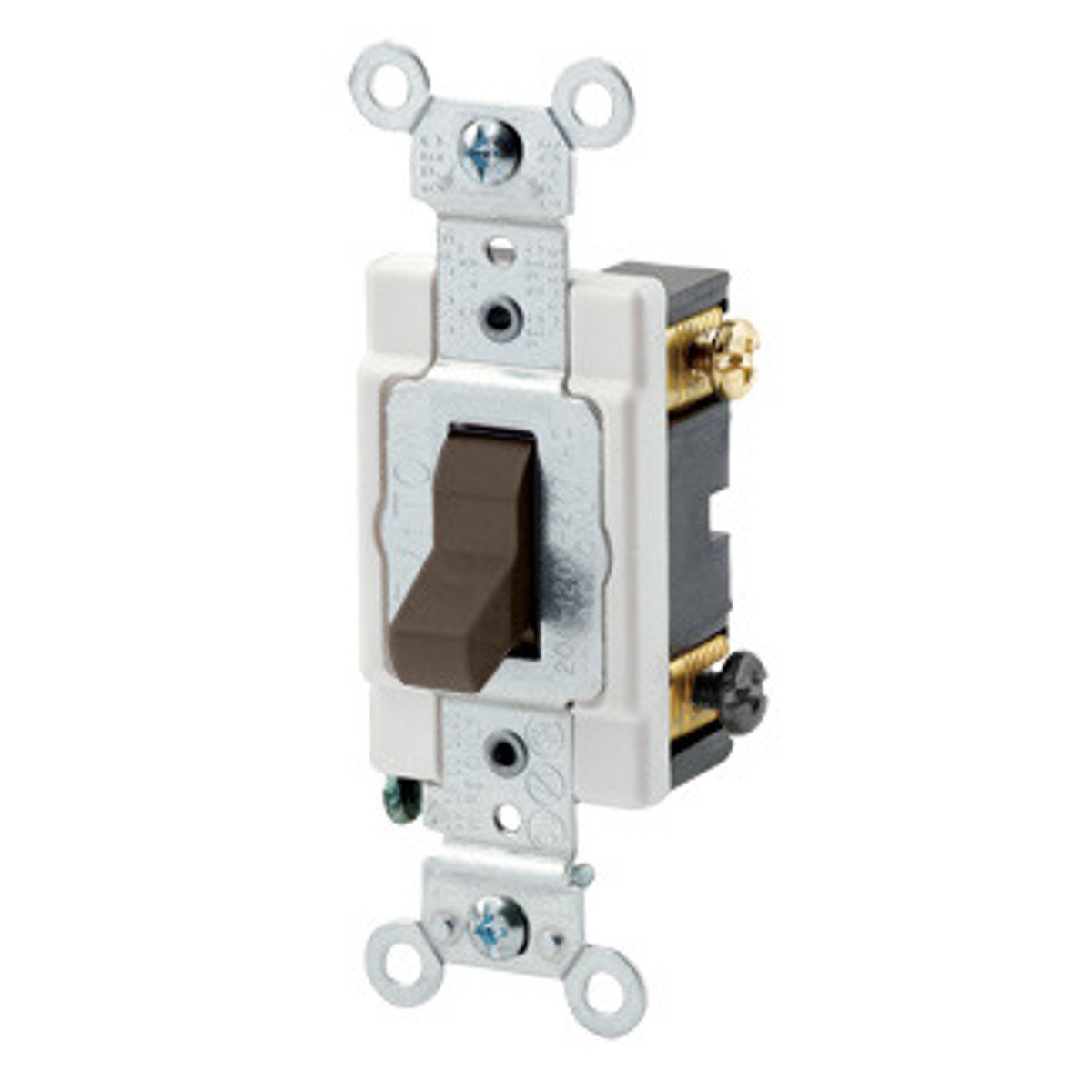

Leviton CSB4-20 Toggle Switch 120/277 VAC 20 Amp 4-Way

Product Description

The Leviton CSB4-20 is a 20 amp toggle switch designed for commercial applications. It operates at 120/277 volts and features a four-way design. This switch is suitable for grounding and offers both back and side wiring options. It is suitable for use in various settings including municipal facilities, hospitals, schools, and more.

• Suitable for 20 amps and 120/277 volts
• Ideal for commercial and industrial use
• Compatible with back and side wiring

Product Highlights

This toggle switch is built for durability and reliability, making it a perfect choice for high-traffic areas.

Product Information

Standard Information

• Brand: Leviton
• Catalog Number: CSB4-20

Technical Specifications

• Voltage Rating: 120/277 VAC
• Amperage Rating: 20 A
• Power Rating: 1 hp at 120 V, 2 hp at 240 V
• Dimensions: 46 H x 1.31 W x 1.47 D inches
• Material: Thermoplastic body with Polycarbonate toggle
• Mounting Type: Box
• Environmental Conditions: -40 to +120 degrees C
• Operating Temperature: -40 to +120 degrees C
• Warranty Length: 10 years
• Standard: ANSI C-73, UL 20
