Product Description

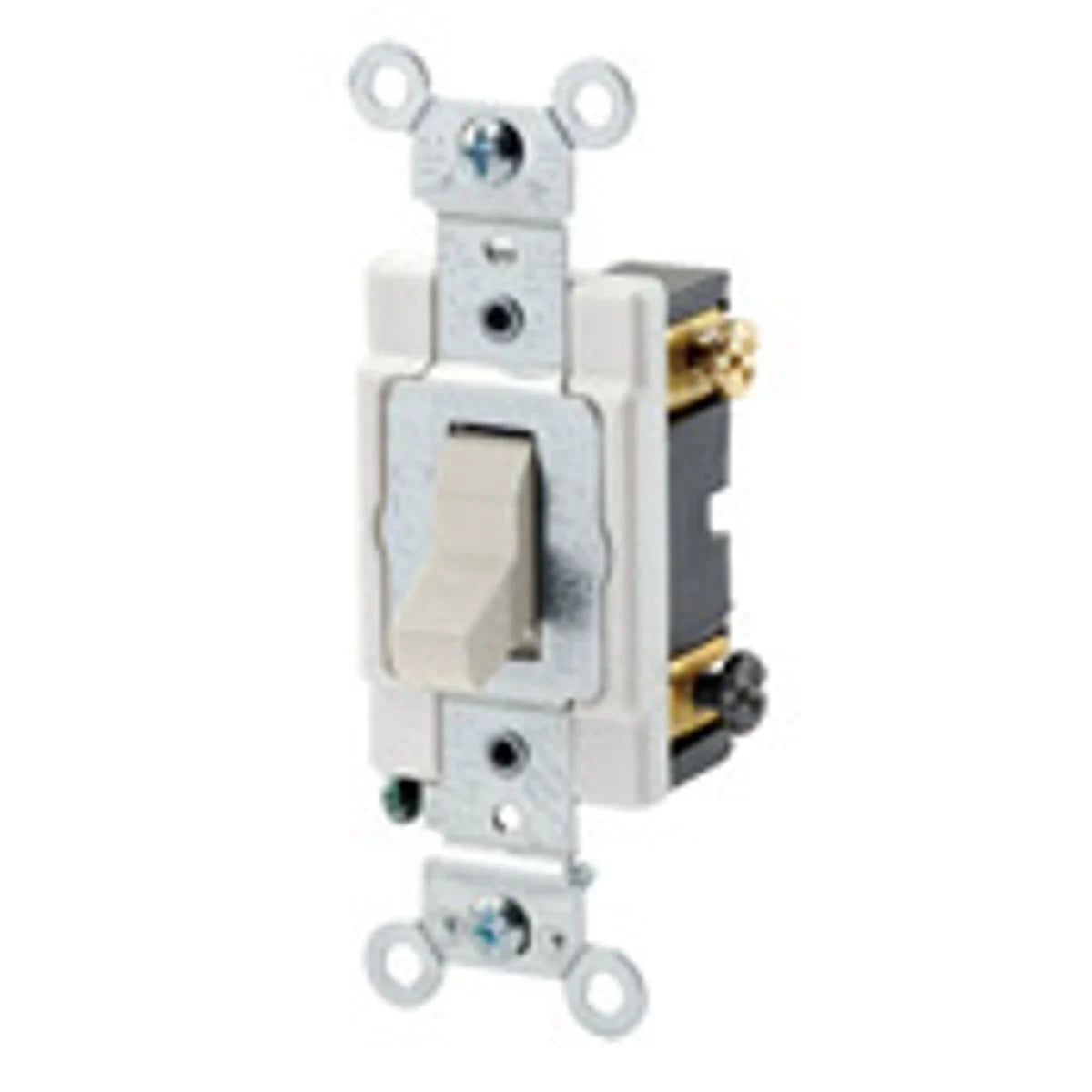

The Leviton CSB3-15T is a 15 Amp 120/277 Volt 3-Way AC Quiet Switch designed for commercial applications. This toggle switch provides reliable performance and functionality in a light almond finish.
- 15 Amp maximum load capacity
- Suitable for back and side wiring
- Compatible with NEMA standards
Product Highlights
This switch is ideal for use in municipal facilities, government buildings, malls, department stores, and hospitals.
Product Information
Standard Information
-
Brand: Leviton
-
Catalog Number: CSB3-15T
Technical Specifications
-
Voltage Rating: 120/277 VAC
-
Amperage Rating: 15 A
-
Number of Poles: 3
-
Enclosure: NEMA WD-1/WD-6
-
Environmental Conditions: Operating Temperature -40 to +120 DEG C
-
Material: Thermoplastic
-
Dimensions: 46 inches H x 1.31 inches W x 1.47 inches D
-
Connection Type: Back Wired; Side Wired
-
Approval Standards: UL 20, CSA C22.2 No. 111
