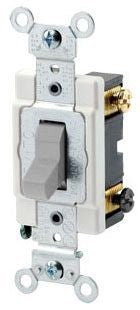

Leviton CSB2-20G Toggle Switch 20A 120/277V 2-Pole DP Contact

Product Description

The Leviton CSB2-20G is a toggle switch designed for commercial applications. It operates at 20 amps and supports voltage ratings of one hundred twenty to two hundred seventy-seven volts. This toggle switch provides reliable performance in demanding environments.

• 20 amp and 120/277 volt rated
• Double-pole configuration for versatile use
• Built for commercial settings

Product Highlights

Ideal for settings such as hospitals, offices, and municipal buildings, the Leviton CSB2-20G meets stringent electrical standards.

Product Information

Standard Information

• Catalog Number: CSB2-20G
• Manufacturer: Leviton

Technical Specifications

• Application: Commercial
• Color: Gray
• Amperage Rating: 20 A
• Voltage Rating: 120/277 VAC
• Contact Configuration: DP
• Operating Temperature: -40 to 120 DEG C
• Material: Thermoplastic
• Dimensions: 46 inches H x 1.31 inches W x 1.47 inches D
• Environmental Conditions: Flammability (Rated V-2 per UL94)
