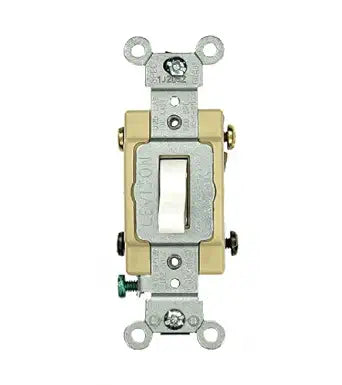

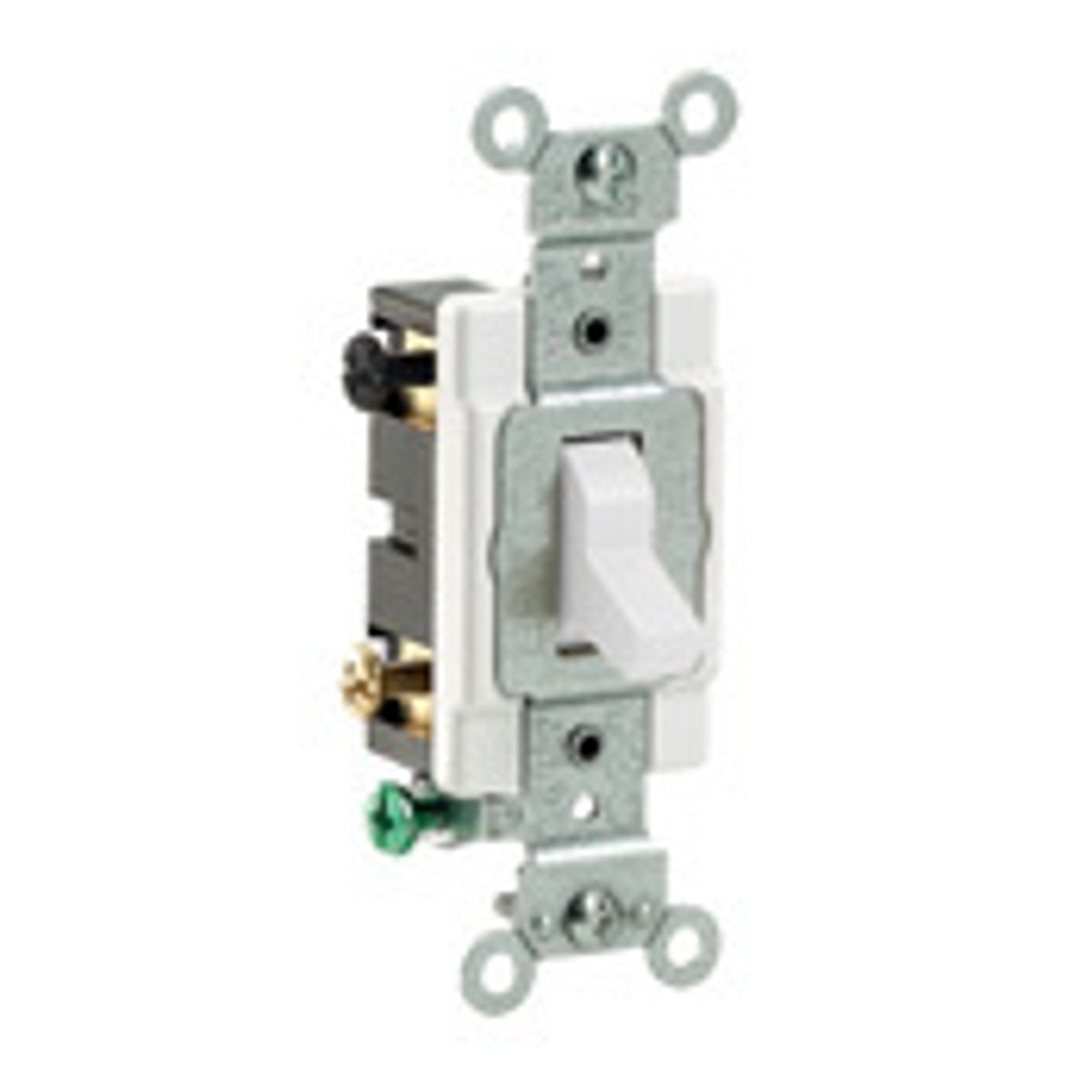

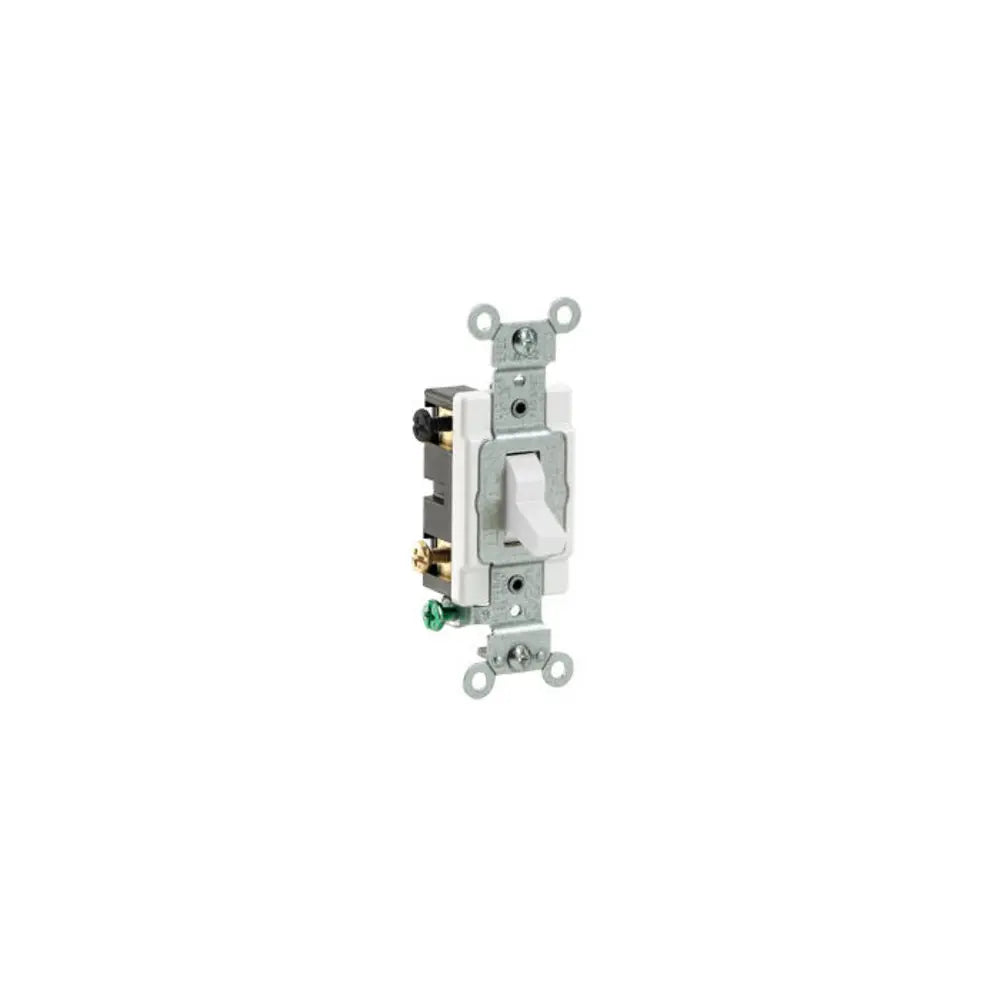

Leviton CS420-2W 20A, 120/277 VAC, Toggle 4-Way AC Quiet Switch, Commercial Spec Grade

Product Description

The Leviton CS420-2W commercial specification grade switches are designed for reliability and top performance in commercial settings. This 4-way grounding AC quiet toggle switch is rated at 120/277 VAC and 20 A. Ideal for municipal facilities, government buildings, and hospitals.

• Quiet switch operation
• Heavy-duty pre-plated steel mounting strap
• Large, brass triple-drive combination screws for fast wiring

Product Highlights

This Leviton switch offers outstanding reliability and performance for commercial applications. It features a thermoplastic body and polycarbonate actuator.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: CS420-2W
• Country of Origin: MX

Technical Specifications

• Type: Decora 4-Way
• Voltage Rating: 120/277 VAC
• Amperage Rating: 20 A
• Number Of Poles: 2-Pole
• Material: Thermoplastic
• Mounting: Screw
• Standard: UL 20
• Connection: Side Wire
• Width: 1.31 Inches
• Height: 4.06 Inches
• Actuator: Toggle
• Environmental Conditions: Dry Location
• Dielectric Strength: 1500-Volts
• Temperature Rating: -40 to 65 deg C
• Contact Material: 0.031-Inch thick silver cadmium
• Terminal Size: 14 - 12-AWG
• Power: 800 W, 1000 VA
• Application: Commercial, Specification Grade
• Approval: UL 20, CSA C22.2, NOM 057
• Operation Type: 4-Way
• Enclosure: NEMA WD-1/WD-6
• Terminal Type: Side Wire
• Contact Rating: 1 hp at 120 VAC, 2 hp at 240 VAC
• Operating Temperature: -40 to 120 deg C
• Standards/Approvals: ANSI C73|CSA C22.2 No. 111 File No. 152105|NOM 057|Federal Specification WS896E File No. E7458|UL 20|UL94 V-2 Flammability Rating
• Amperage: 20 Amp
• Max. Amperage: 16 Amp
• Dielectric Voltage: Withstands 1500V for 1 minute
• Temperature Rise: Maximum 30 degrees C rise
• Body Material: Thermoplastic
• Base Material: PBT
• Strap Material: Steel
• Actuator Material: Polycarbonate
• Toggle: Polycarbonate
• Cover Material: Nylon
• Contacts: Silver-Cadmium .031 Thick
• Terminal Screws: Steel 8-32
• Mounting Type: Surface
• Current Rating: 20 Ampere
• Wiring: Side
• Wall Plate Included: No
• Grounding Type: Self Grounding
• Wire Size: 14 to 12 AWG (Side)
• Switch Type: Toggle Switch
• Grade: Commercial Spec Grade
• Rated Voltage: 120/277V AC
• Switch Style: Toggle
• AC Horsepower Ratings: 1HP-120V 2HP-240V
• Flammability: Rated V-2 per UL94
• Product ID: Stamped on Strap
• Screw Terminal Torque: 14-18 in-lbs
• Terminal Accom.: 14-12 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Termination: Side Wire
• Device Type: Toggle Switch
• Function: 4-Way
• ANSI: C-73
• CSA C22.2 No. 111: File #152105
• NEMA: WD-1 & WD-6
• NOM: 057
• UL Fed Spec WS896E: File #E7458
• UL Standard: UL 20
• Operating Voltage: 120 Volts
• Operation Mode: ON-OFF
• Smart Home Compatibility: Not Smart Home Compatible
• Compatible Devices: Electrical systems with 120/277VAC, UL-listed, and standard electrical wiring connectors
• Control Type: Multiple
• Number of Positions: 4
• Circuit Type: 4-way
• Contact Type: Normally Open
• Connector Type: Quick Connect
• Specification Met: Ul
• ECCN: EAR99
• Connection Type: Side Wired
• Color Family: White
