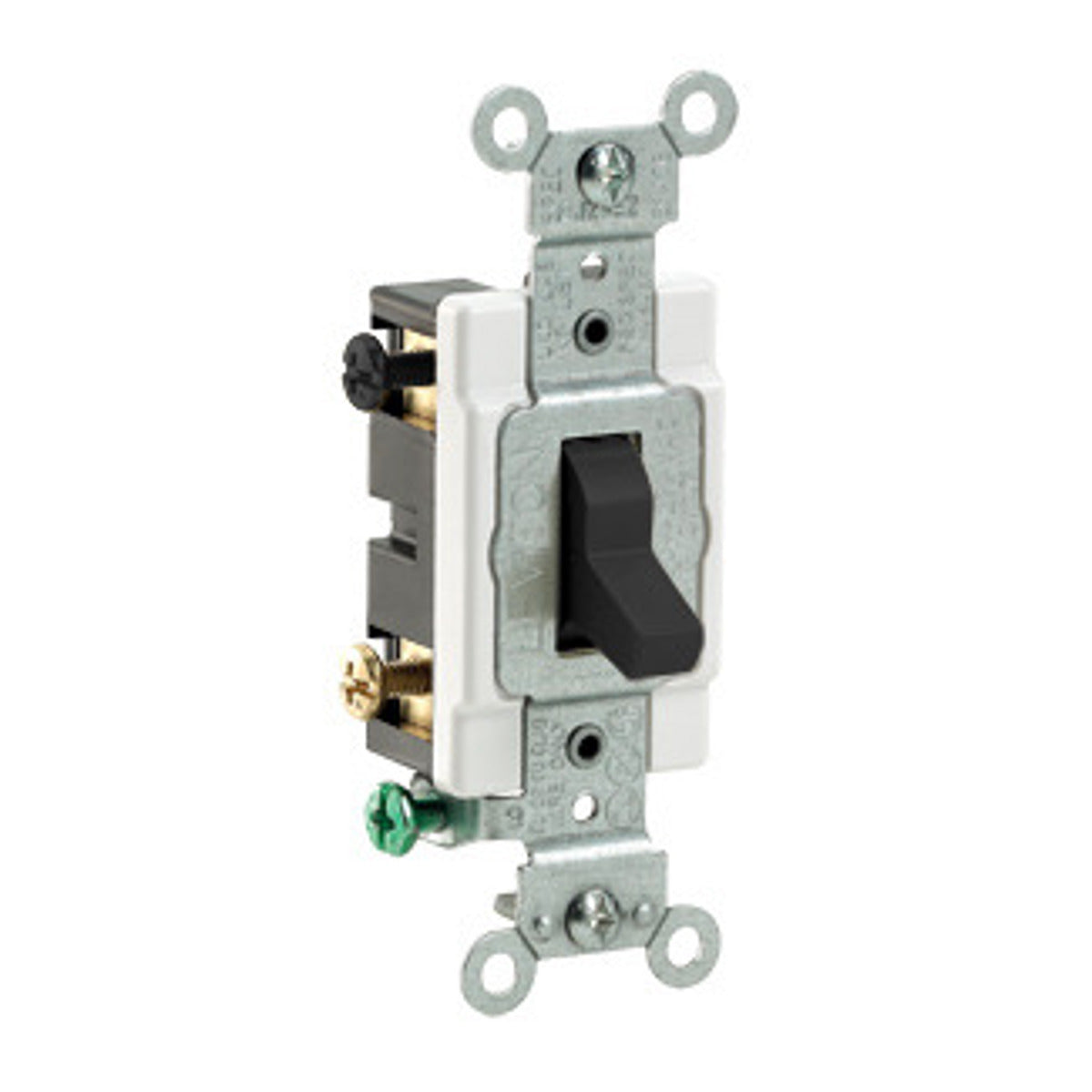

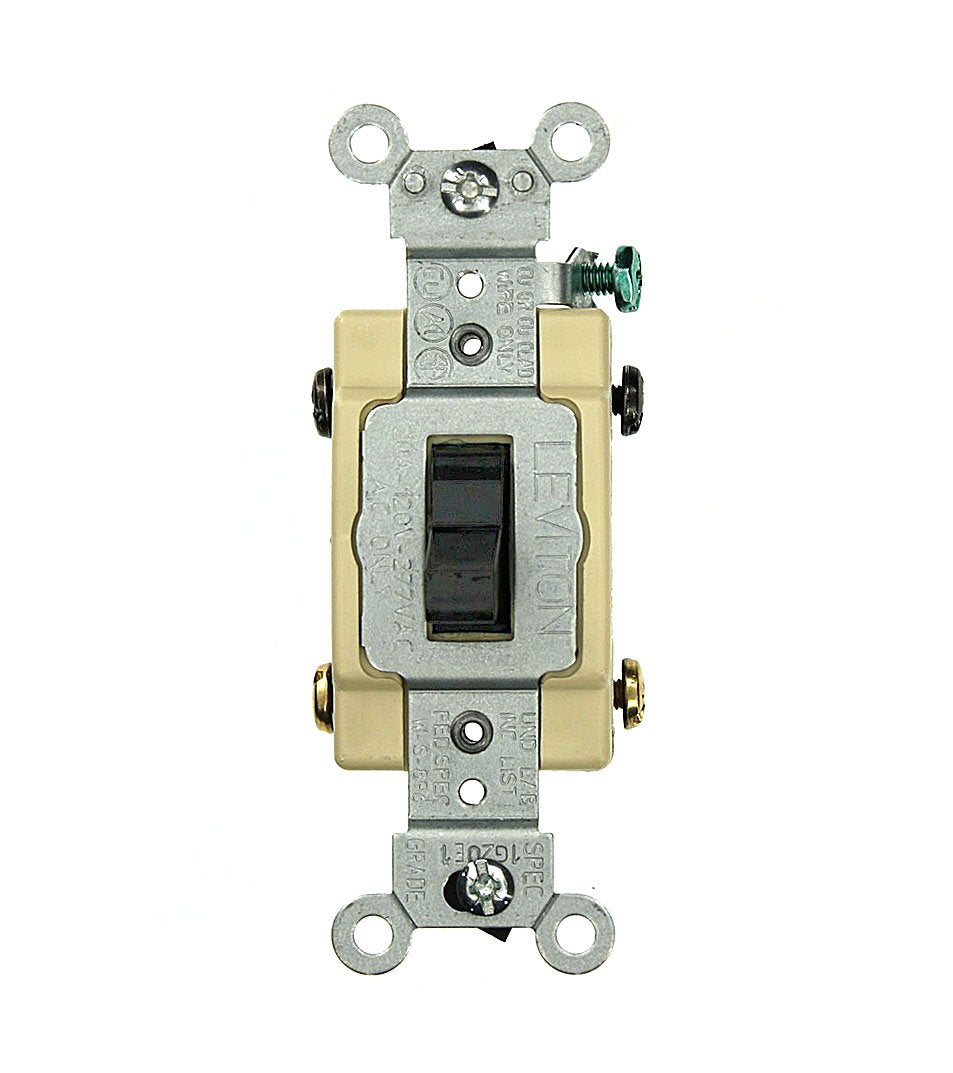

Leviton CS420-2E 20 Amp, 120/277 Volt, Toggle 4-Way AC Quiet Switch, Commercial Grade, Grounding

Product Description

The Leviton CS420-2E commercial specification grade switches are designed for reliability and top performance in commercial settings. This toggle switch is ideal for municipal facilities, government buildings, malls, hospitals, office buildings, schools, and universities. It is rated for 20 Amp, 120/277 Volt operation.

• Designed for commercial applications
• Offers outstanding reliability and top performance
• Side wired connection

Product Highlights

This Leviton commercial grade toggle switch is suitable for various commercial facilities and offers reliable switching performance.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: CS420-2E
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: CS420-2E
• Manufacturer: Leviton
• Brand: Leviton
• Country of Origin: Mexico
• Made in USA: No
• Actuator: Toggle
• Amperage Rating: 20 A
• Application: Commercial Applications
• Color: Black
• Connection: Side Wired
• Mounting: Box
• Number of Poles: 4
• Standard: NEMA (WD-1 and WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 111 (File 152105);UL Fed Spec WS-896E (File E7458);UL Standard (UL 20)
• UPC: 078477073087
• GTIN: 00078477073087
• Item Type: Toggle Switch
• Width: 1.31 Inch
• Depth: 0.92 Inch
• Environmental Conditions: Flammability (Rated V-2 per UL94)
• Operating Temperature: -40 to +120 DEG C
• Voltage Rating: 120/277 VAC
• Actuator Material: Thermoplastic
• Body Material: Thermoplastic
• Device Type: Toggle Switch
• Function: 4-Way
• Grade: Commercial Specification Grade
• Grounding: Grounding
• HP Rating: 1HP-120V 2HP-240V-277V
• Strap Material: Steel
• Termination: Side Wire
• Power Rating: 800 W, 1000 VA
• Terminal Type: Side Wire
• Type: 4-Way Grounding
• Material: Thermoplastic
• Dielectric_strength: 1500 Volt
• terminal_accommodations: 14-12 AWG
• Action: Maintained
• Temperature_rating: -40 to 65 deg C
• Enclosure: NEMA WD-1/WD-6
• Contact Rating: 1 hp at 120 VAC, 2 hp at 240 to 277 VAC
• Screw Terminal Torque: 14-18 in-lbs
• Rated Voltage: 120/277V ac
• Switch Style: Toggle
• Color Family: Black
• No. of Poles: 4-way
• Standard & Approvals: ARRA, Buy American Act and RoHS Compliant, ANSI (C-73), CSA C22.2 No. 111 (File 152105) Certified, NOM (057), UL Fed Spec WS896E (File E7458), UL 20 Listed, UL94-V2 Flammability Rated
