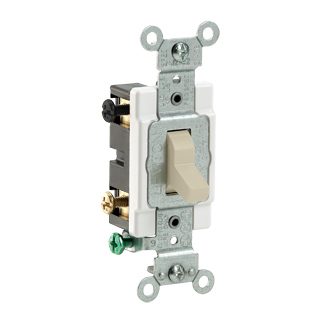

Leviton CS415-2I 4-Way AC Quiet Toggle Switch 120/277 VAC 15 Amp

Product Description

The Leviton CS415-2I is a commercial grade 4-way AC quiet toggle switch. It operates at 120/277 VAC and has a current rating of 15 Amps. The switch is made of thermoplastic material and features an ivory color. This switch is suitable for various commercial applications including government buildings, malls, hospitals, and schools.

• 4-way grounding toggle switch
• Accepts No. 14 to 12 AWG wire
• NEMA WD-1 and WD-6 compliant

Product Highlights

The CS415-2I is designed for reliable operation in rugged environments. It can handle power ratings of 1/2 horsepower at 120 VAC and 2 horsepower at 240 VAC. This switch is built for durability and is ideal for high-traffic areas.

Product Information

Standard Information

• Manufacturer: Leviton
• Part Number: CS415-2I

Technical Specifications

• Voltage Rating: 120/277 VAC
• Amperage Rating: 15 A
• Power Rating: 1/2 hp at 120 VAC, 2 hp at 240 VAC
• Material: Thermoplastic
• Mounting Type: Surface
• Environmental Conditions: -40 to 120 degrees Celsius
• Dimensions: 46 inches H x 1.31 inches W x 0.92 inches D
• Actuator Type: Toggle
