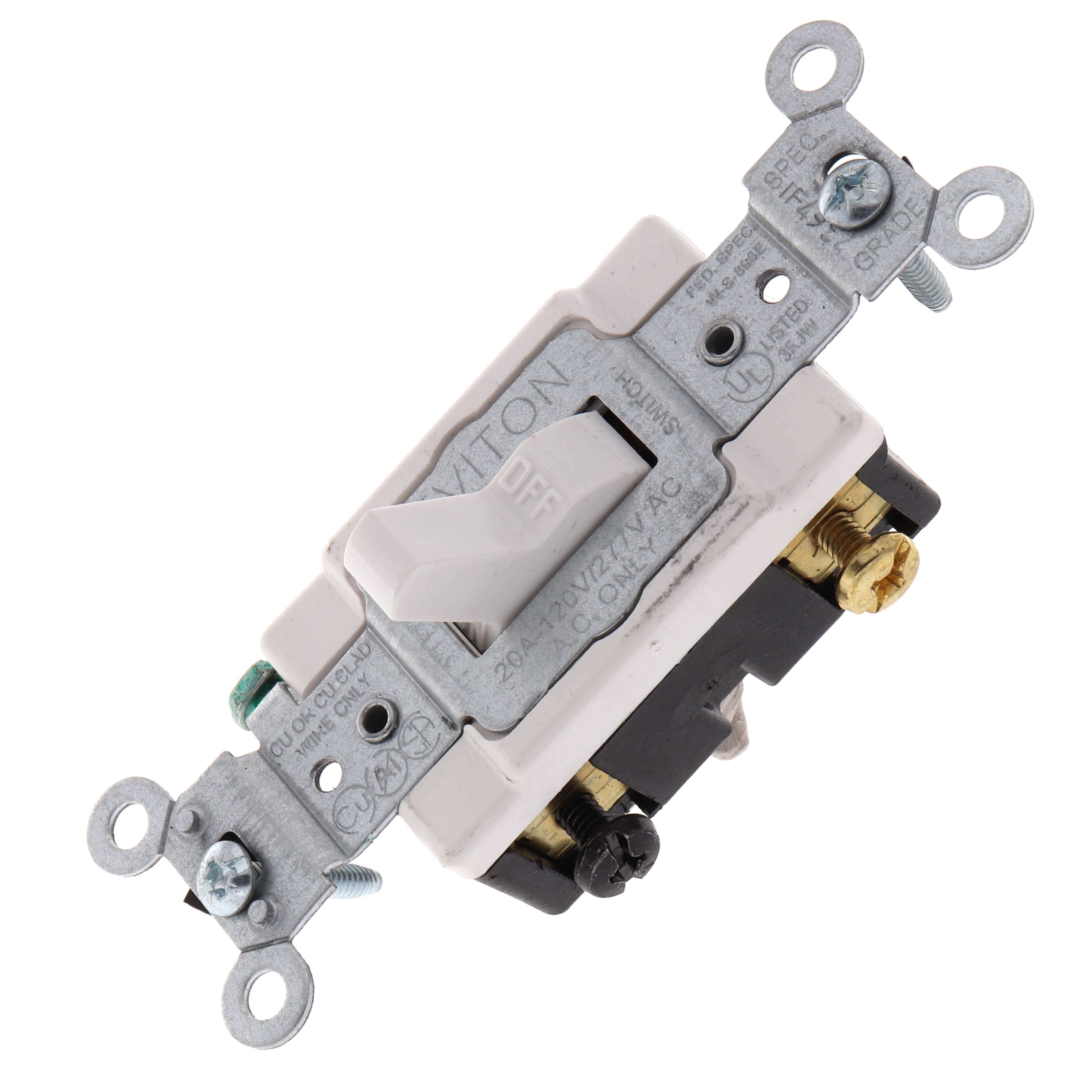

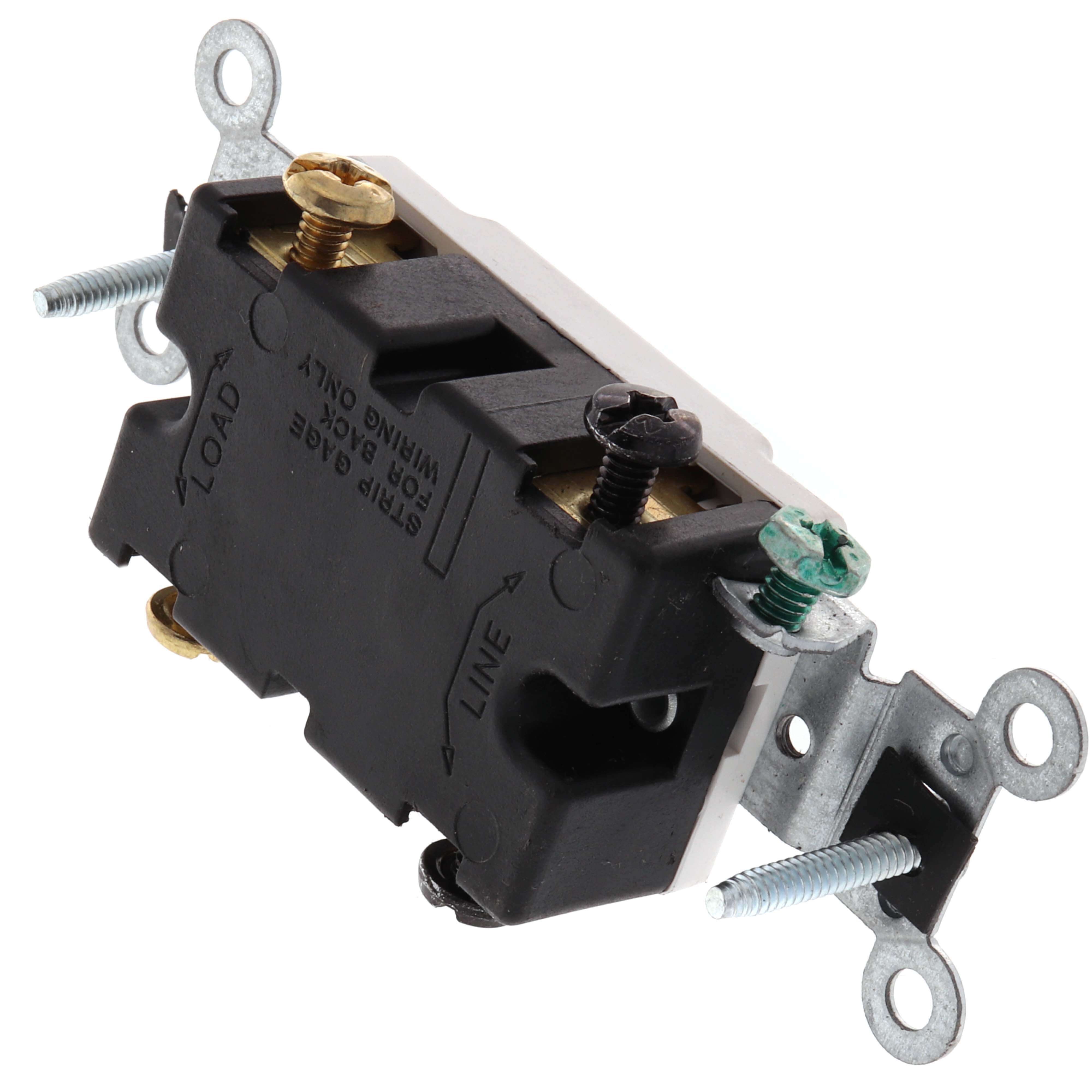

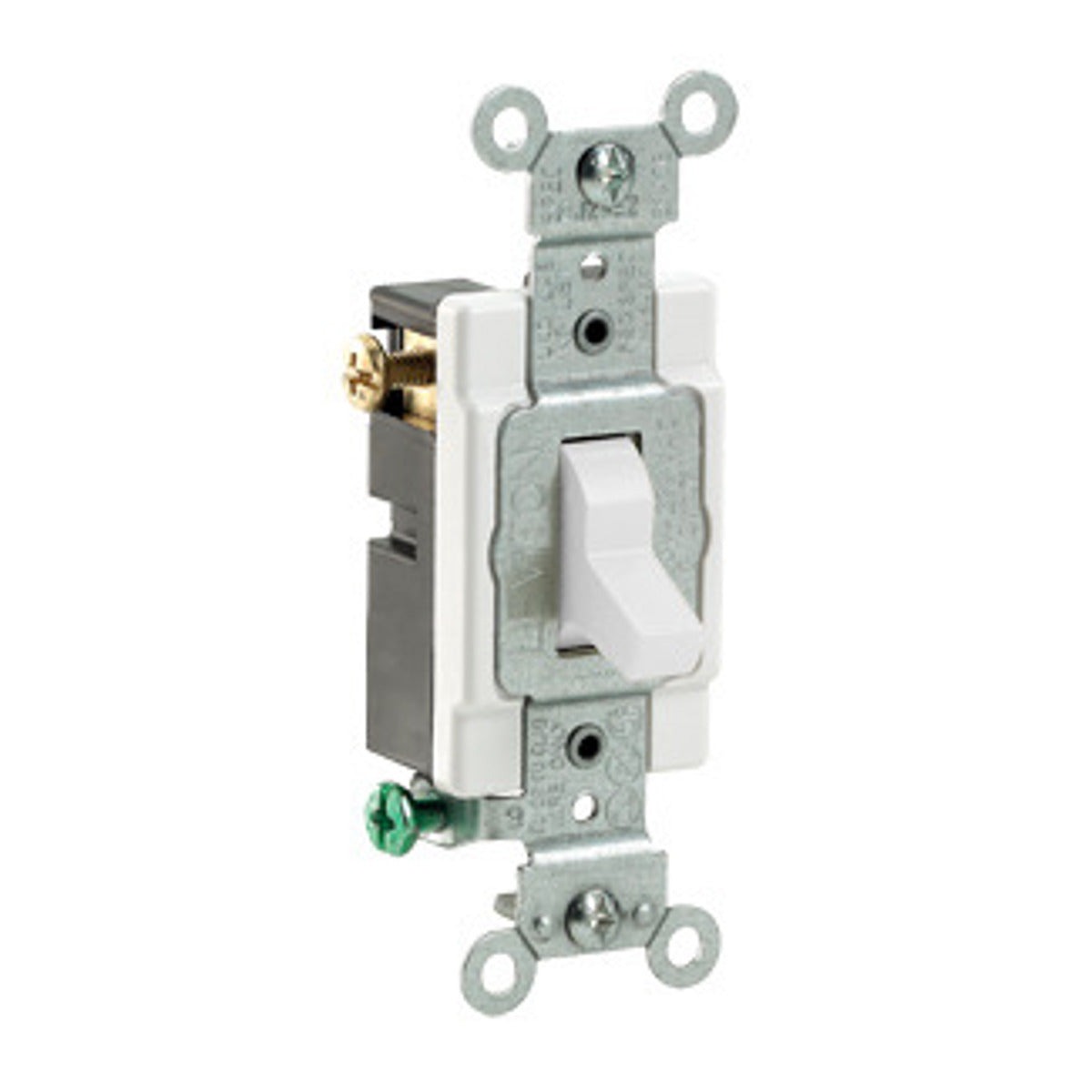

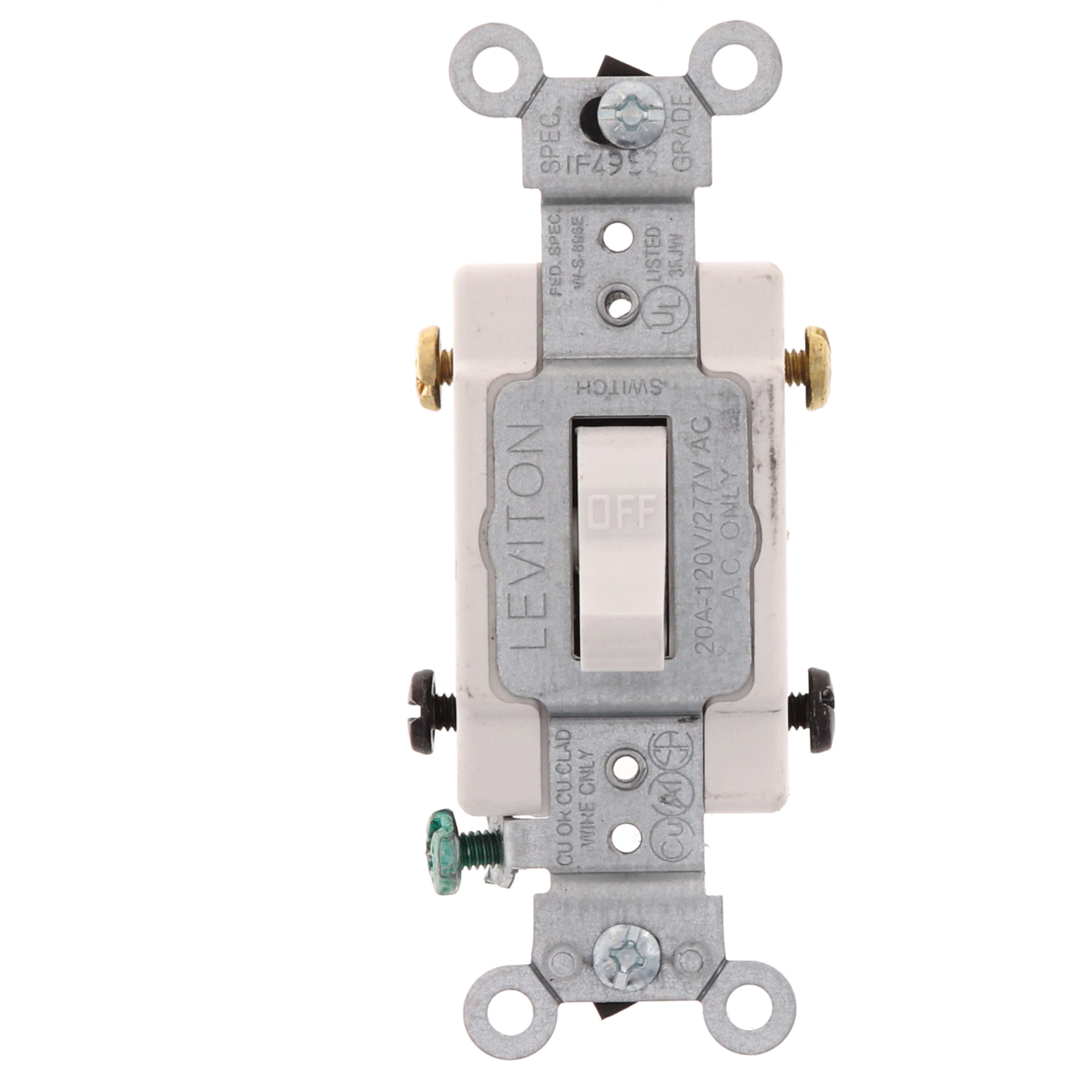

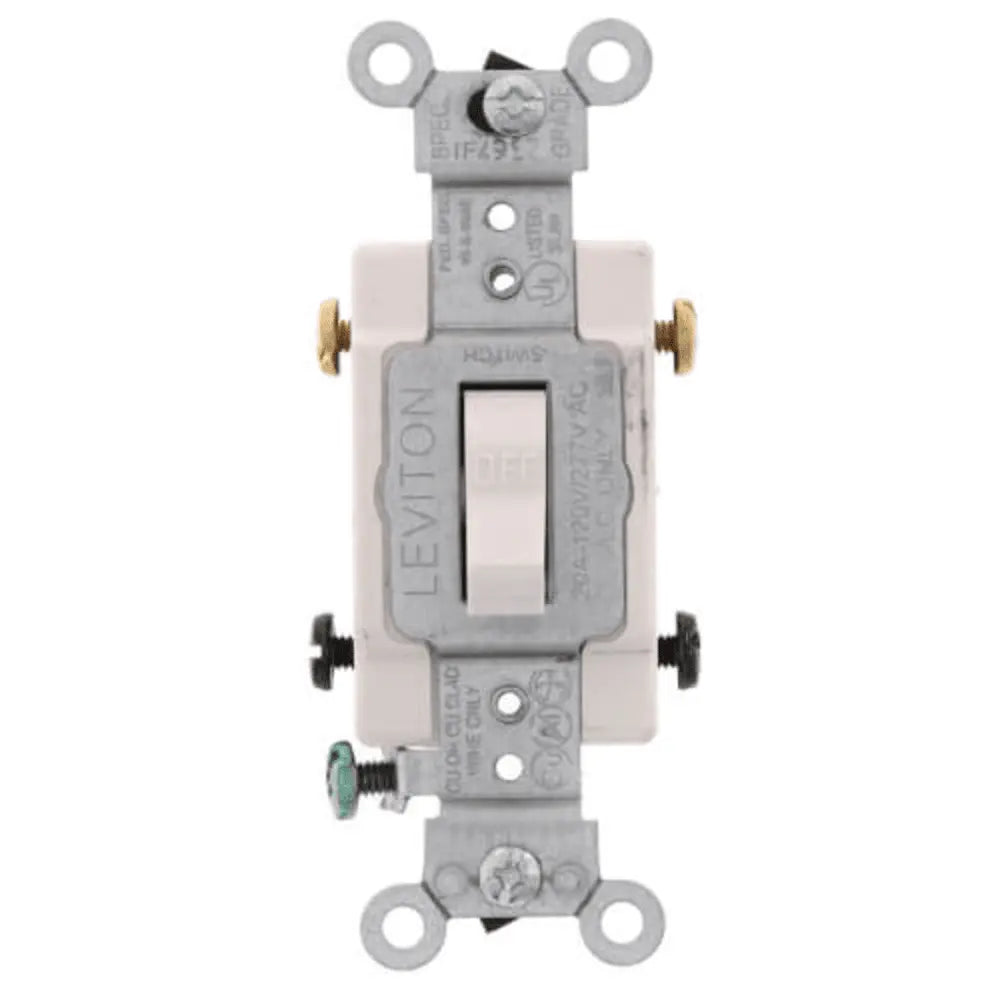

Leviton CS320-2W 20A Toggle Three-Way AC Quiet Switch, 120/277 VAC, Commercial Spec Grade, Grounding

Product Description

The Leviton CS320-2W commercial specification grade switches are designed for reliability and top performance in commercial settings. Ideal for municipal facilities, government buildings, malls, hospitals, healthcare facilities, office buildings, schools, and universities. This is a 20A, 120/277V 3-way grounding AC quiet toggle switch.

• Commercial Specification Grade
• Outstanding reliability
• Top performance in commercial settings

Product Highlights

This Leviton switch is suitable for various commercial applications requiring a dependable and high-performance switching solution.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: CS320-2W
• Country of Origin: US

Technical Specifications

• Type: Toggle 3-Way
• Color: White
• Width: 1.31 Inches
• Height: 4.06 Inches
• Actuator: Toggle
• Material: Thermoplastic
• Mounting: Screw
• Standard: UL 20
• Insulated: No
• Connection: Screw terminal
• Voltage Rating: 120/277 VAC
• Amperage Rating: 20 Amperes
• Number Of Poles: 3-Pole
• Country of Origin: US
• Environmental Conditions: Dry Location
• Brand: LEVITON
• MPN: CS320-2W
• Enclosure: NEMA WD-1/WD-6
• Operating Temperature: -40 to 65 deg C
• Terminal Type: Side Wire
• Power Rating: 800 W, 1000 VA
• Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|CSA C22.2 No. 111 File No. 152105|NOM 057|Federal Specification WS896E File No. E7458|UL 20|UL94 V-2 Flammability Rating
• Application: Commercial Applications
• Terminal Accommodations: 14-12 AWG
• Dielectric Strength: Withstands 1500V for 1 minute
• Temperature Rise: Maximum 30 degrees C rise
• Flammability: Rated V-2 per UL94
• Base Material: PBT
• Body Material: Thermoplastic
• Cover Material: Nylon
• Strap Material: Steel
• Terminal Screws: Steel 8-32
• Toggle: Polycarbonate
• Product ID: Stamped on Strap
• Screw Terminal Torque: 14-18 in-lbs
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Termination: Side Wire
• Device Type: Toggle Switch
• Function: 3-Way
• Grade: Commercial Specification Grade
• HP Rating: 1HP-120V 2HP-240V-277V
• ANSI: C-73
• CSA C22.2 No. 111: File #152105
• NEMA: WD-1 & WD-6
• NOM: 057
• UL Fed Spec WS896E: File #E7458
• UL Standard: UL 20
• Amperage: 20 A
• Voltage: 120/277 Volt AC
• Maximum Load Capacity: 1 hp at 120 Volt, 2 hp at 240 Volt
• Action: Maintained
