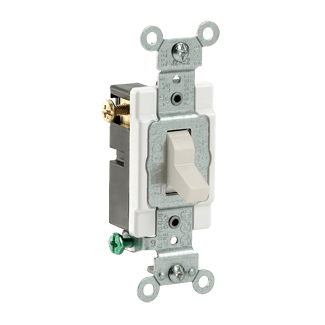

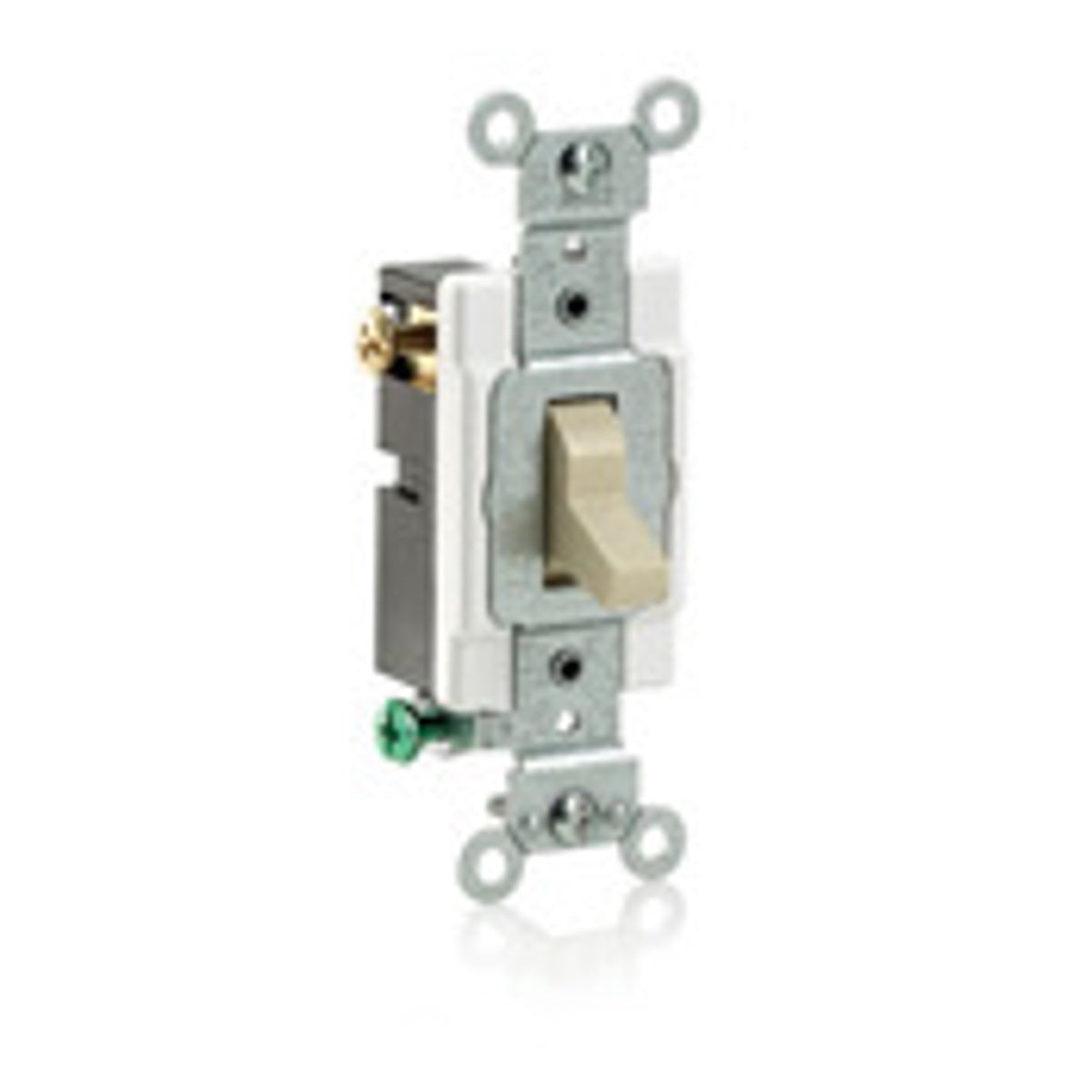

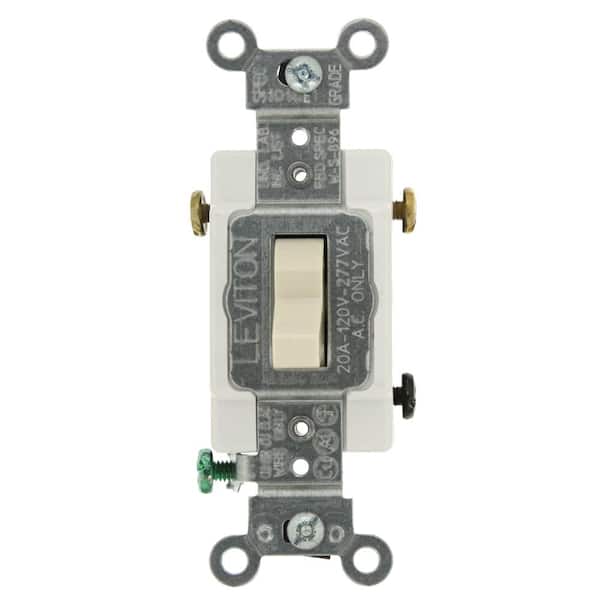

Leviton CS320-2T Toggle 3-Way AC Quiet Switch 20-Amp 120/277-Volt CS320LA

Product Description

The Leviton CS320-2T is a 20-Amp, 120/277-Volt, toggle 3-way AC quiet switch designed for commercial applications. This commercial grade, grounding switch ensures reliability and top performance. Ideal for use in municipal facilities, government buildings, and healthcare facilities. It features side wired connection and flammability rating of V-2 per UL94.

• Large head triple drive combination screws for fast wiring installation
• Heavy gauge, rust resistant steel mounting strap
• Accepts no 14 to 12 AWG copper or copper clad wire

Product Highlights

This Leviton switch offers outstanding reliability and top performance for commercial settings with convenient features.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: CS320-2T
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: CS320-2T
• Manufacturer: Leviton
• Brand: Leviton
• Country of Origin: Mexico
• Made in USA: No
• Actuator: Toggle
• Amperage Rating: 20 A
• Application: Commercial
• Color: Light Almond
• Connection: Side Wired
• Mounting: Box
• Number of Poles: 3
• Standard: NEMA (WD-1 and WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 111 (File 152105);UL Fed Spec WS-896E (File E7458);UL Standard (UL 20)
• UPC: 078477273081
• GTIN: 00078477273081
• Item Type: Toggle Switch
• Environmental Conditions: Flammability (Rated V-2 per UL94), -40 to 120 deg C Operating Temperature
• Operating Temperature: -40 to +120 DEG C
• Voltage Rating: 120/277 VAC
• Cross Reference Products: CS320LA
• Manufacturer Item Status: Active
• Alternative Part Number: 9251033
• Amperage Rating UOM: A
• Contact Rating: 1 hp at 120 VAC, 2 hp at 240 to 277 VAC
• Enclosure: NEMA WD-1/WD-6
• Material: Thermoplastic
• Power Rating: 800 W, 1000 VA
• Terminal Type: Side Wire
• Type: 3-Way Grounding
• Voltage Rating UOM: VAC
• IGCC: 5200
• Grounding: Grounding
• Dielectric Voltage: Withstands 1500V for 1 minute
• Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
• Temperature Rise: Max 30 00b0C temp rise at full-rated current after 150 cycles of OL at 150% rated DC current
• Endurance: 50,000 cycles minimum
• Function: 3-Way
• Grade: Commercial Specification Grade
• HP Rating: 1HP-120V 2HP-240V-277V
• Standards and Certifications: UL/CSA
• Current Rating: 20 Ampere
• Operation Type: 3-Way
• Wiring: Side
• Wall Plate Included: No
• Approval: UL 20, CSA C22.2, NOM 057
• Grounding Type: Self Grounding
• Strap Material: Steel
• Contact Material: Silver-Cadmium
• Wire Size: 14 to 12 AWG (Side)
• Flammability: Rated V-2 per UL94
• Actuator Material: Thermoplastic
• Body Material: Thermoplastic
• Termination: Side Wire
• Screw Terminal Torque: 14-18 in-lbs
• Terminal Accom.: 14-12 AWG
• Device Type: Toggle Switch
• ANSI: C-73
• CSA C22.2 No. 111: File #152105
• NEMA: WD-1 & WD-6
• NOM: 057
• UL Standard: UL 20
• Environment: -40 to 120 deg C
• Mfg Standards/Approvals: ANSI (C-73), CSA C22.2 No. 111 (File 152105) Certified, NEMA (WD-1 and WD-6), NOM Certified (057), RoHS Compliant, UL Fed Spec WS896E (File E7458), UL 20 Listed
• Terminal Screws: Steel 8-32
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Base Material: PBT
• Cover Material: Nylon
• Toggle: Polycarbonate
• Product ID: Stamped on Strap
• Mounting Type: Wall Mount
• Terminal: 2p6t
• Maximum Current: 20 Amps
• Dielectric Strength: 1500V
• Operating Voltage: 120 Volts (AC)
• Operation Mode: OFF-NONE-ON
• Smart Home Compatibility: Not Smart Home Compatible
• Compatible Devices: Lights, fans, small appliances
• Control Type: Multi-circuit
• Number of Positions: 2
• Controller Type: Almond
• Switch Type: Toggle
• Circuit Type: 3-way
• Contact Type: Normally Closed
• Connector Type: Screw
