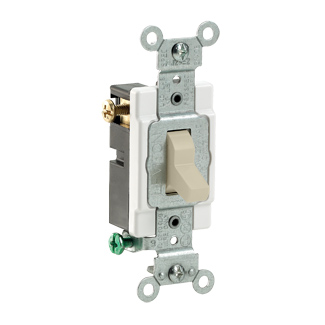

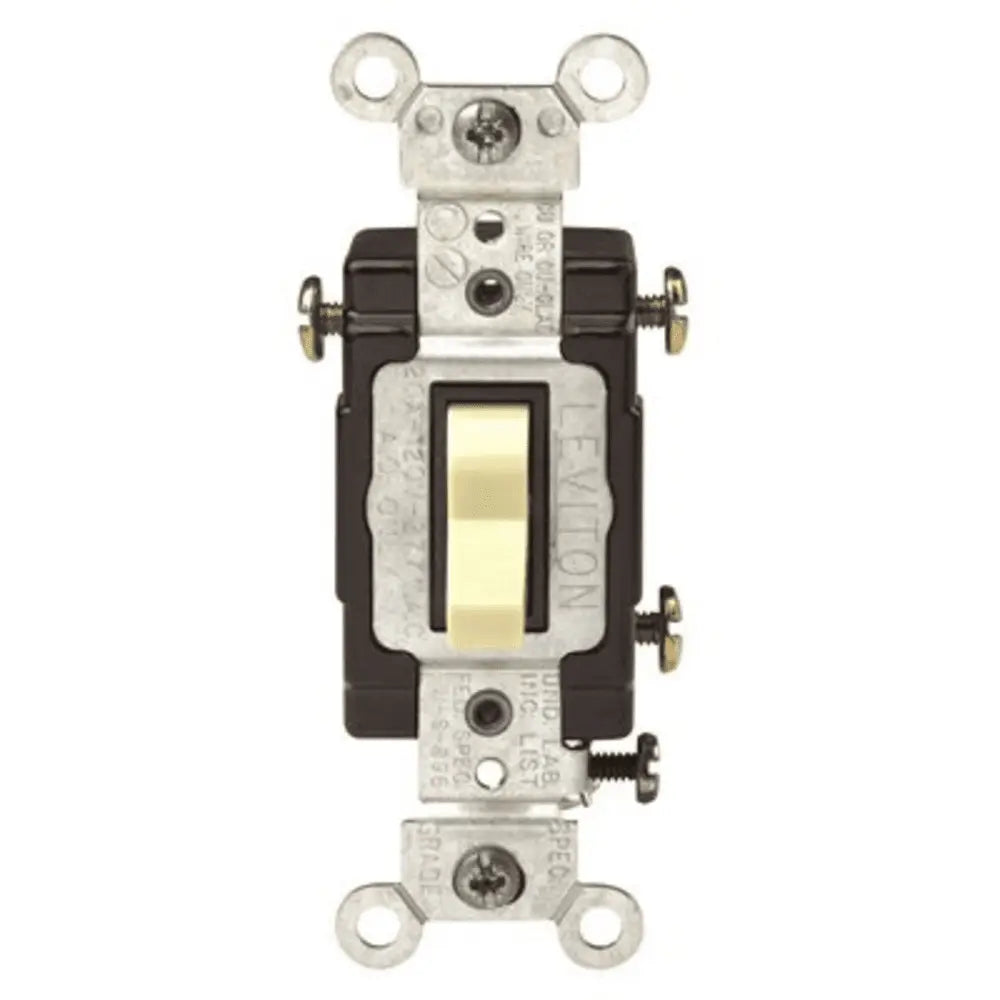

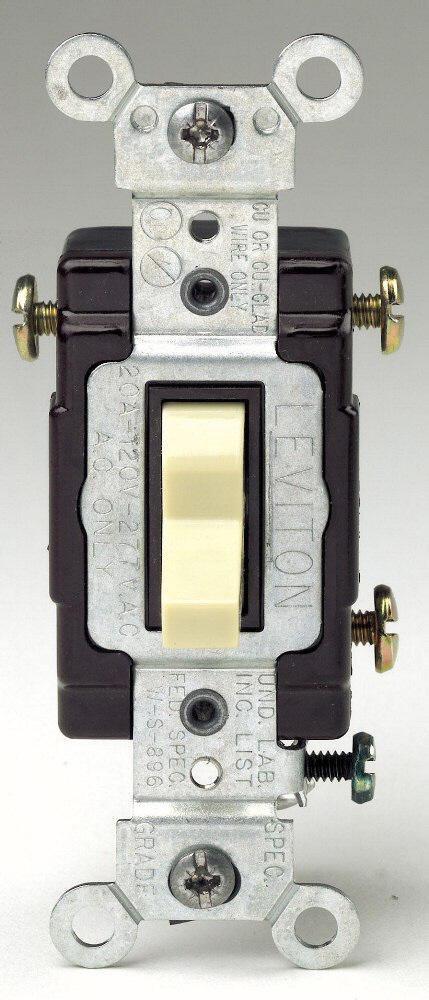

Leviton CS320-2I 20 amp, 120/277 volt, toggle 3-way AC quiet switch, commercial spec grade, grounding, side wired

Product Description

The Leviton CS320-2I is a commercial specification grade switch designed for outstanding reliability and performance in commercial settings. This 20 Amp, 120/277 Volt, Toggle 3-Way AC Quiet Switch is suitable for municipal facilities, government buildings, malls, department stores, hospitals, and educational institutions. It features grounding and side-wired terminals, ensuring secure and efficient operation in various commercial applications.

• Commercial Specification Grade for demanding environments
• 3-way AC quiet switch for versatile control

Product Highlights

Designed for commercial applications, this 20 Amp, 120/277 Volt, 3-Way AC Quiet Switch offers reliable performance and is suitable for various institutional and commercial environments.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: CS320-2I
• Country of Origin: US

Technical Specifications

• UNSPSC Code: 39121400
• UPC: 078477060841
• Switch Type: Toggle 3-Way AC Quiet Switch
• Actuator Type: Toggle
• Body Material: Thermoplastic
• Mounting Type: Screw
• Standard: NEMA (WD-1 and WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 111 (File 152105);UL Fed Spec WS-896E (File E7458);UL Standard (UL 20)
• Insulated: No
• Connection Type: Screw terminal
• Voltage Rating: 120/277 VAC
• Amperage Rating: 20 Amperes
• Number of Poles: 3-Pole
• Country of Origin: US
• Environmental Conditions: Dry Location
• Application: Commercial
• Flammability Rating: Rated V-2 per UL94
• Operating Temperature: -40 to +120 DEG C
• Horsepower Rating: 1HP-120V 2HP-240V
• Dielectric Voltage: Withstands 1500V for 1 minute
• Temperature Rise: Maximum 30 degrees C rise
• Actuator Material: Polycarbonate
• Base Material: PBT
• Contact Material: Silver-Cadmium .031 Thick
• Cover Material: Nylon
• Strap Material: Steel
• Terminal Screw Material: Steel 8-32
• Toggle Material: Polycarbonate
• Screw Terminal Torque: 14-18 in-lbs
• Terminal Accommodation: 14-12 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Termination Type: Side Wire
• Device Type: Toggle Switch
• Function: 3-Way
• Grade: Commercial Specification Grade
• Sub Brand: Comm Switches
• Wiring Type: Grounding, Side Wired
• Series: CS320-2
• Wattage Rating: 745.69W at 120V, 1491.39W at 240V
• Contact Configuration: SPDT
• Contact Rating: 20A, 120/277VAC
