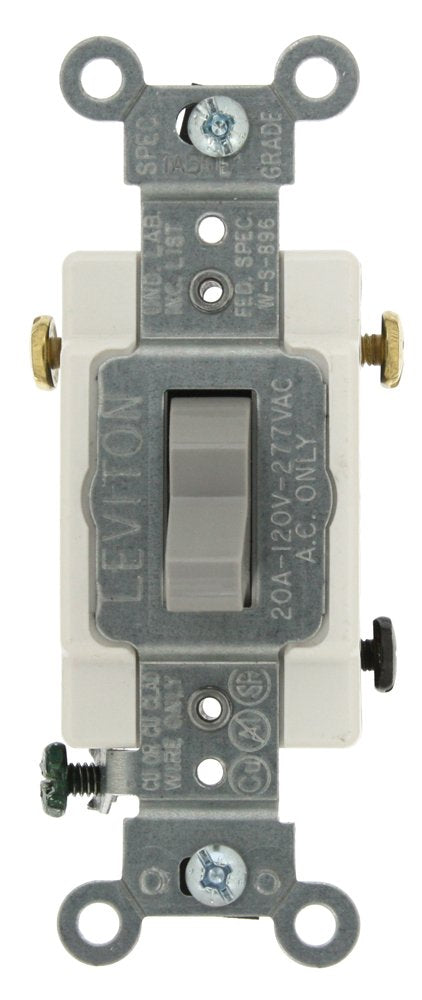

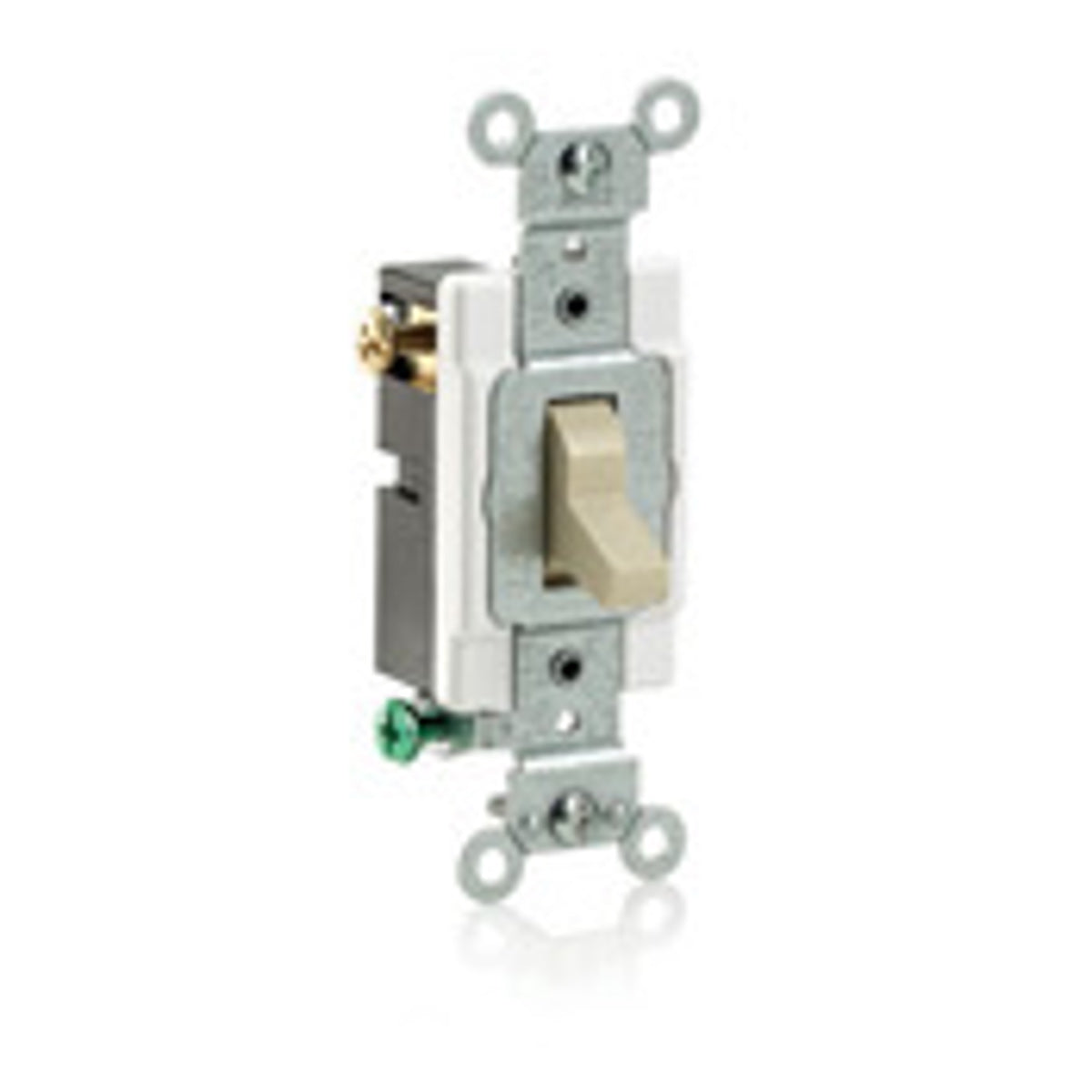

Leviton CS320-2GY 20-Amp, 120/277-Volt, Toggle 3-Way AC Quiet Switch, Commercial Grade, Grounding

Product Description

The Leviton CS320-2GY is a 20-Amp, 120/277-Volt, Toggle 3-Way AC Quiet Switch, Commercial Grade, Grounding. Designed for outstanding reliability and top performance in commercial settings. Ideal for municipal facilities, government buildings, malls, hospitals, office buildings, schools, and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches.

• 20-Amp
• 120/277-Volt
• Toggle 3-Way

Product Highlights

This AC quiet switch is commercial grade and grounding. It ensures reliability and top performance in various commercial settings.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: CS320-2GY
• Country of Origin: US

Technical Specifications

• Voltage: 120 Volts
• Connector Type: Quick Connect
• Current Rating: 20 Amps
• Catalog Number: CS320-2GY
• Manufacturer: Leviton
• Brand: Leviton
• Country of Origin: United States
• Made in USA: Yes
• Actuator: Toggle
• Amperage Rating: 20 A
• Application: Commercial
• Connection: Side Wired
• Mounting: Box
• Number of Poles: 3
• Standard: NEMA (WD-1 and WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 111 (File 152105);UL Fed Spec WS-896E (File E7458);UL Standard (UL 20)
• UPC: 078477060858
• GTIN: 00078477815823
• Item Type: Toggle Switch
• Width: 1.31 Inch
• Depth: .92 Inch
• Environmental Conditions: Flammability (Rated V-2 per UL94)
• Operating Temperature: -40 to +120 DEG C
• Voltage Rating: 120/277 VAC
• Cross Reference Products: CS20AC3GRY
• Switch Type: Toggle
• Grade: Commercial Grade
• Grounding: Grounding
• Contact Rating: 1 hp at 120 VAC, 2 hp at 240 VAC
• Enclosure: NEMA WD-1/WD-6
• Material: Thermoplastic
• Power Rating: 800 W, 1000 VA
• Terminal Type: Side Wire
• Type: 3-Way Grounding
• Dielectric Voltage: Withstands 1500V for 1 minute
• Temperature Rise: Maximum 30 degrees C rise
• Flammability: Rated V-2 per UL94
• Actuator Material: Thermoplastic
• Base Material: PBT
• Body Material: Thermoplastic
• Contacts: Silver-Cadmium .031 Thick
• Cover Material: Nylon
• Strap Material: Steel
• Terminal Screws: Steel 8-32
• Toggle: Polycarbonate
• Product ID: Stamped on Strap
• Screw Terminal Torque: 14-18 in-lbs
• Terminal Accom.: 14-12 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Termination: Side Wire
• Device Type: Toggle Switch
• Function: 3-Way
• HP Rating: 1HP-120V 2HP-240V-277V
• ANSI: C-73
• CSA C22.2 No. 111: File #152105
• NEMA: WD-1 & WD-6
• NOM: 057
• UL Fed Spec WS896E: File #E7458
• UL Standard: UL 20
• Mounting Type: Wall Mount
• Insulation Resistance: 20 Megaohms
• Operating Voltage: 120 Volts (AC)
• Operation Mode: ON-OFF
• Smart Home Compatibility: Not Smart Home Compatible
• Compatible Devices: Any device controlled by a standard single-pole, 3-way switch
• Control Type: Multi-circuit
• Number of Positions: 3
• Circuit Type: 3-way
• Contact Material: Silver With Cadmium Plating
• Contact Type: Normally Open
• Specification Met: Ul
• Volts AC: 120, 277
• Amps: 20
• Wattage Rating: 745.69W at 120V, 1491.39W at 240V
• No. Of Poles: 2
• Contact Configuration: SPDT
• Operating Temperature Range: -40 to 65 Deg C
• Applications: For Commercial Grade
