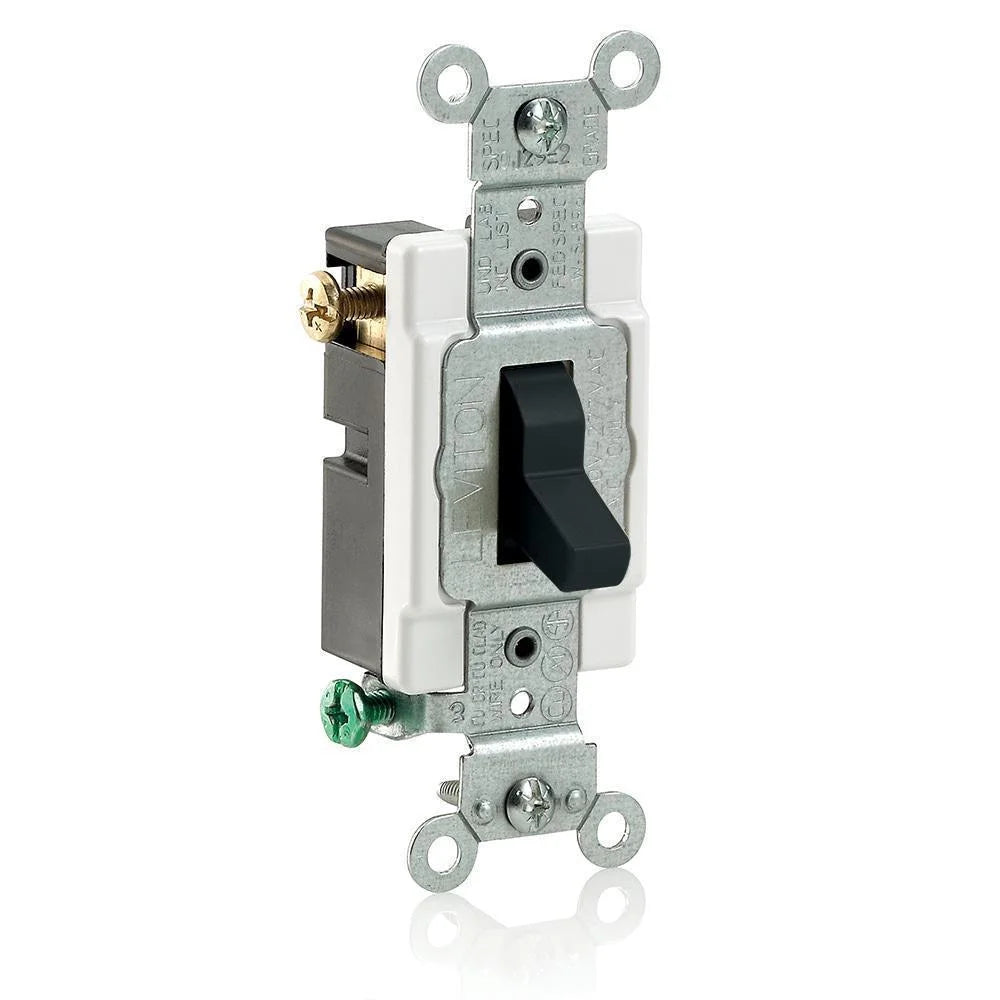

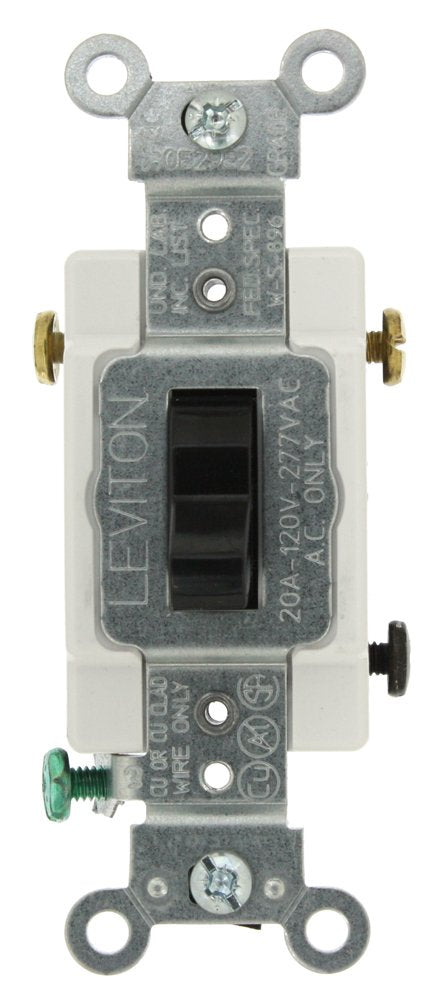

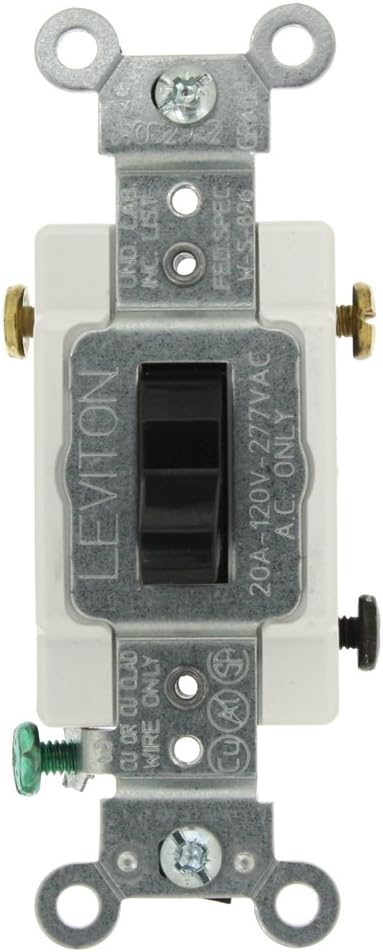

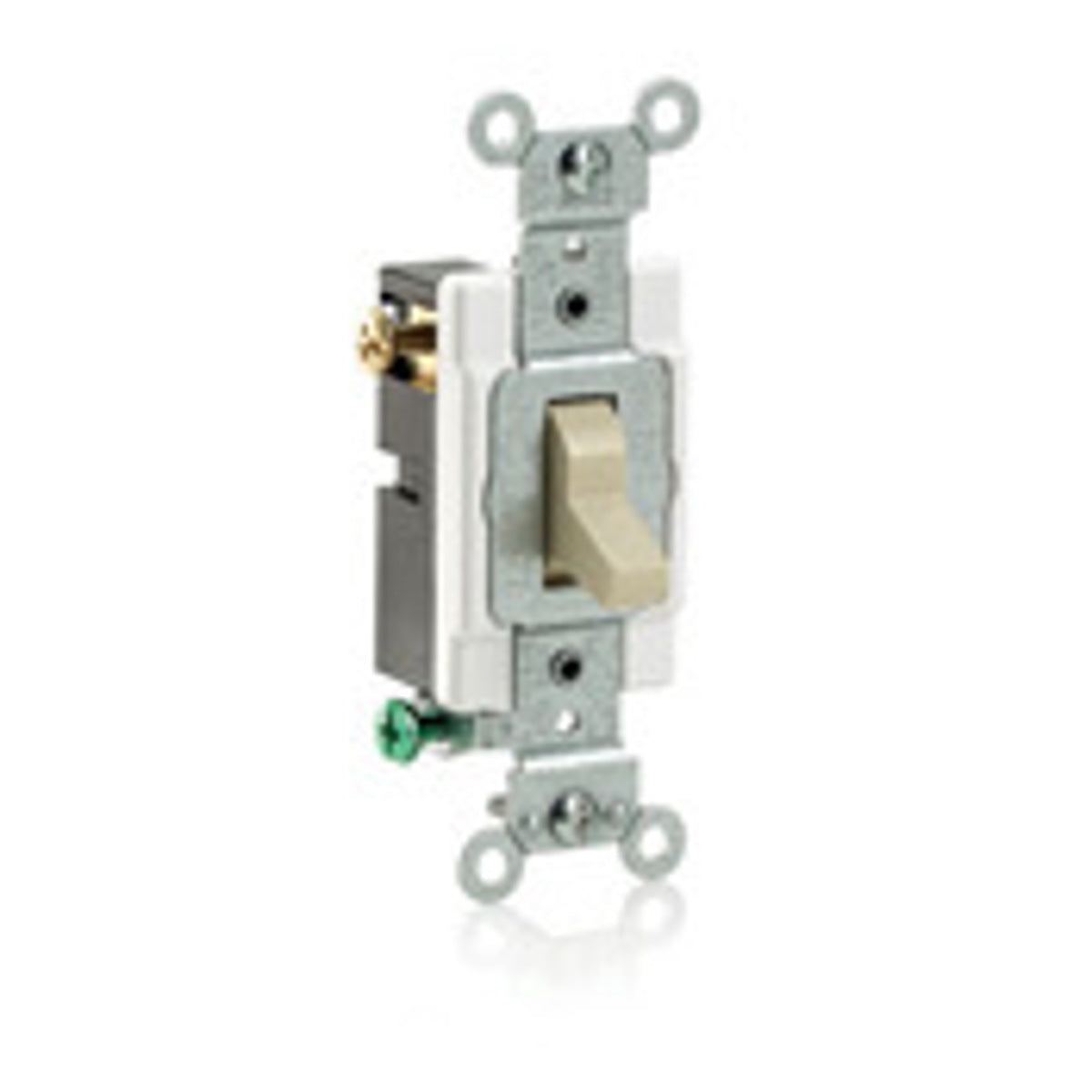

Leviton CS320-2E 20-Amp, 120/277-Volt, Toggle 3-Way AC Quiet Switch, Commercial Grade, Grounding

Brand: LEVITON
SKU: CS320-2E
Availability: In Stock

Ships same day if ordered by 12 pm
$24.54
$24.54
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Leviton CS320-2E is a 20-Amp, 120/277-Volt, toggle 3-way AC quiet switch designed for commercial use and grounding. This switch offers outstanding reliability and top performance in commercial settings. It is suitable for municipal facilities, government buildings, malls, hospitals, office buildings, schools, and universities.

  • 20-Amp
  • 120/277-Volt
  • Toggle 3-Way

Product Highlights

This AC quiet switch is commercial grade and grounding, ensuring durability and safety in various applications.

Product Information

Standard Information

  • Brand: LEVITON
  • Manufacturer Part Number: CS320-2E
  • Country of Origin: Mexico
Technical Specifications
Color
Black
Voltage
120/277 VAC
Circuit Type
3-way
Connector Type
Quick Connect
Current Rating
16-30 A
Operation Mode
ON-OFF
Amperage Capacity
20 Amps
Specification Met
UL
Batteries Included?
No
Batteries Required?
No
Included Components
CS320-2E
Actuator
Toggle
Application
Commercial Applications
Contact Rating
1 hp at 120 VAC, 2 hp at 240 to 277 VAC
Enclosure
NEMA WD-1/WD-6
Environmental Conditions
-40 to 120 deg C Operating Temperature
Manufacturer Part Number
CS320-2E
Material
Thermoplastic
Mounting
Surface
Operating Cycles
50000 Cycles
Power Rating
800 W, 1000 VA
Standards/Approvals
ANSI C73|CSA C22.2 No. 111 File No. 152105|NOM 057|Federal Specification WS896E File No. E7458|UL 20|UL94 V-2 Flammability Rating
Terminal Type
Side Wire
Type
3-Way Grounding
RoHS Compliant
True
Endurance
50,000 cycles minimum
Grounding
Grounding
Termination
Side Wire
Body Material
Thermoplastic
Strap Material
Steel
Max. Amperage
16 Amp
Flammability
Rated V-2 per UL94
Actuator Material
Thermoplastic
Terminal Accom.
14-12 AWG
Temperature Rise
Max 30 C temp rise at full-rated current after 150 cycles of OL at 150% rated DC current
Dielectric Voltage
Withstands 1500V for 1 minute
Overload UL20 Test
100 cycles of OL at 4.8 times rated current
Screw Terminal Torque
14-18 in-lbs
Operating Temperature
-40 C to 65 C
Manufacturer Item Status
Active
Manufacturer Name
Leviton
Brand Name
Leviton
UPC
078477073063
GTIN
00078477073063
Alternative Part Number
7335724
Operating Cycles UOM
Cycles
Voltage Rating UOM
VAC
Country of Origin
Mexico
Made in USA
Yes
Connection
Side Wired
Mounting Type
Panel Mount
Number of Poles
3
Standard
NEMA (WD-1 and WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 111 (File 152105);UL Fed Spec WS-896E (File E7458);UL Standard (UL 20)
Item Type
Toggle Switch
Width
1.31
Switch Type
Toggle 3-Way AC Quiet Switch
Grade
Commercial Grade
Maximum Current
20 Amps
Operating Voltage
277 Volts (AC)
Smart Home Compatibility
Not Smart Home Compatible
Compatible Devices
All devices that can be wired to a 120/277-Volt, 20-amp circuit
Control Type
Manual
Number of Positions
3
Current Type
AC
Operation Method
On/Off
Fuse Type
Switch
Contact Material
Thermoplastic
Mounting Style
Panel
Number of Phases
1
Power
800 W, 1000 VA
Item Name
Toggle AC Quiet Switch
Action
Maintained
Terminal Connection
Side Wired
Temperature Rating
-40 to 65 deg C
Standards
UL 20 Listed, CSA C22.2 No.111, 152105 Certified, Federal Specification: WS896E, NOM 057 Certified, ANSI C-73, NEMA WD-1, WD-6
AC Horsepower Ratings
HP Rating : 1HP-120V 2HP-240V-277V
Base Material
PBT
Contacts
Silver-Cadmium .031 Thick
Cover Material
Nylon
Terminal Screws
Steel 8-32
Toggle
Polycarbonate
Product ID
Stamped on Strap
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Device Type
Toggle Switch
Function
3-Way
ANSI
C-73
CSA C22.2 No. 111
File #152105
NEMA
WD-1 & WD-6
NOM
057
UL Fed Spec WS896E
File #E7458
UL Standard
UL 20
Suitable For
Wall
Termination Type
Screw
Maximum Amperage
20 A
