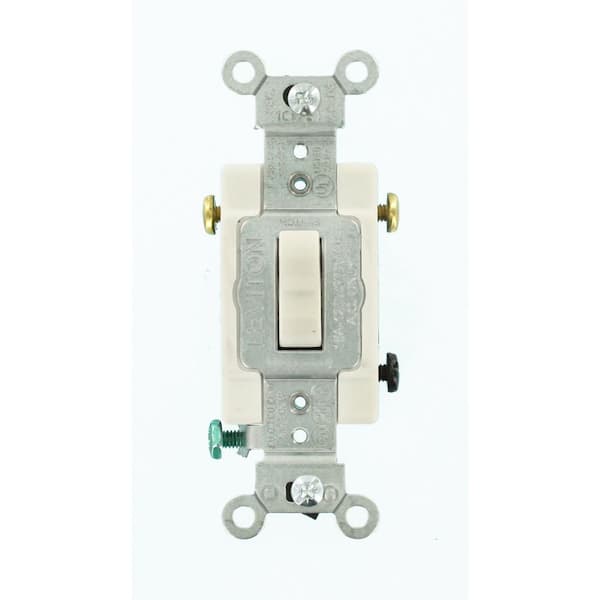

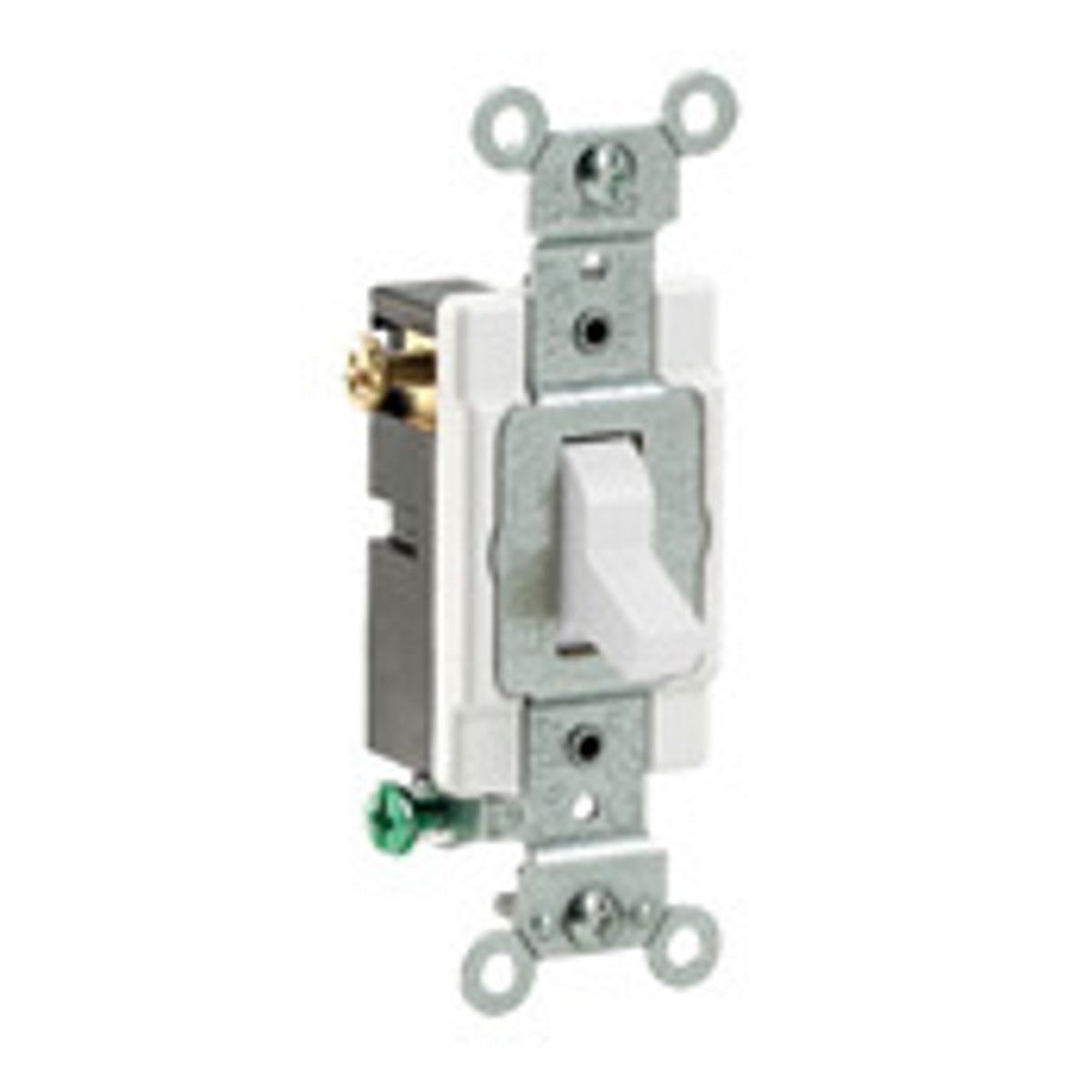

Leviton CS315-2W 3-way Toggle Switch, 120/277 VAC, 15 A, 1/2 hp/2 hp

Product Description

The Leviton CS315-2W is a 3-way toggle switch with a voltage rating of 120/277 VAC, amperage of 15 A, and power rating of 1/2 hp/2 hp. Designed for commercial settings, this switch ensures reliability and top performance. It is suitable for municipal facilities, government buildings, and healthcare facilities. The switch features side wire connection.

• Heavy-duty pre-plated steel mounting strap for maximum strength
• All screws are plated-steel combination-head for fast installation
• AC Quiet switch

Product Highlights

The Leviton CS315-2W is ideal for replacing existing switches or adding new ones. It accepts both solid and stranded wire.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: CS315-2W
• Country of Origin: Mexico

Technical Specifications

• Type: 3 Way
• Amperage: 15 Amp
• Voltage: 120/277 Volt
• Switch Type: 3-Way
• Grade: Commercial Grade
• Feature: Ac Quiet
• Grounding: Grounding
• Actuator: Toggle
• Amperage Rating: 15 A
• Contact Rating: 1/2 hp at 120 VAC, 2 hp at 240 VAC
• Enclosure: NEMA WD-1/WD-6
• Environmental Conditions: -40 to 120 deg C Operating Temperature
• Material: Thermoplastic
• Mounting: Surface
• Power Rating: 1/2, 2 hp
• Terminal Type: Side Wire
• Voltage Rating: 120/277 VAC
• Manufacturer: LEVITON
• Country of Origin: US
• Environment: -40 to 120 deg C
• Mfg Standards/Approvals: ANSI (C-73), CSA C22.2 No. 111 (File 152105) Certified, NEMA (WD-1 and WD-6), NOM Certified (057), RoHS Compliant, UL Fed Spec WS896E (File E7458), UL 20 Listed
• Terminal Gauge Max: 10 AWG ga
• Terminal Gauge Min: 14 AWG ga
• Operating Temperature: -40 to +120 DEG C
• Cross Reference Products: CS315W
• Dielectric Voltage: Withstands 1500V for 1 minute
• Temperature Rise: 30 degrees C
• Flammability: Rated V-2 per UL94
• Actuator Material: Thermoplastic
• Base Material: PBT
• Body Material: Thermoplastic
• Cover Material: Nylon
• Strap Material: Steel
• Terminal Screws: Steel 8-32
• Toggle: Polycarbonate
• Product ID: Stamped on Strap
• Screw Terminal Torque: 14-18 in-lbs
• Terminal Accom.: 14-12 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Termination: Side Wire
• Device Type: Toggle Switch
• Function: 3-Way
• HP Rating: 1/2HP-120V 2HP-240V-277V
• ANSI: C-73
• CSA C22.2 No. 111: File #152105
• NEMA: WD-1 & WD-6
• NOM: 057
• UL Fed Spec WS896E: File #E7458
• UL Standard: UL 20
• Applications: Commercial
• Connection Type: Side Wired
• Contact Material: Silver-Cadmium
• Horsepower: 1/2 hp
• Max Current: 12 A
• Mounting Type: Box
• Number of Poles: 1 Pole
• Standard: CSA,UL
• TC Connection: Side Wired
• Termination Type: Side Wire
• Toggle Material: Polycarbonate
• Torque: 12 lb-in
• Sub Brand: COMM SWITCHES
• 12-Digit UPC: 078477815632
• UPC Code: 078477815632
