Product Description

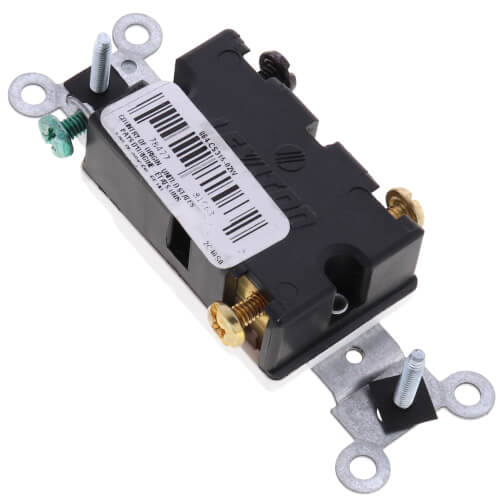

The Leviton CS315-2W is a three-way AC quiet toggle switch. This switch operates at 15 amps and supports a voltage range of 120 to 277 volts. It is suitable for use in commercial and residential applications. The switch features grounding, side wired connectivity, and a thermoplastic body for durability.
- Voltage: 120/277 volts
- Amperage: 15 amps
- HP Rating: 1/2HP at 120V, 2HP at 240V
Product Highlights
This switch is designed for a variety of applications including commercial buildings and residential use. It provides reliable performance for controlling lighting and other electrical devices.
Product Information
Standard Information
-
Brand: Leviton
-
MPN: CS315-2W
Technical Specifications
-
Type: 3-Way Grounding Toggle Switch
-
Color: White
-
Material: Thermoplastic
-
Mounting: Surface
-
Enclosure: NEMA WD-1/WD-6
-
Dimensions: 46 inches H x 1.31 inches W x 0.92 inches D
-
Environmental Conditions: Operating Temperature: -40 to 120 degrees C
-
Voltage Rating: 120/277 VAC
-
Amperage Rating: 15 A
-
Contact Rating: 1/2 HP at 120 VAC, 2 HP at 240 VAC
