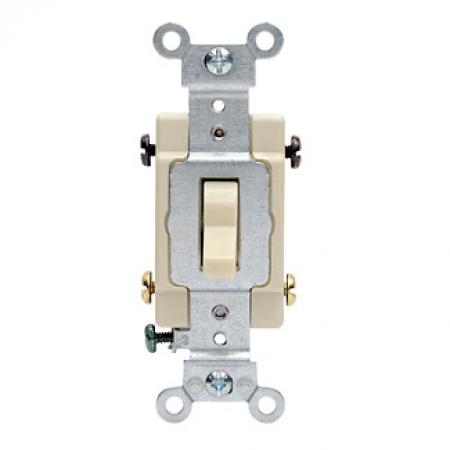

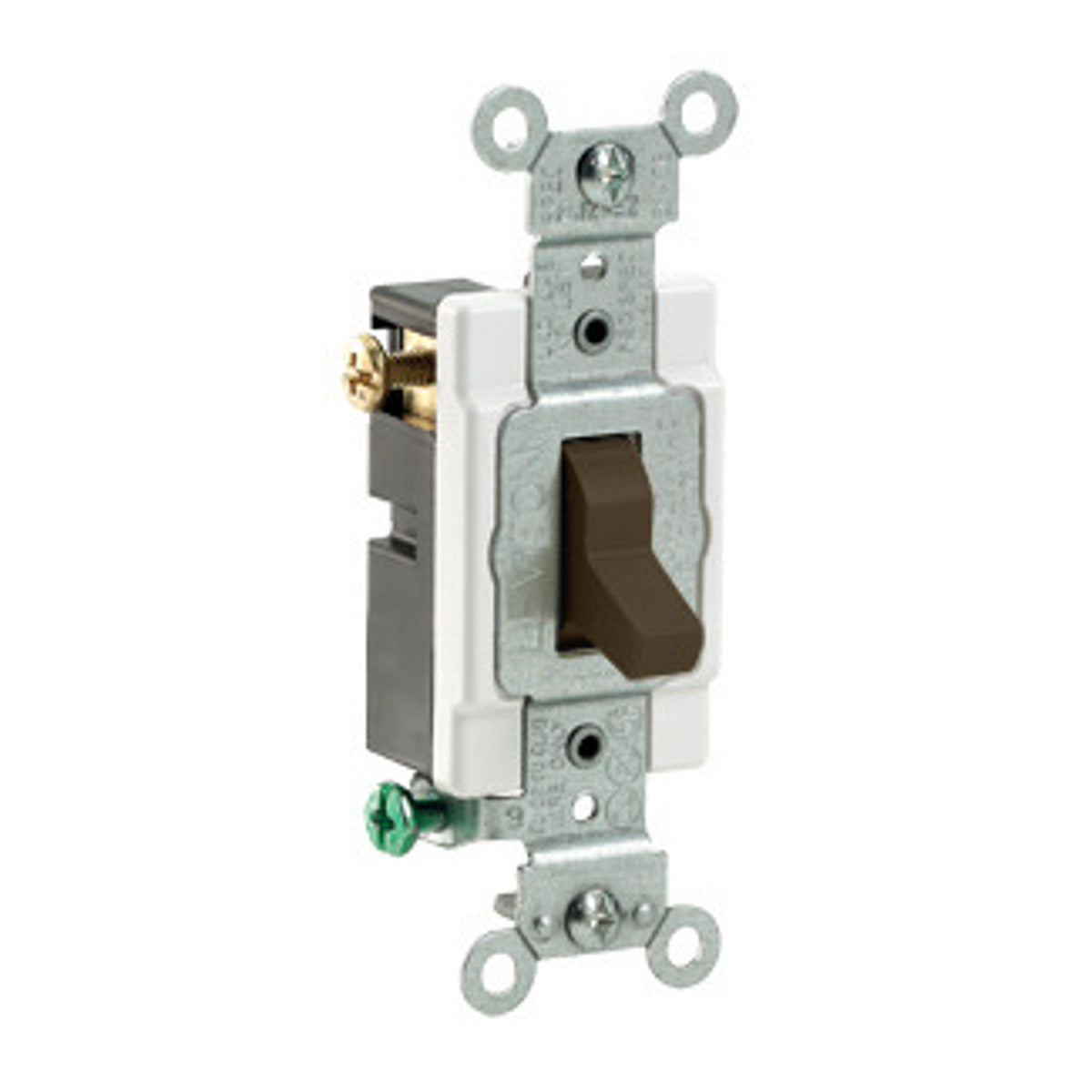

Leviton CS315-2 Toggle 3-Way AC Quiet Switch 15 Amp

Brand: LEVITON
SKU: CS315-2
Availability: In Stock

Ships same day if ordered by 12 pm
$15.86
$15.86
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The LEVITON CS315-2 is a 15 Amp, 120/277 Volt, Toggle 3-Way AC Quiet Switch designed for commercial applications. This commercial specification grade switch offers reliability and performance. It is side wired and grounding. Suitable for municipal facilities, government buildings and commercial settings.

  • Side wired connection
  • Commercial specification grade
  • Quiet switch operation

Product Highlights

This LEVITON toggle switch is ideal for commercial settings requiring a reliable and durable 3-way switch.

Product Information

Standard Information

  • Brand: LEVITON
  • Manufacturer Part Number: CS315-2
  • Country of Origin: Mexico
Technical Specifications
Catalog Number
CS315-2
Manufacturer
Leviton
Brand
Leviton
Country of Origin
Mexico
Made in USA
No
Actuator
Toggle
Amperage Rating
15 A
Application
Commercial
Connection
Side Wired
Mounting
Box
Number of Poles
3
Standard
NEMA (WD-1 and WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 111 (File 152105);UL Fed Spec WS-896E (File E7458);UL Standard (UL 20)
UPC
078477815601
GTIN
00078477815601
Item Type
Toggle Switch
Width
1.31 Inch
Depth
.92 Inch
Environmental Conditions
Flammability (Rated V-2 per UL94)
Operating Temperature
-40 to +120 DEG C
Voltage Rating
120/277 VAC
ECCN
EAR99
UNSPSC
39122211
Switch Style
Toggle Switch
Grade
Commercial
Rated Voltage
277V ac
Contact Rating
1/2 hp at 120 VAC, 2 hp at 240 VAC
Enclosure
NEMA WD-1/WD-6
Material
Thermoplastic
Mounting Type
Surface
Power Rating
1/2, 2 hp
Standards/Approvals
ANSI C73|CSA C22.2 No. 111 File No. 152105|NOM 057|Federal Specification WS896E File No. E7458|UL 20|UL94 V-2 Flammability Rating
Terminal Type
Side Wire
Type
3-Way Grounding
HP Rating
1/2HP-120V 2HP-240V-277V
Amperage
15 A
Dielectric Voltage
Withstands 1500V for 1 minute
Temperature Rise
Maximum 30 degrees C rise
Flammability
Rated V-2 per UL94
Terminal Screws
Steel 8-32
Terminal Accom.
14-12 AWG
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Termination
Side Wire
Device Type
Toggle Switch
Function
3-Way
ANSI
C-73
CSA C22.2 No. 111
File #152105
NEMA
WD-1 & WD-6
NOM
057
UL Fed Spec WS896E
File #E7458
UL Standard
UL 20
