Product Description

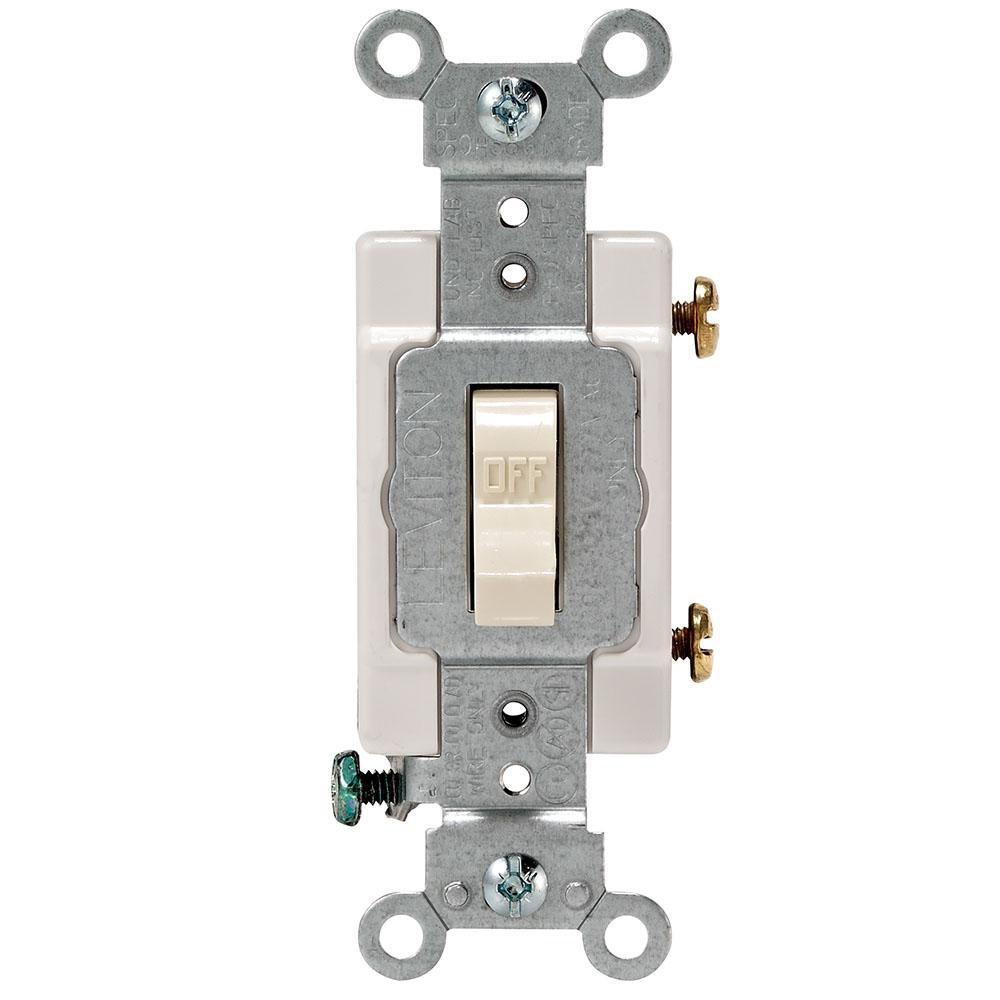

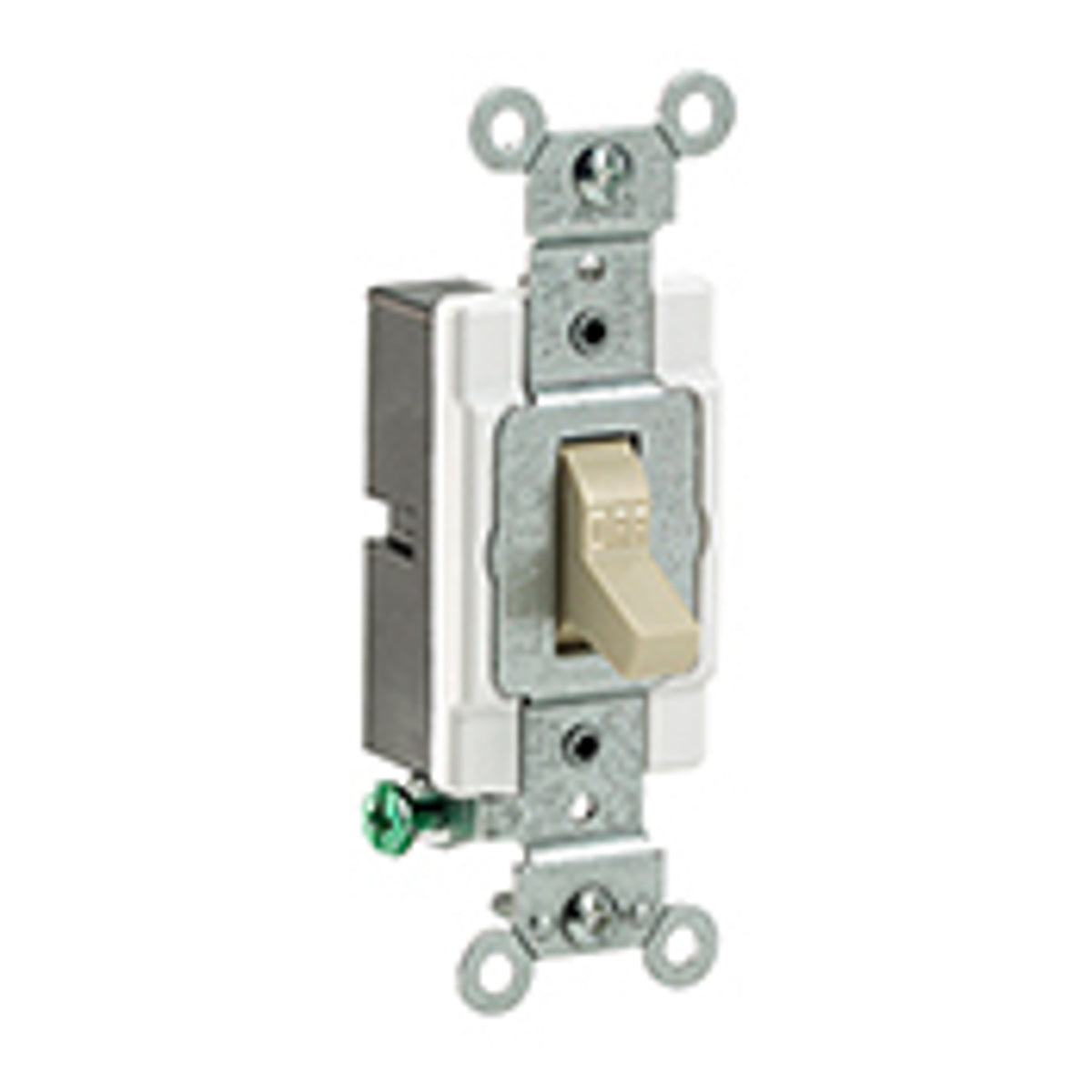

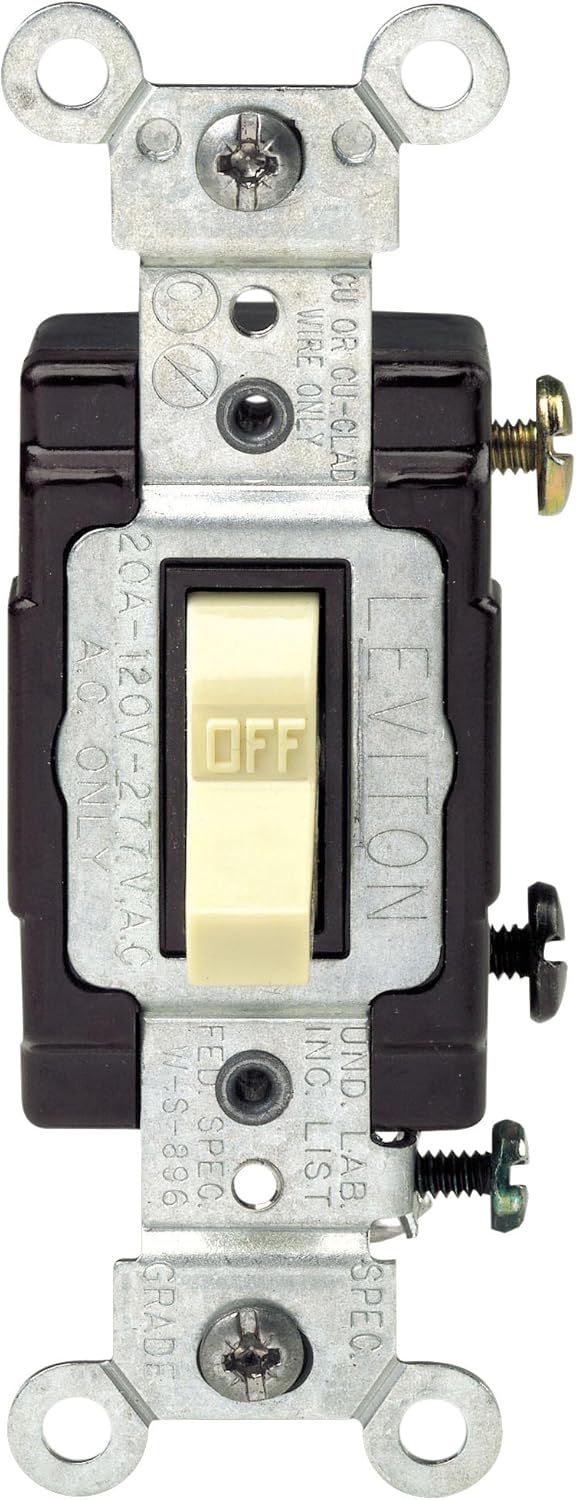

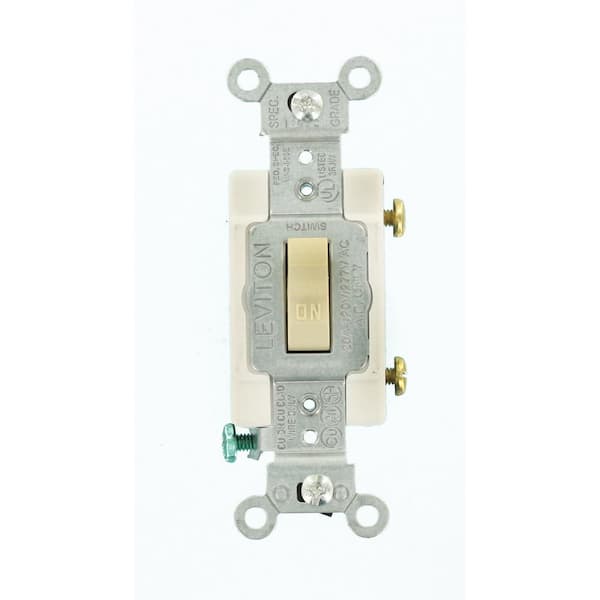

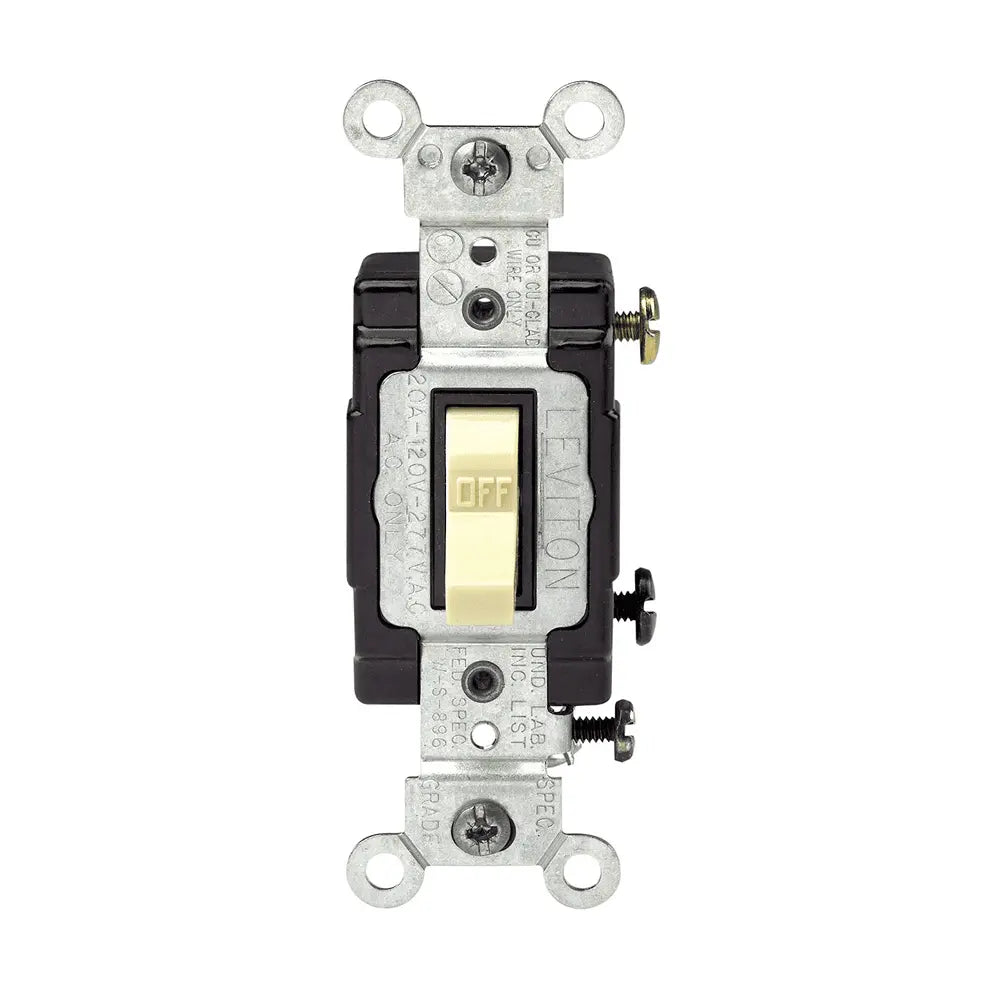

The Leviton CS120-2I is a 20-Amp, 120/277-Volt, toggle single-pole AC quiet switch designed for commercial use. This switch offers outstanding reliability and top performance in commercial settings. It is suitable for various applications. The switch features a thermoplastic body and a polycarbonate actuator.
- 20-Amp
- 120/277-Volt
- Toggle Single-Pole
Product Highlights
This commercial-grade switch is ideal for municipal facilities, government buildings, malls, and hospitals.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: CS120-2I
-
Country of Origin: US
Technical Specifications
-
Color: Ivory
-
Voltage: 120/277 VAC
-
Switch Type: 1-Pole
-
Switch Style: Toggle
-
Connector Type: Quick Connect
-
Current Rating: 20 Amp
-
Operation Mode: ON-OFF
-
Batteries Included?: No
-
Batteries Required?: No
-
Included Components: CS120-2I
-
Insulation Resistance: 20 Megaohms
-
Power Rating: 800 W, 1000 VA
-
Material: Thermoplastic
-
Approval: UL 20, CSA C22.2, NOM 057
-
Operating Temperature: -40 degrees C
-
Grounding Type: Self Grounding
-
Strap Material: Steel
-
Contact Material: Silver-Cadmium
-
Wire Size: 14 to 12 AWG (Side)
-
Actuator: Toggle
-
Enclosure: NEMA WD-1/WD-6
-
Mounting: Surface
-
Terminal: Side Wire
-
Amperage Rating: 20 A
-
Number Of Poles: Single-Pole
-
Environmental Conditions: Flammability (Rated V-2 per UL94)
-
Contact Configuration: SP
-
Contact Rating: 1 hp at 120 VAC, 2 hp at 240 VAC
-
Terminal Type: Side Wire
-
Application: Commercial Applications
-
Standards/Approvals: ANSI C73|CSA C22.2 No. 111 File No. 152105|NOM 057|Federal Specification WS896E File No. E7458|UL 20|UL94 V-2 Flammability Rating
-
Manufacturer Part Number: CS120-2I
-
Mfg Standards/Approvals: ANSI (C-73), CSA C22.2 No. 111 (File 152105) Certified, NEMA (WD-1 and WD-6), NOM Certified (057), RoHS Compliant, UL Fed Spec WS896E (File E7458), UL 20 Listed
-
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
-
Termination: Side Wire
-
Flammability: Rated V-2 per UL94
-
Temperature Rise: Maximum 30 degrees C rise
-
Dielectric Voltage: Withstands 1500V for 1 minute
-
Screw Terminal Torque: 14-18 in-lbs
-
Base Material: PBT
-
Body Material: Thermoplastic
-
Cover Material: Nylon
-
Toggle: Polycarbonate
-
Contacts: Silver-Cadmium .031 Thick
-
UPC: 078477815717
-
GTIN: 00078477815717
-
Standard: UL 20
-
Connection: Screw terminal
-
Country of Origin: US
-
Grade: Commercial
-
Action: SP
-
Horsepower: 1 hp
-
Device Type: Toggle Switch
-
Rated Voltage: 120/277V AC
-
Switch Function: Maintained
-
Description/Special Features: Quiet Switch
-
HP Rating: 1HP-120V 2HP-240V
-
Terminal Accom.: 14-12 AWG
-
Voltage Rating UOM: VAC
-
Amperage Rating UOM: A
-
Country: USA|Canada
-
Manufacturer Item Status: Active
-
Manufacturer Name: Leviton
-
Brand Name: Leviton
-
Alternative Part Number: 7334052
-
IDEA Index ID: 7334052
-
IGCC: 5200
-
Catalog Number: CS120-2I
-
Made in USA: Yes
-
Item Type: Toggle Switch
-
Width UOM: Inch
-
Height UOM: Inch
-
Depth UOM: Inch
-
Cross Reference Products: CS20AC1I
-
Rated HP: 1
-
Voltage AC: 120 to 277
-
Wiring Method: Side
-
Application Environment: Commercial
-
Country of Origin (subject to change): United States
-
ECCN: EAR99
-
UNSPSC: 39122211
-
No. of Poles: 1
-
Maximum Load Capacity: 1 hp at 120 Volt, 2 hp at 240 Volt
-
Item Name: Toggle AC Quiet Switch
-
Terminal Accommodations: 14-12 AWG
-
Terminal Connection: Side Wired
-
Temperature Rating: -40 to 65 deg C
-
Standards: UL 20 Listed, CSA C22.2 No.111, 152105 Certified, Federal Specification: WS896E, NOM 057 Certified, ANSI C-73, NEMA WD-1, WD-6
-
Operating Voltage: 277 Volts (AC)
-
Smart Home Compatibility: Not Smart Home Compatible
-
Compatible Devices: Standard electrical devices and systems operating within 120/277 volts and requiring a 20-amp circuit
-
Control Type: Manual
-
Number of Positions: 1
-
Circuit Type: Single Pole
-
Contact Type: Wiping
-
Specification Met: CSA
-
International Protection Rating: IP67
-
RoHS Compliant: True
-
Product ID: Stamped on Strap
-
Terminal Screws: Steel 8-32
-
Dielectric Strength: 1500 volts
-
RoHS Flag: Contact manufacturer
-
Terminal Gauge Max: 10 AWG ga
-
Terminal Gauge Min: 14 AWG ga
-
Energy Star Flag: No
