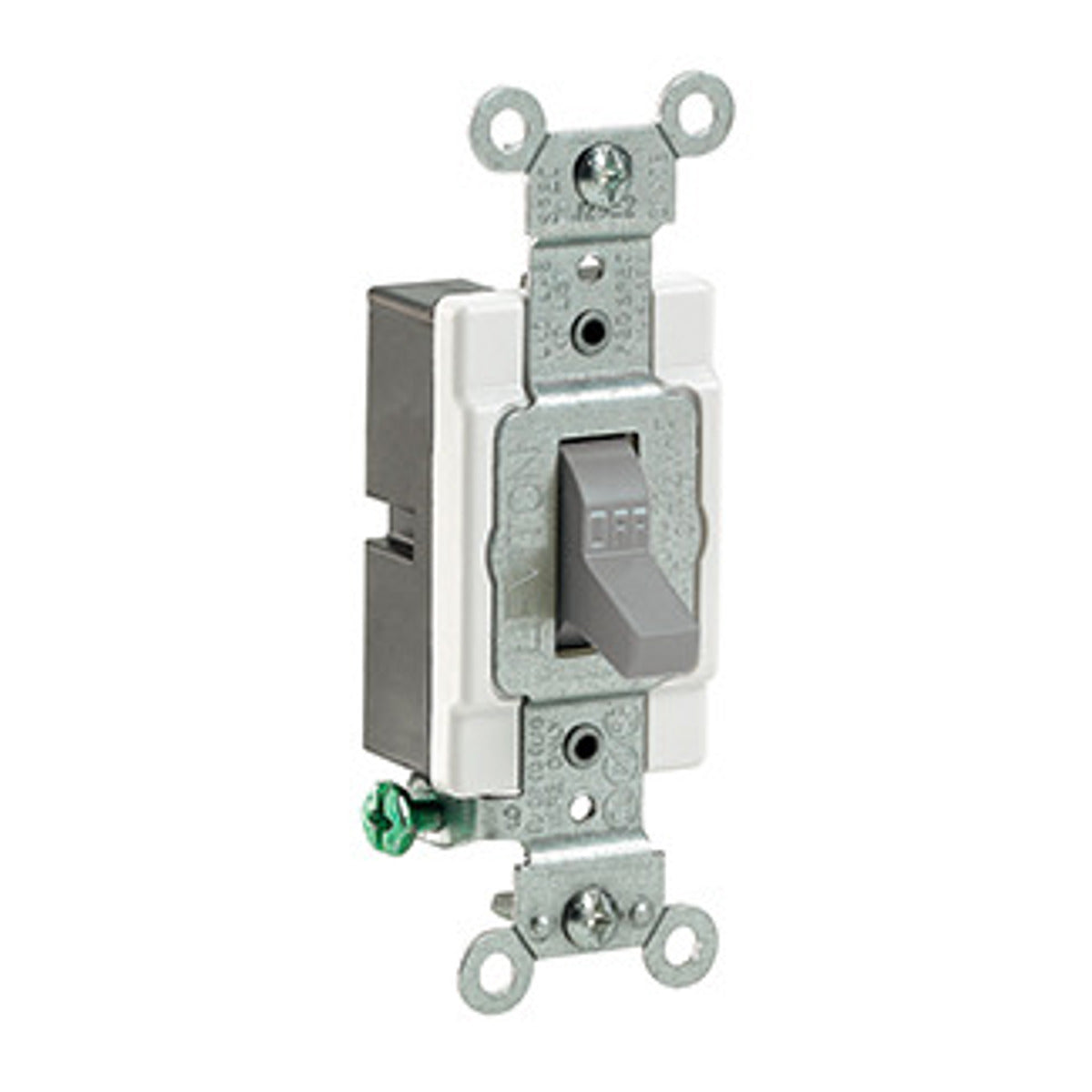

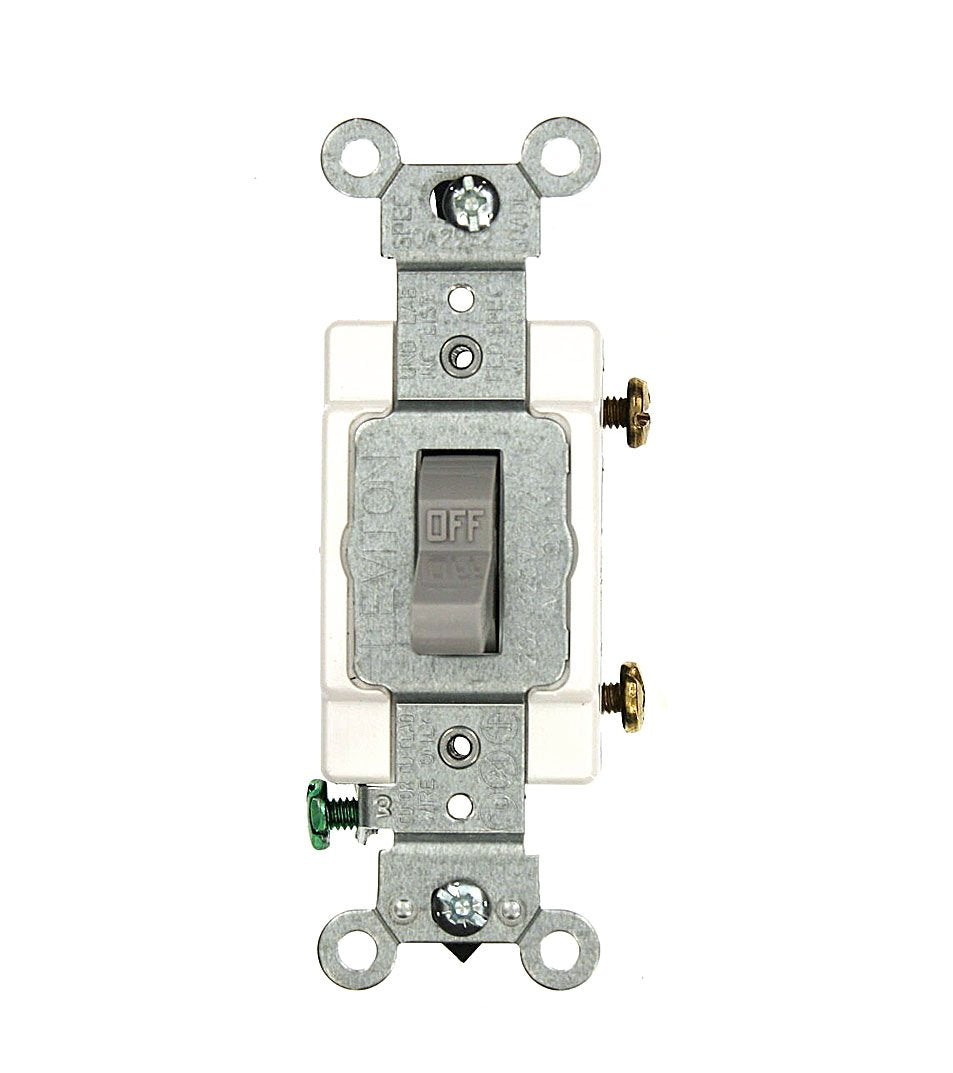

Leviton CS120-2GY Toggle Single-Pole AC Quiet Switch 120/277 Volt

Product Description

The LEVITON CS120-2GY is a toggle single-pole AC quiet switch, designed for commercial applications. Rated at 120/277V, this switch offers reliable performance. Ideal for use in commercial settings such as municipal facilities, government buildings, and hospitals. Features side wired connection for easy installation.

• Voltage: 120/277 Volt
• HP Rating: 1HP-120V 2HP-240V-277V
• Actuator Material: Thermoplastic

Product Highlights

The LEVITON CS120-2GY switch ensures durability and top performance in various commercial environments.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: CS120-2GY
• Country of Origin: United States

Technical Specifications

• Voltage: 120/277 VAC
• HP Rating: 1HP-120V 2HP-240V-277V
• Actuator Material: Thermoplastic
• Catalog Number: CS120-2GY
• Manufacturer: Leviton
• Brand: Leviton
• Country of Origin: United States
• Made in USA: Yes
• Action: SP
• Actuator: Toggle
• Amperage Rating: 20 A
• Application: Commercial
• Connection: Side Wired
• Mounting: Box
• Number of Poles: 1
• Standard: NEMA (WD-1 and WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 111 (File 152105);UL Fed Spec WS-896E (File E7458);UL Standard (UL 20)
• UPC: 078477815731
• GTIN: 00078477815731
• Item Type: Toggle Switch
• Width: 1.31 Inch
• Depth: .92 Inch
• Environmental Conditions: Flammability (Rated V-2 per UL94)
• Operating Temperature: -40 to +120 DEG C
• Voltage Rating: 120/277
• Cross Reference Products: CS20AC1GRY
• Power Rating: 800 W, 1000 VA
• Contact: SP
• Contact Configuration: SP
• Contact Rating: 1 hp at 120 VAC, 2 hp at 240 to 277 VAC
• Enclosure: NEMA WD-1/WD-6
• Material: Thermoplastic, Nylon
• Terminal Type: Side Wire
• Type: Grounding
• Standards/Approvals: ANSI C73|CSA C22.2 No. 111 File No. 152105|NOM 057|Federal Specification WS896E File No. E7458|UL 20|UL94 V-2 Flammability Rating
• Terminal Accom.: 14-12 AWG
• Dielectric Voltage: Withstands 1500V for 1 minute
• Temperature Rise: Maximum 30 degrees C rise
• Screw Terminal Torque: 14-18 in-lbs
• Poles: 1
• Wiring Method: Side
• Switch Function: Maintained
• Description/Special Features: Quiet Switch
• Rated HP: 1
• Amps AC: 20
• Standards: NEMA: WD-1 and WD-6, ANSI: C-73, UL Fed Spec WS896E: File #E7458, UL Standard: UL20, CSA C22.2 No. 111: File #152105, NOM: 057
• Volts AC: 120, 277
• Switch Type: 1-Pole
• Switch Style: Toggle
• Application Environment: Commercial
• Termination: Side
• Body Material: Thermoplastic
• Strap Material: Steel
• Toggle: Polycarbonate
• Contacts: Silver-Cadmium .031 Thick
• Cover Material: Nylon
• Product ID: Stamped on Strap
• Terminal Screws: Steel 8-32
• Function: Single-Pole
• Grade: Commercial Specification Grade
• RoHS Compliant: True
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Maximum Load Capacity: 1 hp at 120 Volt, 2 hp at 240 Volt
• Terminal Accommodations: 14-12 AWG
• Terminal Connection: Side Wired
• Temperature Rating: -40 to 65 deg C
• Mounting Style: Surface
• Maximum Amperage: 20 A
• Termination Type: Screw
• Item Height: 4.06 in.
• Item Length: 0.92 in.
• Item Width: 1.31 in.
