Product Description

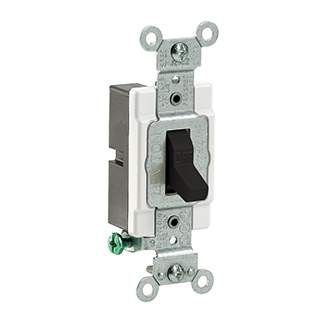

The Leviton CS120-2E is a toggle switch designed for commercial use. This switch operates at 20 Amps and 120/277 Volts. It is ideal for a variety of applications in municipal buildings, hospitals, educational institutions, and retail environments. This model features a robust thermoplastic body that enhances its durability and longevity.
- Commercial specification grade switch for reliability.
- Accommodates terminal sizes from fourteen to twelve AWG.
- Temperature rating from negative forty to positive one hundred twenty degrees Celsius.
Product Highlights
This switch is engineered for superior performance and offers a high load capacity of 1 hp at 120 Volts and 2 hp at 240 Volts. Side wired connection allows for versatile installation options.
Product Information
Standard Information
-
Catalog Number: CS120-2E
-
Manufacturer: Leviton
Technical Specifications
-
Power Rating: 800 W, 1000 VA
-
Number of Poles: 1
-
Grounding: Grounding
-
Mounting Type: Box
-
Body Material: Thermoplastic
-
Actuator: Toggle
-
Environmental Conditions: V2 Flammability Rated Per UL94
