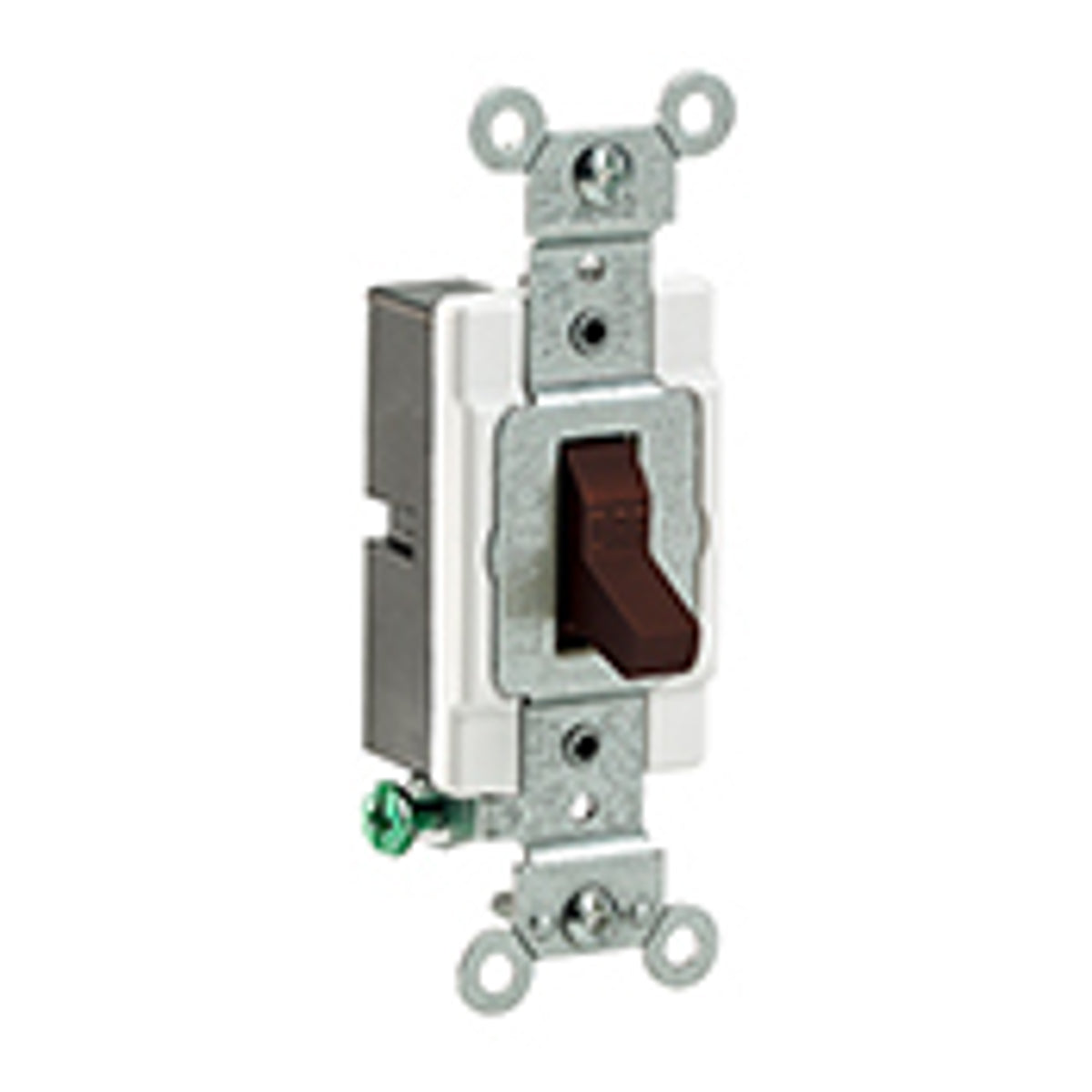

Leviton CS120-2 20-Amp, 120/277-Volt, Toggle Single-Pole AC Quiet Switch, Commercial Grade, Grounding

Product Description

The Leviton CS120-2 is a 20-Amp, 120/277-Volt, toggle single-pole AC quiet switch, commercial grade, grounding. Leviton's Commercial Specification Grade switches are designed for outstanding reliability and top performance in commercial settings. Ideal for municipal facilities, government buildings, malls, and hospitals.

• 20-Amp
• 120/277-Volt
• Toggle Single-Pole

Product Highlights

This AC quiet switch is commercial grade and grounding, ensuring top performance and reliability in various commercial applications.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: CS120-2
• Country of Origin: United States

Technical Specifications

• Material: Thermoplastic Housing, Polycarbonate Toggle
• Terminal: Side Wire
• Mounting Type: Wall Mount
• Voltage: 120/277 Volt
• Amperage: 20 A
• Power: 800 W, 1000 VA
• Contact Configuration: SP
• Pole: 1
• Actuator: Toggle
• Enclosure: NEMA WD-1/WD-6
• Mounting: Surface
• Operating Temperature: -40 to +120 DEG C
• Amperage Rating: 20 A
• Application: Commercial Applications
• Contact Rating: 1 hp at 120 VAC, 2 hp at 240 VAC
• Number of Poles: 1
• Power Rating: 1/2 hp
• Terminal Type: Screw
• Voltage Rating: 120/277 VAC
• Mfg Standards/Approvals: ANSI (C-73), CSA C22.2 No. 111 (File 152105) Certified, NEMA (WD-1 and WD-6), NOM Certified (057), RoHS Compliant, UL Fed Spec WS896E (File E7458), UL 20 Listed
• Environmental Conditions: V2 Flammability Rated Per UL94
• Standards/Approvals: ANSI C73|CSA C22.2 No. 111 File No. 152105|NOM 057|Federal Specification WS896E File No. E7458|UL 20|UL94 V-2 Flammability Rating
• Manufacturer Part Number: CS120-2
• Type: Grounding
• Brand: Leviton
• Grade: Commercial Specification Grade
• Wiring Syle: Side Wired
• Contact Type: Single Pole
• Market Class: C28
• Terminal Gauge Max: 10 AWG ga
• Terminal Gauge Min: 14 AWG ga
• Action: Maintained
• Connection: Side Wired
• Standard: NEMA (WD-1 and WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 111 (File 152105);UL Fed Spec WS-896E (File E7458);UL Standard (UL 20)
• Item Type: Toggle Switch
• Width: 1.31 Inch
• Depth: .92 Inch
• HP Rating: 1HP-120V 2HP-240V-277V
• Max. Amperage: 16 Amp
• Termination: Side Wire
• Actuator Material: Thermoplastic
• Body Material: Thermoplastic
• Strap Material: Steel
• Terminal Accom.: 14-12 AWG
• Terminal Screws: Steel 8-32
• Temperature Rise: Maximum 30 degrees C rise
• CSA C22.2 No. 111: File #152105
• Dielectric Voltage: Withstands 1500V for 1 minute
• UL Fed Spec WS896E: File #E7458
• Screw Terminal Torque: 14-18 in-lbs
• Application Environment: Commercial
• Description/Special Features: Quiet Switch
• Country of Origin (subject to change): United States
• ECCN: EAR99
• UNSPSC: 39122211
• Switch Style: Toggle
• No. of Poles: 1
• Poles: 1
• Terminal Size: 14 - 12-AWG
• Contact Material: Brass
• Color: Brown
• Rated HP: 1
• Contacts: Silver-Cadmium .031 Thick
• Function: Single-Pole
• Voltage AC: 120 to 277
• Device Type: Toggle Switch
• Switch Type: 1-Pole
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• UL Standard: UL 20
• Flammability: Rated V-2 per UL94
• Antimicrobial: No
• Base Material: PBT
• Wiring Method: Side
• Cover Material: Nylon
• Switch Function: Maintained
• Item: Wall Switch
• ANSI: C-73
• NEMA: WD-1 & WD-6
• AC Horsepower Ratings: HP Rating : 1HP-120V 2HP-240V-277V
• GTIN: 00078477815724
• UPC: 078477815724
• Standards: UL 20 Listed, CSA C22.2 No.111, 152105 Certified, Federal Specification: WS896E, NOM 057 Certified, ANSI C-73, NEMA WD-1, WD-6
• Maximum Load Capacity: 1 hp at 120 Volt, 2 hp at 240 Volt
• Item Name: Toggle AC Quiet Switch
• Amperage Rating UOM: A
• Voltage Rating UOM: VAC
• Country: USA|Canada
• Alternative Part Number: 7334061
• IDEA Index ID: 7334061
• Manufacturer Item Status: Active
• Manufacturer Name: Leviton
• Brand Name: Leviton
• Model / MPN: CS120-2
• Current Rating: 20 Amps
• AC Adapter Current: 20 Amps
• Operating Voltage: 120 Volts (AC)
• Operation Mode: ON-OFF
• Connector Type: Screw
• Grounding: Grounding
• Locking: No
• Toggle: Polycarbonate
• Amps AC: 20
• Description/Special Features [Specifications]: Quiet Switch
• Country of Origin (subject to change) [Specifications]: United States
• Color Family: Brown
• UNSPSC [Specifications]: 39122211
• Country of Origin [Specifications]: US - United States
• Catalog Number: CS120-2
• Manufacturer: Leviton
• Made in USA: Yes
• Connection [Specifications]: Side Wired
• Mounting [Specifications]: Box
• Number of Poles [Specifications]: 1
• Standard [Specifications]: NEMA (WD-1 and WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 111 (File 152105);UL Fed Spec WS-896E (File E7458);UL Standard (UL 20)
• UPC [Specifications]: 078477815724
• GTIN [Specifications]: 00078477815724
• Item Type [Specifications]: Toggle Switch
• Width [Specifications]: 1.31 Inch
• Depth [Specifications]: .92 Inch
• Environmental Conditions [Specifications]: Flammability (Rated V-2 per UL94)
• Operating Temperature [Specifications]: -40 C to 65 C
• Voltage Rating [Specifications]: 120/277
• Cross Reference Products [Specifications]: CS120
• ANSI [Specifications]: C-73
• Item [Specifications]: Wall Switch
• NEMA [Specifications]: WD-1 & WD-6
• Color [Specifications]: Brown
• Grade [Specifications]: Commercial Specification Grade
• Toggle [Specifications]: Polycarbonate
• Amps AC [Specifications]: 20
• Locking [Specifications]: No
• Voltage [Specifications]: 120/277 VAC
• Amperage [Specifications]: 20 A
• Contacts [Specifications]: Silver-Cadmium .031 Thick
• Function [Specifications]: Single-Pole
• Rated HP [Specifications]: 1
• HP Rating [Specifications]: 1HP-120V 2HP-240V-277V
• Standards [Specifications]: NEMA: WD-1 and WD-6, ANSI: C-73, UL Fed Spec WS896E: File #E7458, UL Standard: UL20, CSA C22.2 No. 111: File #152105, NOM: 057
• Voltage AC [Specifications]: 120 to 277
• Device Type [Specifications]: Toggle Switch
• Switch Type [Specifications]: 1-Pole
• Terminal ID [Specifications]: Brass-Hot, Green-Ground, Silver-Neutral
• Termination [Specifications]: Side Wire
• UL Standard [Specifications]: UL 20
• Flammability [Specifications]: Rated V-2 per UL94
• Switch Style [Specifications]: Toggle
• Antimicrobial [Specifications]: No
• Base Material [Specifications]: PBT
• Body Material [Specifications]: Thermoplastic
• Max. Amperage [Specifications]: 16 Amp
• Wiring Method [Specifications]: Side
• Cover Material [Specifications]: Nylon
• Switch Function [Specifications]: Maintained
• Terminal Accom. [Specifications]: 14-12 AWG
• Terminal Screws [Specifications]: Steel 8-32
• Temperature Rise [Specifications]: Maximum 30 degrees C rise
• Actuator Material [Specifications]: Thermoplastic
• CSA C22.2 No. 111 [Specifications]: File #152105
• Dielectric Voltage [Specifications]: Withstands 1500V for 1 minute
• UL Fed Spec WS896E [Specifications]: File #E7458
• Screw Terminal Torque [Specifications]: 14-18 in-lbs
• Application Environment [Specifications]: Commercial
