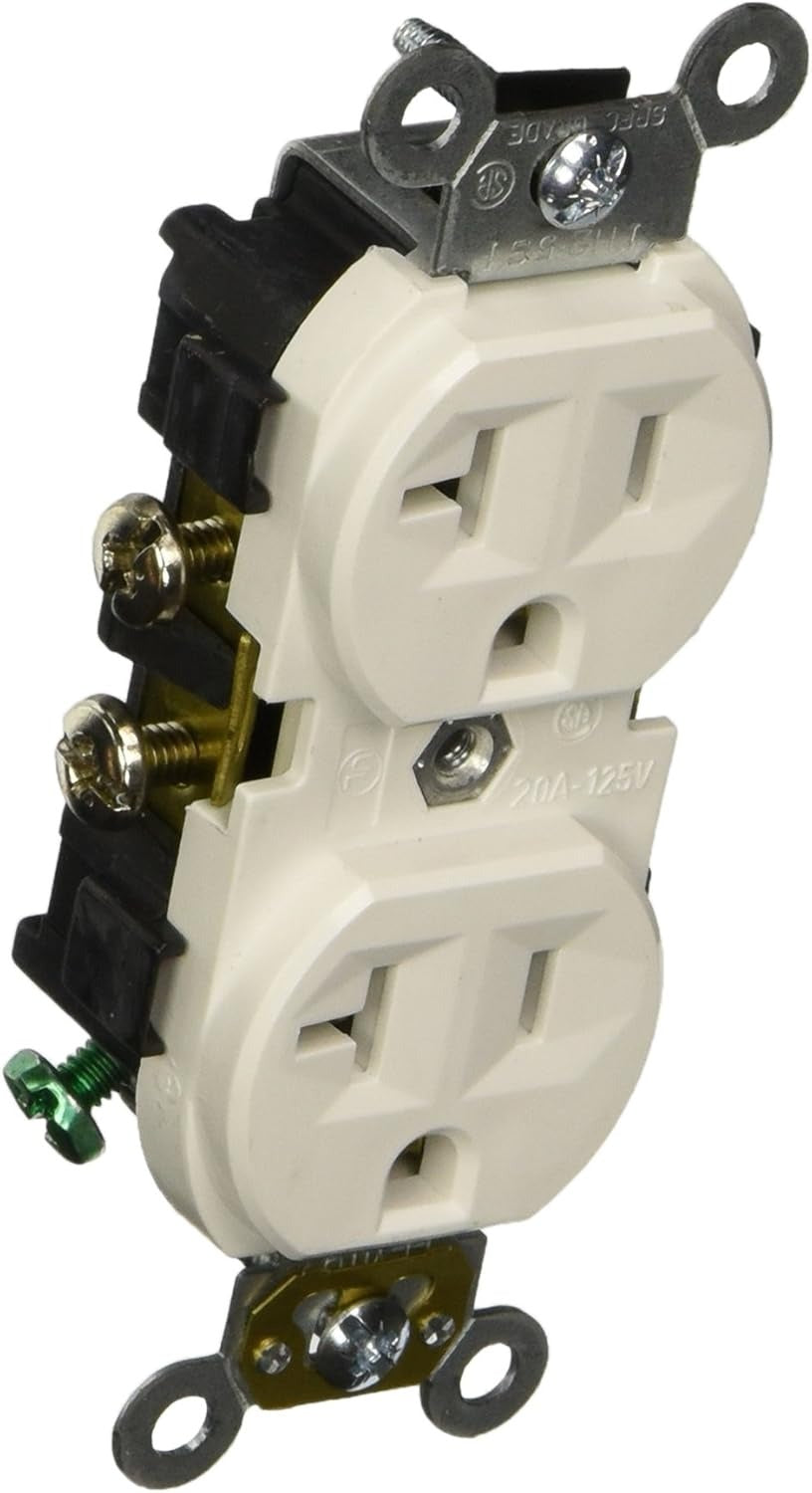

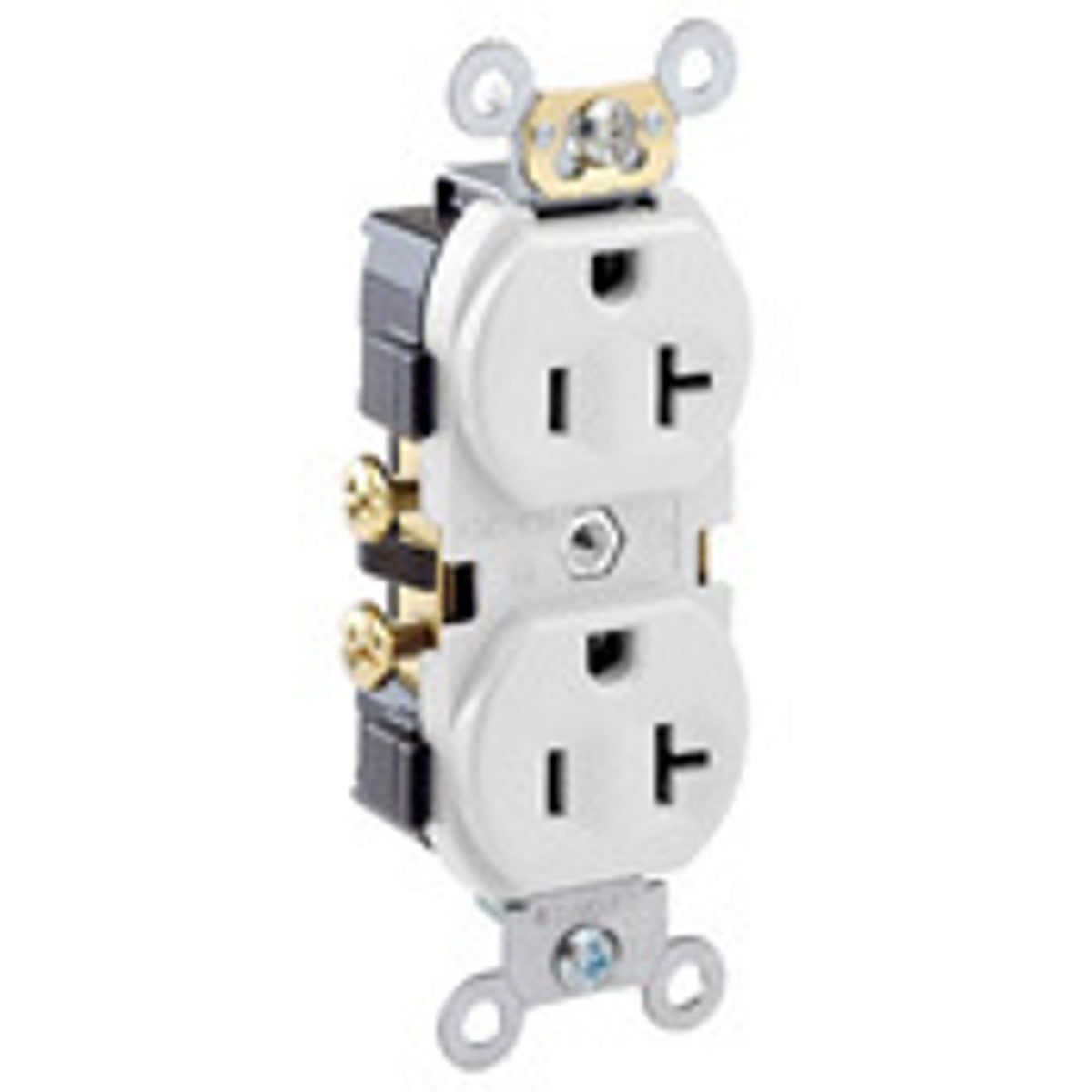

Leviton CR20-WS Heavy Duty Narrow Body Straight Blade Duplex Receptacle 20 A 125 V (Window Pack) S02-0CR20-0WS

Brand: LEVITON
SKU: CR20-WS
Availability: In Stock

Ships same day if ordered by 12 pm
$66.15
$66.15
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Leviton CR20-WS is a commercial-grade narrow body straight blade duplex receptacle rated 20 A, 125 V for NEMA 5-20R installations. The device is self-grounding with side-wired terminals and a steel strap, and it accommodates 14-10 AWG conductors. It features thermoplastic body construction with brass/copper contacts, a 2000 V dielectric withstand, and an operating temperature range of -40 to +60 degrees C for commercial and institutional wall-mounted applications.

  • 20 A, 125 V NEMA 5-20R; 2-pole, 3-wire; accepts 14-10 AWG
  • Self-grounding design with side-wired termination and steel strap; brass/copper contacts
  • Thermoplastic body; 2000 V dielectric withstand; operating temperature -40 to +60 °C; meets UL498/CSA/ANSI/NEMA standards

Product Highlights

Commercial-grade narrow body duplex receptacle, self-grounding and side-wired, for NEMA 5-20R wall-mounted applications; accepts 14-10 AWG and rated for -40 to +60 °C.

Product Information

Standard Information

  • Brand: LEVITON
  • Manufacturer Part Number: CR20-WS
  • Country of Origin: United States
Technical Specifications
Brand
Leviton
MPN
CR20-WS
Replacement MPN
S02-0CR20-0WS
Voltage Rating
125 V
Amperage Rating
20 A
Receptacle Type
NEMA 5-20R (Straight blade duplex)
Poles
2
Wires
3
Body Type
Narrow body
Mounting
Wall
Wiring
Side wired
Grounding
Self-grounding
Material
Thermoplastic body; brass/copper contacts; steel strap
Wire Size
14-10 AWG
Operating Temperature
-40 to +60 °C
Dielectric Withstand
2000 V
Standards/Certifications
UL 498 (File E13399); CSA C22.2 No. 42 (File 152105); ANSI C-73; NEMA WD-1 & WD-6; NOM 057; RoHS compliant
Dimensions
1.5 x 2 x 4.3 inches
Weight
1.6 ounces
AC Horsepower Rating
1 HP at rated voltage
Terminal Accommodation
14-10 AWG; large-head terminal screws accept No. 10 copper or copper-clad wire
Temperature Rise
Max 30 °C after 100 cycles OL at 150% rated current
Screw Terminal Torque
14-18 in-lbs
RoHS Compliant
Yes
Country of Origin
United States
UPC
078477070628
